Trilennium 3000 Series Multipoint Lock – 60mm Backset, Left Hand Inswing

Trilennium 3000 Series Multipoint Lock – 60mm Backset, Left Hand Inswing

SKU

$490.00 - $490.00
$490.00
$490.00 - $490.00
$490.00

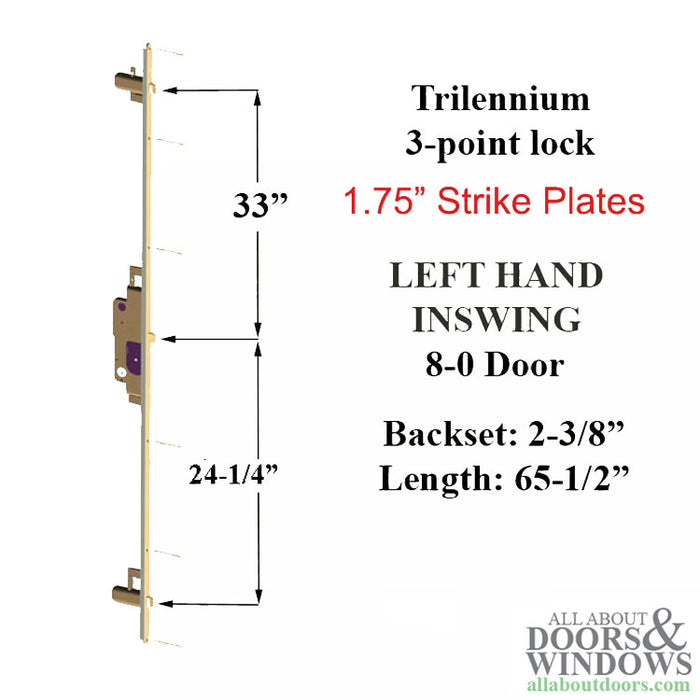

  • Backset: 2-3/8" (60mm)
  • PZ: Not specified - contact us for details
  • Faceplate Width: 1" (25.4mm)
  • Faceplate Length: 65-1/2" (1664.7mm) with radius ends
  • Deadbolt Throw: 15/16" (23.8mm)
  • Top Latching Bolt: 33" (838.2mm) from center bolt
  • Bottom Latching Bolt: 24-1/4" (615.9mm) from center bolt
  • Handing: Left-hand inswing door
  • Cylinder Type: American with flat tailpiece (not included)
  • Faceplate Finishes Available: Polished Brass, Victorian Bronze, Stainless Steel
  • Spindle Diameter: 1/4" (7mm)
  • Panic release function - pressing inside handle unlocks door
  • Strike kit and accessories included
  • Made in USA
  • Priced and sold each - lock assembly only, no additional hardware
Limited Inventory
Visa Mastercard American Express Discover
Estimated Delivery
Between December 13 and December 17
*Delivery dates are estimates and may vary based on availability and shipping method

Trilennium 3000 Multipoint Lock – 60mm Backset, Left Hand (499130013)

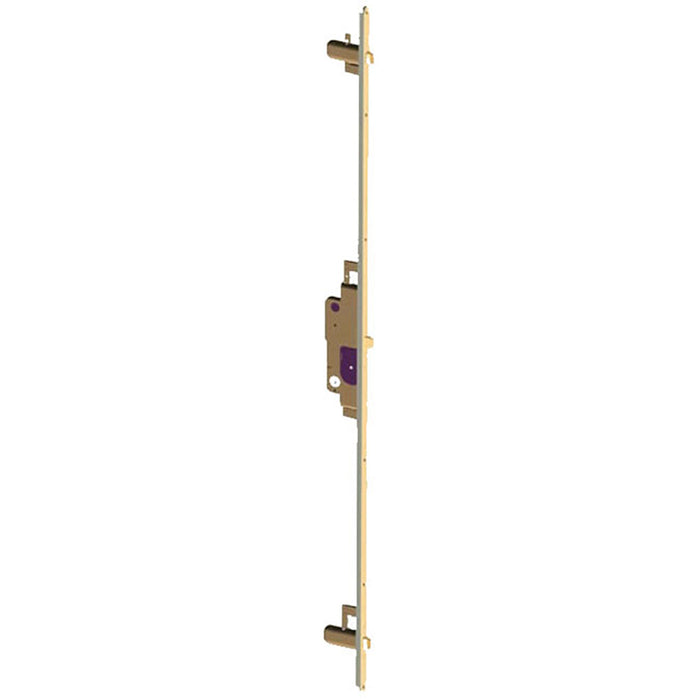

The Trilennium 3000 Series Multi-Point Lock provides secure, three-point locking with locking latch bolts for enhanced door security. This lock features a center deadbolt with top and bottom latching bolts that engage simultaneously when locked, distributing force across multiple points along the door frame.

This lock is configured for left-hand inswing doors. Handing is determined by viewing the door from outside - if the hinge is on the left side, it is a left-hand door. All locks in this series are set up for inswing doors. If you have an outswing door, the panic function needs to be checked before installation.

The lock operates with a handle that moves down only. To lock, use the key or thumb turn to extend the latch to deadbolt function. To unlock from outside, use the key. From inside, use the thumb turn or lever. The panic release feature allows the door to be unlocked by pressing down on the inside handle.

Technical Information

  • Backset: 2-3/8 inches (60mm)
  • Faceplate Width: 1 inch (25.4mm)
  • Faceplate Length: 65-1/2 inches (1664.7mm) with radius ends
  • Deadbolt Throw: 15/16 inch (23.8mm)
  • Top Latching Bolt Position: 33 inches (838.2mm) from center bolt
  • Bottom Latching Bolt Position: 24-1/4 inches (615.9mm) from center bolt
  • Spindle Diameter: 1/4 inch (7mm)
  • Cylinder Type: American with flat tailpiece (not included)
  • Handing: Left-hand inswing
  • Country of Origin: Made in USA

Notes

  • Standard Trilennium Cross Bore: 2-1/8 inches - use with Pinnacle, Eclipse, and Grip hardware
  • Optional Cross Bore: 1-11/16 inches - use with Europa, Horizon, and Emtek hardware
  • The Horizon and Europa plates are only 1-7/8 inches wide and will not cover the 2-1/8 inch cross bore used on Pella and other doors with larger holes
  • Available Faceplate Finishes: Polished Brass, Victorian Bronze, Stainless Steel

Priced and sold each. Lock assembly only - no additional hardware included. Strike kit and accessories are included.

Fill out our MPL form or call us to ensure accurate purchasing and correct fit.

Frequently Asked Questions

How do I determine if this lock fits my door handing?

View your door from outside - if the hinge is on the left side, you have a left-hand door. This lock is configured for left-hand inswing doors.

What is the panic release feature?

The panic release allows you to unlock the door by simply pressing down on the inside handle, providing quick egress in emergency situations.

What cross bore size do I need for this lock?

The standard Trilennium cross bore is 2-1/8 inches for use with Pinnacle, Eclipse, and Grip hardware. An optional 1-11/16 inch cross bore works with Europa, Horizon, and Emtek hardware.
