Trilennium 3000 Series Multipoint Lock – 60mm Backset, Victorian Bronze

Trilennium 3000 Series Multipoint Lock – 60mm Backset, Victorian Bronze

SKU 499130008-VB

$510.35 - $510.35
$510.35
$510.35 - $510.35
$510.35
  • Backset: 2-3/8" (60mm)
  • PZ: Not specified - contact us for details
  • Faceplate Width: 1" (25.4mm)
  • Faceplate Length: 85-3/4" (2178mm) with radius ends
  • Deadbolt Throw: 15/16" (23.8mm)
  • Top Latching Bolt: 53-1/2" (1358.9mm) from center bolt
  • Bottom Latching Bolt: 24-1/4" (615.9mm) from center bolt
  • Finish: Victorian Bronze
  • Cylinder Type: American with flat tailpiece (not included)
  • Spindle Diameter: 1/4" (7mm)
  • Handing: Right-hand inswing (reversible)
  • Panic Release: Yes - inside handle unlocks door
  • Standard Crossbore: 2-1/8" (for Pinnacle, Eclipse & Grip hardware)
  • Optional Crossbore: 1-11/16" (for Europa, Horizon or Emtek hardware)
  • Lock assembly only - strike kit and accessories ordered separately
  • Priced and sold each
Visa Mastercard American Express Discover
Estimated Delivery
Between December 13 and December 17
*Delivery dates are estimates and may vary based on availability and shipping method

Trilennium 3000 Multipoint Lock – 60mm Backset, Victorian Bronze (499130008-VB)

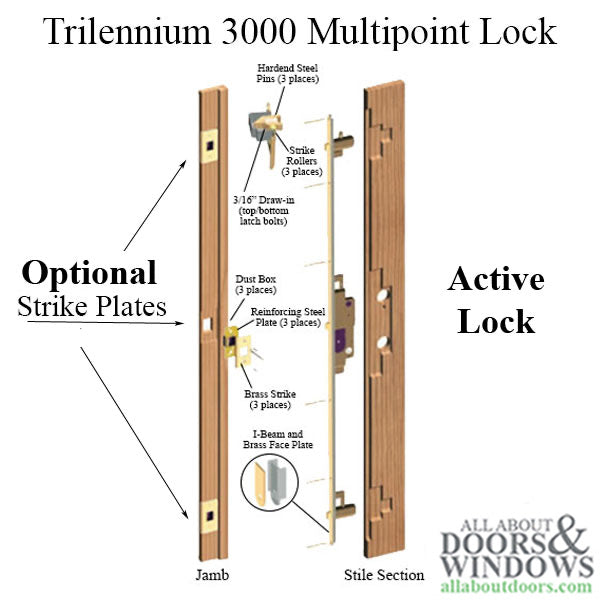

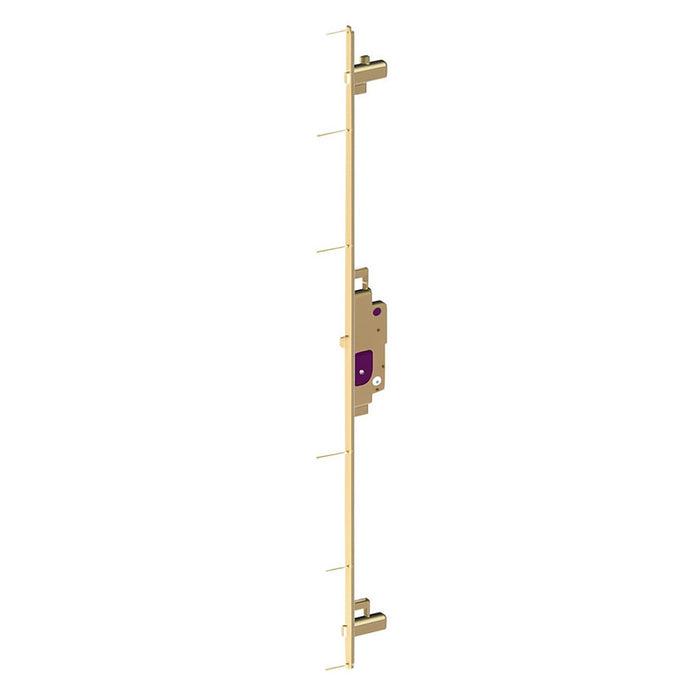

The Trilennium 3000 Series Multi-Point Lock with locking latch bolts provides secure, three-point locking for residential entry doors. This lock features a 2-3/8 inch (60mm) backset and comes in a Victorian Bronze finish. The 85-3/4 inch faceplate with radius ends accommodates standard door heights.

This multipoint lock operates with a downward handle motion. To lock, use the key or thumb turn to extend the latch to deadbolt function. To unlock from outside, use the key; from inside, use the thumb turn or lever. The panic release feature allows the inside handle to unlock the door when pressed down.

Technical Information

  • Backset: 2-3/8 inches (60mm)
  • Faceplate Width: 1 inch (25.4mm)
  • Faceplate Length: 85-3/4 inches (2178mm)
  • Faceplate Style: Radius ends
  • Deadbolt Throw: 15/16 inch (23.8mm)

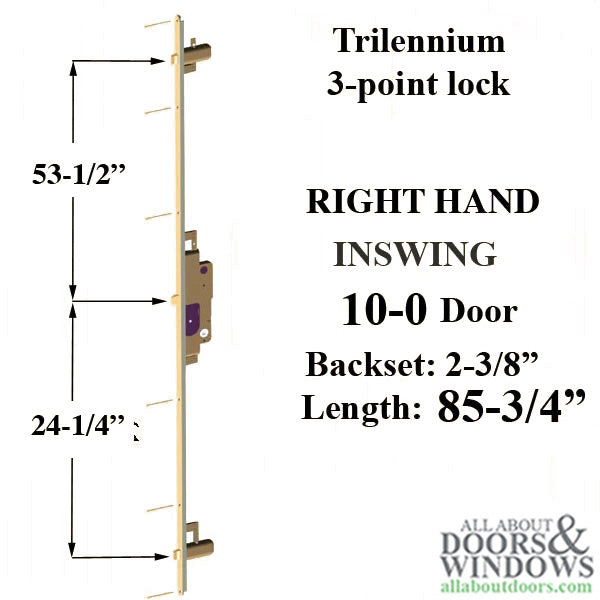

  • Top Latching Bolt Position: 53-1/2 inches (1358.9mm) from center bolt
  • Bottom Latching Bolt Position: 24-1/4 inches (615.9mm) from center bolt
  • Spindle Diameter: 1/4 inch (7mm)
  • Cylinder Type: American with flat tailpiece (not included)
  • Standard Crossbore: 2-1/8 inches
  • Optional Crossbore: 1-11/16 inches

Notes

  • All locks are set up for inswing doors. If you have an outswing door, the panic function needs to be checked before installation.

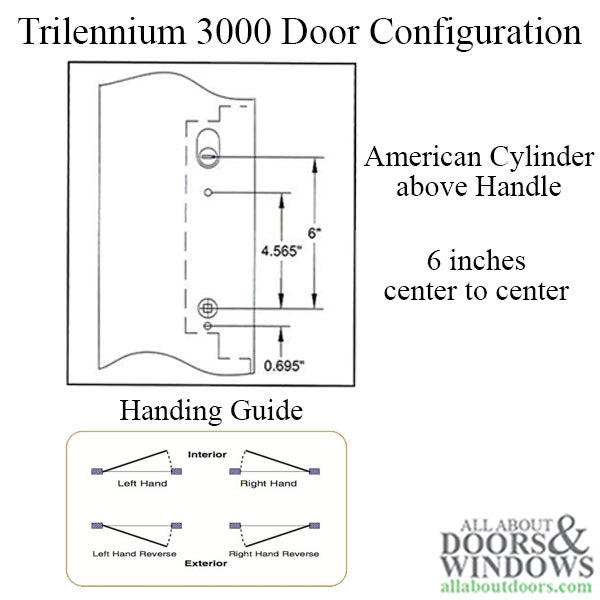

  • Handing is determined by viewing from outside - if the hinge is on the right, it is a right-hand door.
  • This lock is reversible - see video for instructions.
  • Standard 2-1/8 inch crossbore works with Pinnacle, Eclipse & Grip hardware.
  • Optional 1-11/16 inch crossbore works with Europa, Horizon or Emtek hardware.
  • Horizon and Europa plates are only 1-7/8 inches wide and will not cover the 2-1/8 inch crossbore used on Pella and other doors with larger holes.

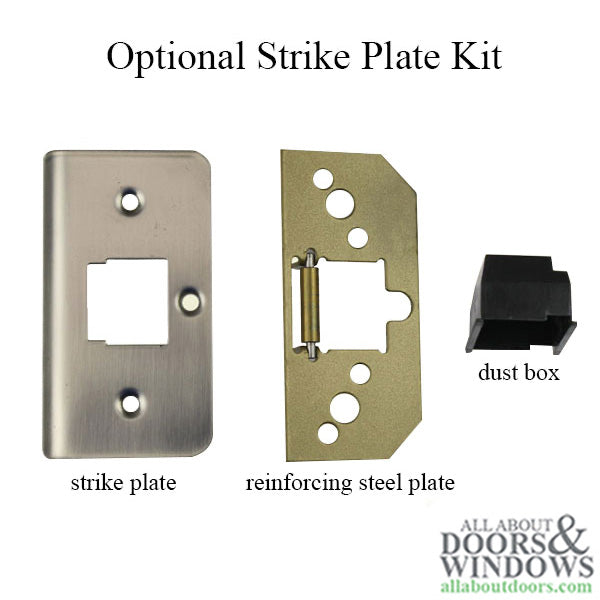

  • Strike kit and accessories not included - ordered separately.

Priced and sold each. Lock assembly only, no additional hardware included.

Fill out our MPL form or call us to ensure accurate purchasing and correct fit.

Frequently Asked Questions

How do I determine the handing for this lock?

View the door from outside - if the hinge is on the right side, it is a right-hand door. This lock comes set for right-hand inswing but is reversible.

What cylinder does this lock require?

This lock uses an American cylinder with a flat tailpiece. The cylinder is not included and must be ordered separately.

Can I use this lock on an outswing door?

Yes, but all locks ship set up for inswing doors. The panic function must be checked and adjusted before installation on outswing doors.
