Trilennium 3000 Series Multipoint Lock for 9' Doors – 60mm Backset

Trilennium 3000 Series Multipoint Lock for 9' Doors – 60mm Backset

SKU

$589.54 - $608.38
$589.54
$589.54 - $608.38
$589.54
  • Backset: 2-3/8" (60mm)
  • PZ: Not specified in product data
  • Door Height: For 9' doors
  • Faceplate Width: 1" (25.4mm)
  • Faceplate Length: 75-3/8" (1921mm) with radius ends
  • Deadbolt Throw: 15/16" (23.8mm)
  • Top Latching Bolt: 43-5/32" (1096mm) from center bolt
  • Bottom Latching Bolt: 24-1/4" (616mm) from center bolt
  • Cylinder Type: American with flat tailpiece (not included)
  • Spindle Diameter: 1/4" (7mm)
  • Faceplate Finishes: Polished Brass, Victorian Bronze, Stainless Steel
  • Handing: Right-handed (reversible)
  • Panic Release: Yes, pressing inside handle unlocks door

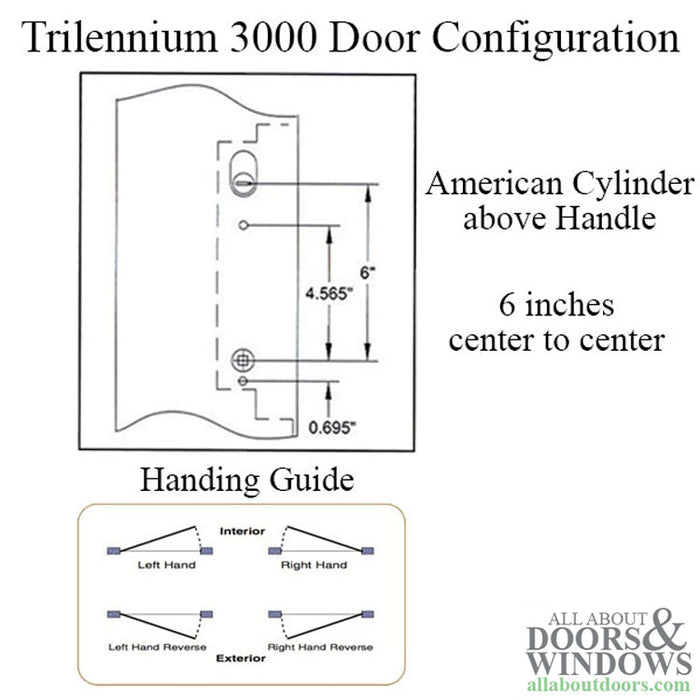

  • Cross Bore: Standard 2-1/8" (use Pinnacle, Eclipse & Grip Hardware) or optional 1-11/16" (use Emtek hardware)
  • Lock assembly only, no additional hardware included
  • Priced and sold each
Visa Mastercard American Express Discover
Estimated Delivery
Between December 13 and December 17
*Delivery dates are estimates and may vary based on availability and shipping method

Trilennium 3000 Multipoint Lock – 9' Door, 60mm Backset (499130006)

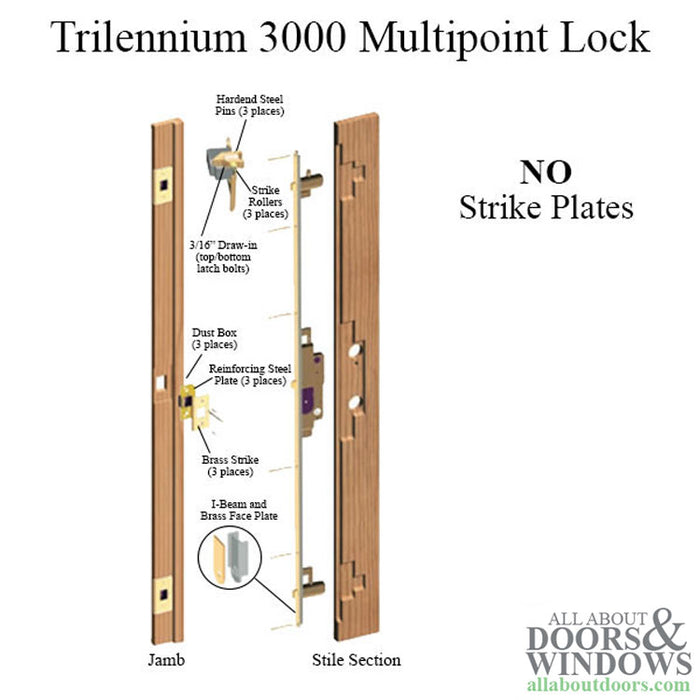

The Trilennium 3000 Series Multi-Point Lock with locking latch bolts is designed for 9-foot doors. This multipoint lock features a 2-3/8 inch (60mm) backset and includes both top and bottom latching bolts for enhanced security.

The lock operates with a downward handle motion. To lock, use the key or thumb turn to extend the latch to deadbolt function. To unlock from outside, use the key; from inside, use the thumb turn or lever. The panic release feature allows you to unlock the door by pressing down on the inside handle.

Technical Information

  • Backset: 2-3/8 inches (60mm)
  • Door Height: 9 feet
  • Faceplate Width: 1 inch (25.4mm)
  • Faceplate Length: 75-3/8 inches (1921mm) with radius ends
  • Deadbolt Throw: 15/16 inch (23.8mm)

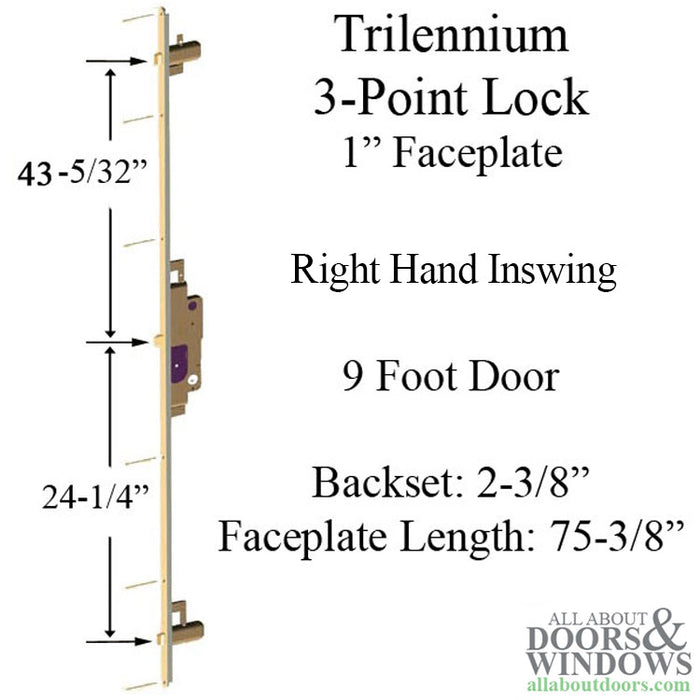

  • Top Latching Bolt Position: 43-5/32 inches (1096mm) from center bolt
  • Bottom Latching Bolt Position: 24-1/4 inches (616mm) from center bolt
  • Spindle Diameter: 1/4 inch (7mm)
  • Cylinder Type: American with flat tailpiece (not included)
  • Standard Cross Bore: 2-1/8 inches (compatible with Pinnacle, Eclipse & Grip Hardware)
  • Optional Cross Bore: 1-11/16 inches (compatible with Emtek hardware)

Notes

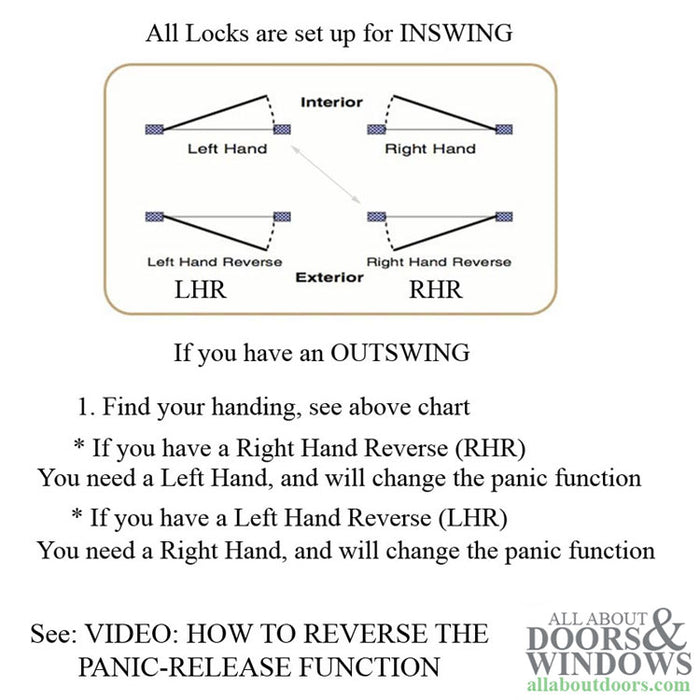

  • All locks are set up for inswing doors. If you have an outswing door, the panic function needs to be checked before installation.
  • Available in three faceplate finishes: Polished Brass, Victorian Bronze, and Stainless Steel.
  • Right-handed as shipped but reversible for left-hand doors.
  • The Horizon and Europa plates are only 1-7/8 inches wide and will not cover the 2-1/8 inch cross-bore used on Pella and other doors with larger holes.

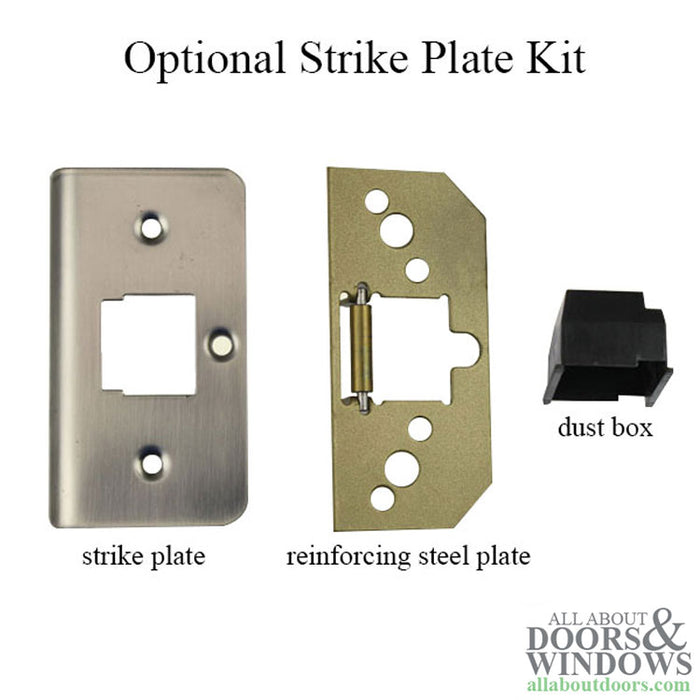

  • Strike kit and accessories not included (order 499130054 separately).

Related Parts

Priced and sold each. Lock assembly only, no additional hardware included.

Fill out our MPL form or call us to ensure accurate purchasing and correct fit.

Frequently Asked Questions

Can this lock be used on a left-hand door?

Yes, the lock ships as right-handed but is reversible for left-hand doors. See the installation video for instructions on reversing the handing.

What cylinder does this lock require?

This lock uses an American cylinder with a flat tailpiece. The cylinder is not included and must be ordered separately.

Can I use this lock on an outswing door?

Yes, but all locks ship set up for inswing doors. If you have an outswing door, the panic function needs to be checked and adjusted before installation.
