Trilennium 3000 Series Multipoint Lock for 9' Doors – 60mm Backset

Trilennium 3000 Series Multipoint Lock for 9' Doors – 60mm Backset

SKU

$440.00 - $693.63
$440.00
$440.00 - $693.63
$440.00
  • Backset: 2-3/8" (60mm)
  • PZ: Not specified - contact us for details
  • Faceplate Width: 1" (25.4mm)
  • Faceplate Length: 75-3/8" (1921mm) with radius ends
  • Door Height: For 9' doors
  • Deadbolt Throw: 15/16" (23.8mm)

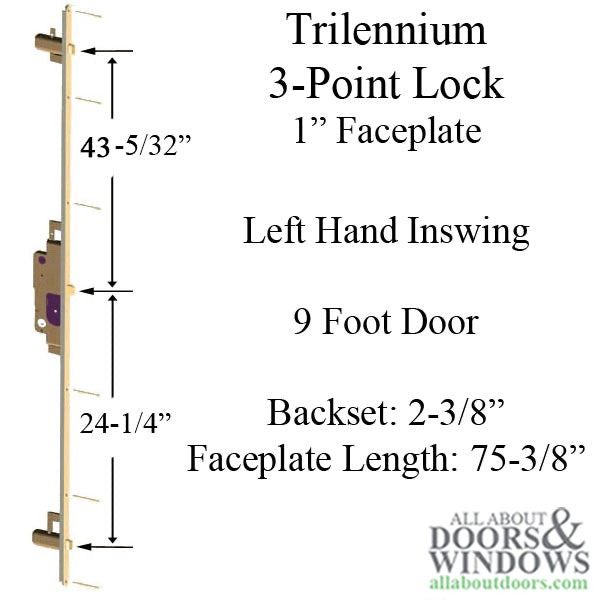

  • Top Latching Bolt: 43-5/32" (1096mm) from center bolt
  • Bottom Latching Bolt: 24-1/4" (616mm) from center bolt
  • Faceplate Finishes: Polished Brass, Victorian Bronze, Stainless Steel
  • Cylinder Type: American with flat tailpiece (not included)
  • Handing: Left-handed (reversible)
  • Crossbore: 2-1/8" standard (1-11/16" optional for Emtek hardware)
  • Panic release function - pressing inside handle unlocks door
  • Set up for inswing doors - check panic function for outswing
  • Strike kit and accessories ordered separately (499130054)
  • Priced and sold each, lock assembly only
Visa Mastercard American Express Discover
Estimated Delivery
Between December 13 and December 17
*Delivery dates are estimates and may vary based on availability and shipping method

Trilennium 3000 Multipoint Lock – 9' Door, 60mm Backset (499130005)

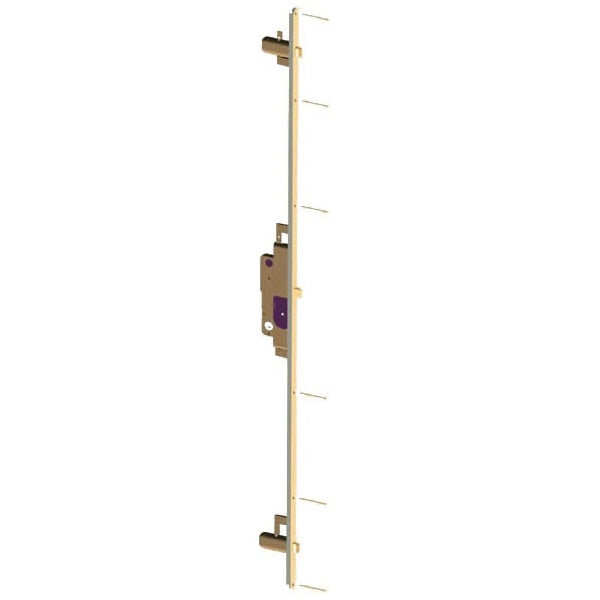

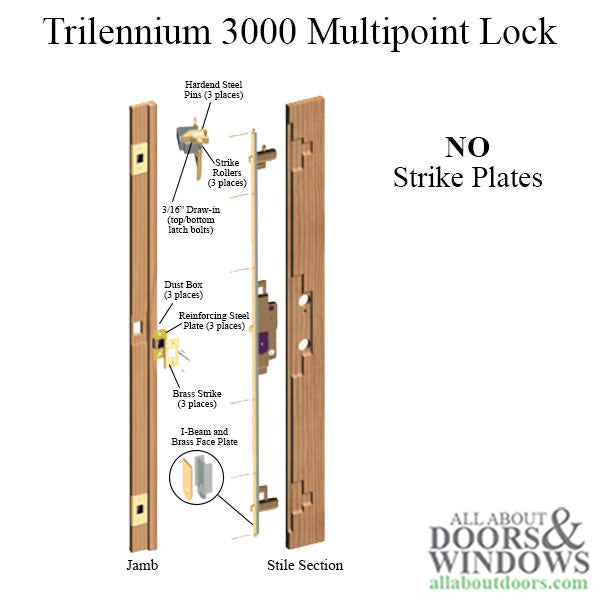

The Trilennium 3000 Series Multi-Point Lock with locking latch bolts is designed for 9-foot doors. This multipoint lock features a 2-3/8 inch (60mm) backset and includes both top and bottom latching bolts for secure three-point locking.

The lock comes with a 1-inch wide faceplate measuring 75-3/8 inches in length with radius ends. Available in three finishes: Polished Brass, Victorian Bronze, and Stainless Steel. The deadbolt throw measures 15/16 inch for solid engagement with the strike.

This lock is configured for inswing doors. If you have an outswing door, the panic function must be checked before installation. The panic release feature allows the inside handle to unlock the door when pressed down, providing emergency egress.

Technical Information

  • Backset: 2-3/8 inches (60mm)
  • Door Height: 9 feet
  • Faceplate Width: 1 inch (25.4mm)
  • Faceplate Length: 75-3/8 inches (1921mm)
  • Faceplate Style: Radius ends
  • Deadbolt Throw: 15/16 inch (23.8mm)
  • Top Latching Bolt Position: 43-5/32 inches (1096mm) from center bolt
  • Bottom Latching Bolt Position: 24-1/4 inches (616mm) from center bolt
  • Spindle Diameter: 1/4 inch (7mm)
  • Cylinder Type: American with flat tailpiece (not included)
  • Standard Crossbore: 2-1/8 inches (for Pinnacle, Eclipse & Grip hardware)
  • Optional Crossbore: 1-11/16 inches (for Emtek hardware)
  • Handing: Left-handed (reversible)
  • Operation: Handle moves down only

Notes

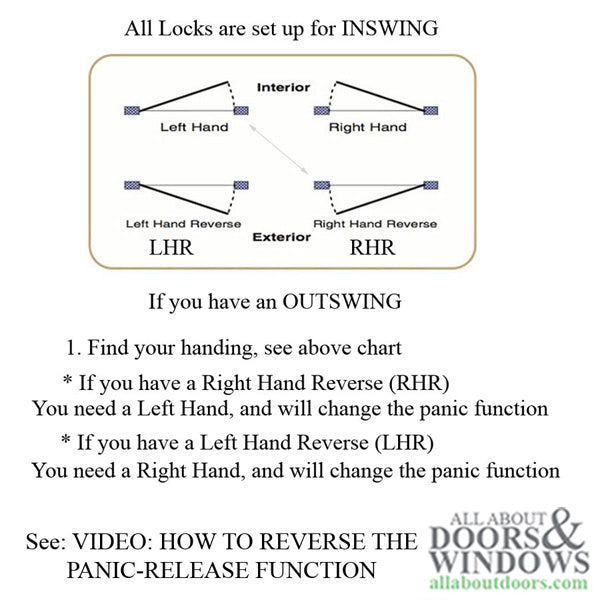

  • All locks are set up for inswing doors - outswing installations require panic function verification
  • Handing determined by hinge location as viewed from outside - hinge on left means left-hand door
  • To lock: Use key or thumb turn to extend latch to deadbolt function
  • To unlock: Use key outside or thumb turn/lever inside
  • Horizon and Europa plates are only 1-7/8 inches wide and will not cover the 2-1/8 inch crossbore used on Pella and other doors with larger holes
  • Available finishes: Polished Brass, Victorian Bronze (Bronze), Stainless Steel

Related Parts

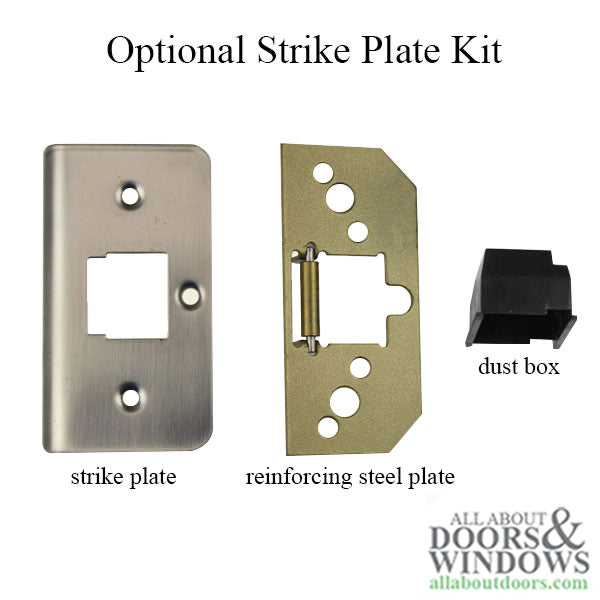

  • 499130054 - Strike kit and accessories (ordered separately)

Priced and sold each. Lock assembly only, no additional hardware included.

Fill out our MPL form or call us to ensure accurate purchasing and correct fit.

Frequently Asked Questions

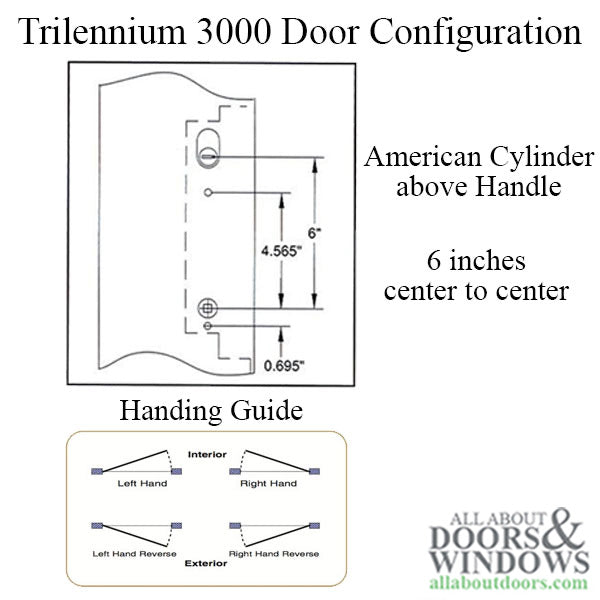

How do I determine the handing for this lock?

As viewed from outside the door, the hinge location determines handing. If the hinge is on the left side, it is a left-hand door. This lock is reversible if you need to change the handing.

Can I use this lock on an outswing door?

Yes, but all locks are set up for inswing doors by default. For outswing installations, the panic function must be checked and verified before installation.

What handleset hardware is compatible with this lock?

The standard 2-1/8 inch crossbore works with Pinnacle, Eclipse, and Grip hardware. An optional 1-11/16 inch crossbore is available for Emtek hardware. Note that Horizon and Europa plates will not cover the larger 2-1/8 inch crossbore.
