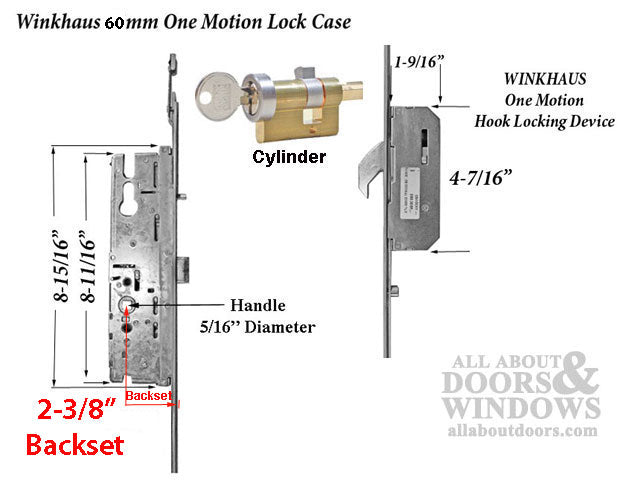

WinkHaus One Motion Lock (OML) – 60mm Backset, 92mm PZ, 81-1/2" Door

WinkHaus One Motion Lock (OML) – 60mm Backset, 92mm PZ, 81-1/2" Door

SKU: 499116399

  • PZ (Handle to Cylinder): 3-5/8" (92mm)
  • Backset: 2-3/8" (60mm)
  • Faceplate Width: 13/16" (20mm)
  • Handle Height: 36" (914mm)
  • Key Position: Key Above Handle
  • Key Cylinder: Special Design, Schlage keyway SC1, 5 Pin
  • Locking Devices: Tongue Version Lock with 7/8" projection
  • Overall Door Panel Height: 81-1/2" (2070mm)
  • Top Hook Position: 27.6" (702mm) from handle
  • Bottom Hook Position: 27.2" (691mm) from handle
  • Faceplate Length: 81-1/2" (same as door panel, no sweep)
  • Stamped on Lock Case: TTX 6092
  • Compatible Door Brands: Manco, Milgard Fiberglass Door, and others
  • One Motion Lock (OML) with automatic retraction of hooks and deadbolt when handle is depressed
  • Status: Discontinued – Replacement available
This product has been discontinued and is no longer available
Not sure this is the right part?
Before you order, if you'd like confidence this is the right part for your job, please fill out our multipoint lock identifier form or call us at (816) 221-6543 .
*We have a fully-staffed customer support team happy to help!

WinkHaus OML Multipoint Lock – 60/92 (499116399)

This product has been discontinued. A replacement is available – please fill out our MPL form or call us to find the correct replacement for your door.

The WinkHaus One Motion Lock (OML) is a multipoint locking system featuring automatic retraction of hooks and deadbolt when the handle is depressed. This lock is designed for doors with a panel height of 81-1/2 inches (2070mm) and features a tongue version lock with 7/8 inch projection.

This lock uses a special design key cylinder with Schlage keyway SC1 (5 pin) and has the key positioned above the handle. It is compatible with Manco, Milgard Fiberglass Door, and other door brands.

Stamped With

  • TTX 6092 (on lock case)

Technical Information

  • PZ (Handle to Cylinder): 3-5/8 inches (92mm)
  • Backset: 2-3/8 inches (60mm)
  • Faceplate Width: 13/16 inch (20mm)
  • Handle Height: 36 inches (914mm)
  • Overall Door Panel Height: 81-1/2 inches (2070mm)
  • Faceplate Length: 81-1/2 inches (same as door panel, no sweep)
  • Top Hook Position: 27.6 inches (702mm) from handle
  • Bottom Hook Position: 27.2 inches (691mm) from handle
  • Locking Devices: Tongue Version Lock (7/8 inch projection)
  • Key Cylinder: Special Design, Schlage keyway SC1, 5 Pin
  • Key Position: Key Above Handle

Notes

  • Compatible with Manco, Milgard Fiberglass Door, and other door brands
  • The replacement faceplate is adjustable and fits doors ranging from 76.7 inches to 85.7 inches (1947mm to 2177mm)
  • The replacement will feature Key Below Handle, suitable for most applications
  • Lock can be re-handed – see WinkHaus multipoint lock re-handing instructions

Fill out our MPL form or call us to ensure accurate purchasing and correct fit.

Frequently Asked Questions

What does OML mean on this WinkHaus lock?

OML stands for One Motion Lock, which means the hooks and deadbolt automatically retract when you depress the handle, allowing you to open the door in a single motion.

How do I know if this is the right lock for my door?

Check for the marking TTX 6092 stamped on your existing lock case. Also verify your door panel height is 81-1/2 inches and your backset measures 2-3/8 inches from the door edge to the center of the handle bore.

Can this WinkHaus multipoint lock be re-handed?

Yes, WinkHaus multipoint locks can be re-handed. Contact us for instructions on how to reverse the handing of your lock.
