Winkhaus One Motion Lock Replacement for 8' Doors – 60mm Backset, 92mm PZ

SKU: 499116009

Sold out

$0.00 - $0.00

$0.00

$0.00 - $0.00

$0.00

Status: Winkhaus One Motion Lock (OML) is discontinued – replacement options available
Original Configuration: 3 hooks, key above
PZ: 92mm (3-5/8")
Backset: 60mm (2-3/8")
Faceplate Width: 20mm (25/32")
Original Handle Height: 36" (914mm)
Door Height Range: 82" - 101" (8' doors)
Replacement Configuration: 2 hooks, key below
New Handle Height: 38.559" (979mm)
Door Thickness: 45mm (1-3/4")
Finish: Stainless Steel (standard)
For single doors only – not compatible with double french doors
Existing handles may be reused if inverted (key below, lever above)

This part has been discontinued and is no longer available

Not sure this is the right part?

Before you order, if you'd like confidence this is the right part for your job, please fill out our multipoint lock identifier form or call us at (816) 221-6543 .

*We have a fully-staffed customer support team happy to help!

Product Details

Winkhaus OML Replacement – 60/92, 8' Door (499116009)

The Winkhaus One Motion Lock (OML) with 3 hooks and key above configuration has been discontinued. This listing provides information about the original lock specifications and the available replacement solution for 8-foot doors.

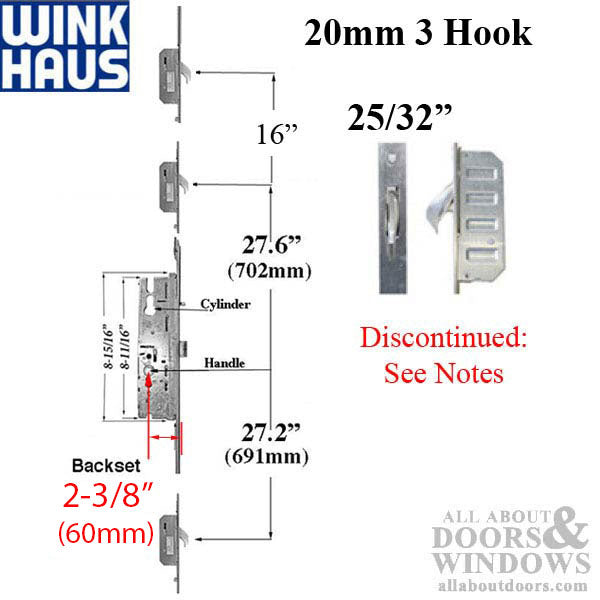

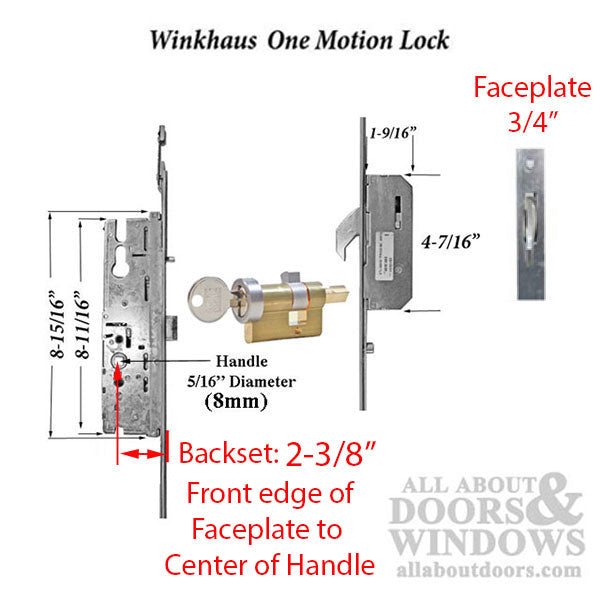

The original Winkhaus OML featured a 60mm (2-3/8 inches) backset, 92mm (3-5/8 inches) PZ, and a 20mm (25/32 inches) faceplate width. The handle height was positioned at 36 inches (914mm) from the bottom of the door. Hook positions were located at 27-1/4 inches (691mm), 27-5/8 inches (702mm), and 43-1/2 inches (1105mm) from the handle.

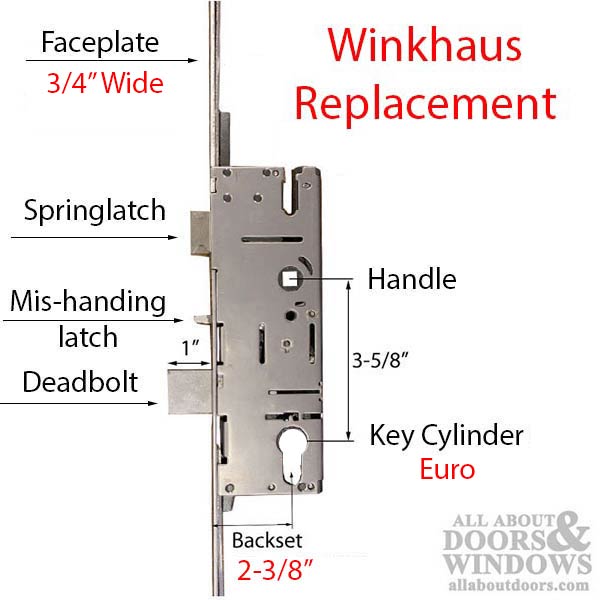

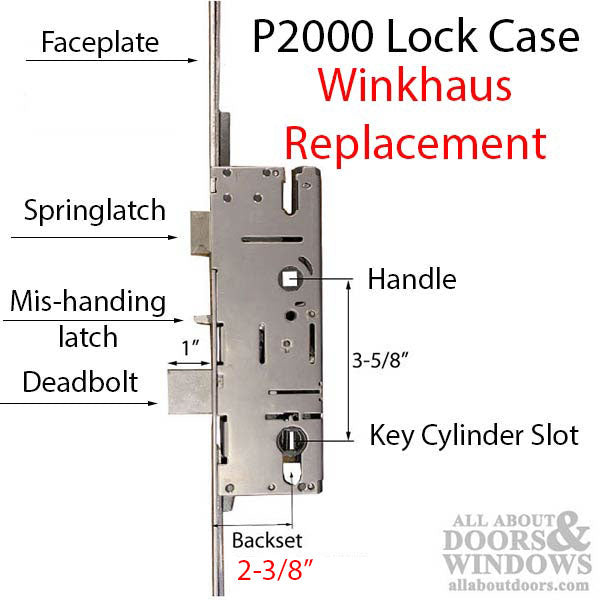

Replacement Information

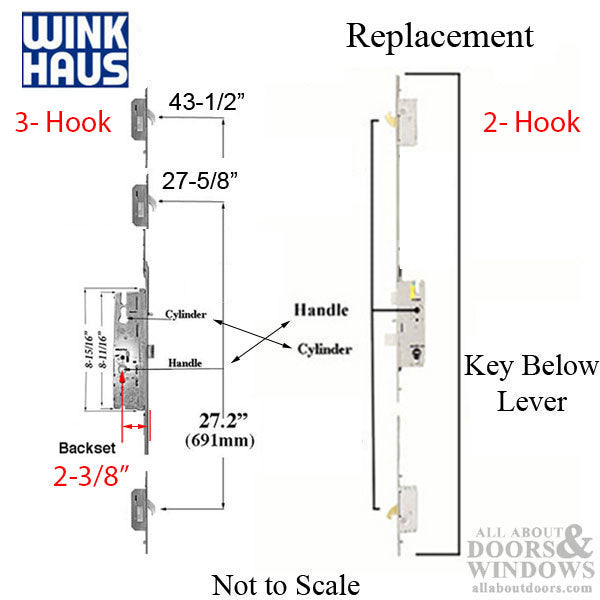

The replacement lock features 2 hooks with a key below configuration. The new handle height is 38.559 inches (979mm). This replacement is designed for doors with a thickness of 1-3/4 inches (45mm) and door heights ranging from 82 to 101 inches.

Technical Information

Original Manufacturer SKU: 499116009
PZ: 92mm (3-5/8 inches)
Backset: 60mm (2-3/8 inches)
Faceplate Width: 20mm (25/32 inches)
Door Thickness: 45mm (1-3/4 inches)
Door Height Range: 82 - 101 inches

Notes

This replacement is for single doors only and will not work as part of a double french door system
If reusing existing handles, the lock must be converted from American to Euro version and a new solid spindle is required
Most handle sets may be reused but must be inverted (key below, lever above)
Single doors require a new latch and deadbolt strike plate
Standard replacement finish is stainless steel – contact us if you require a different finish

Related Parts

499066009-Kit - Replacement Kit (American Version) for Single Door

Priced and sold each.

Fill out our MPL form or call us to ensure accurate purchasing and correct fit.

Frequently Asked Questions

Can I reuse my existing handles with the replacement lock?

Yes, most handle sets can be reused, but they must be inverted so the key is below and the lever is above. You will also need a new solid spindle and the lock must be converted from American to Euro version.

Will this replacement work on my double french doors?

No, this replacement is designed for single doors only and will not work as part of a double french door system.

What finish options are available for the strike plate?

The standard replacement comes with a stainless steel strike plate. Contact us if you require a different finish and we can assist with available options.
