Winkhaus One Motion Lock for Double Doors – 45mm Backset, 92mm PZ, Key Above

SKU: 499114522

Sold out

$0.00 - $0.00

$0.00

$0.00 - $0.00

$0.00

Status: Discontinued – see replacement kit #499064522

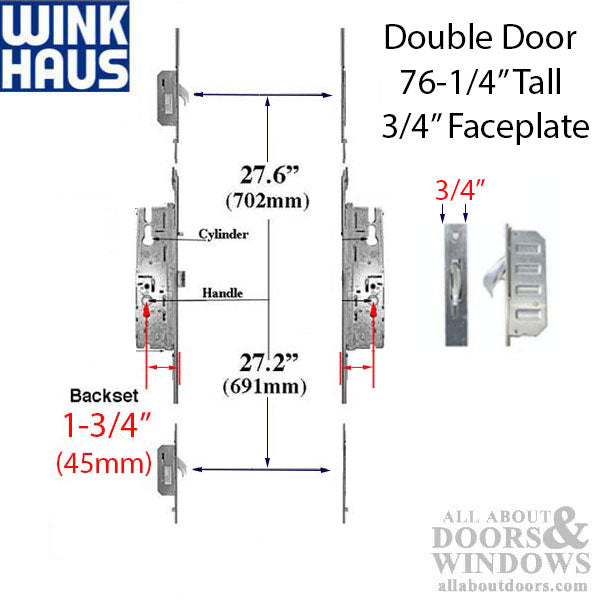

PZ: 3-5/8" (92mm)
Backset: 1-3/4" (45mm)
Faceplate Width: 3/4" (20mm)
Faceplate Length: 76-1/4" (1936.75mm)
Handle Height: 36" (914mm)
Top Hook Position: 27.6" (702mm) from handle center
Bottom Hook Position: 27.2" (691mm) from handle center
Hook Projection: 7/8" (22mm)
Door Panel Height: 76-1/4" (1936.75mm)
Key Position: Key above lever
Configuration: Double door – Active and Passive panels
Material: Stainless steel
Compatible Door Brands: Manco, Milgard Fiberglass Door, and others
Contact office for ordering replacement

Discontinued and no longer available

Not sure this is the right part?

Before you order, if you'd like confidence this is the right part for your job, please fill out our multipoint lock identifier form or call us at (816) 221-6543 .

*We have a fully-staffed customer support team happy to help!

Product Details

Winkhaus OML Double Door Lock – 45/92 (499114522)

This Winkhaus One Motion Lock (OML) multipoint system has been discontinued. A replacement kit is available – see part #499064522. Please contact our office for ordering assistance.

This lock features key-above-lever operation with automatic retraction of hooks and deadbolt when the inside handle is depressed. The system is designed for double door applications, including both active and passive panels.

Technical Information

PZ (Handle to Cylinder Center): 3-5/8 inches (92mm)

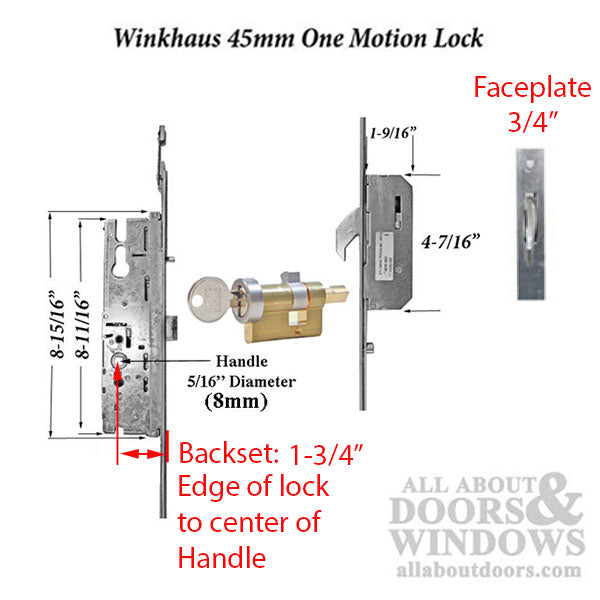

Backset: 1-3/4 inches (45mm)
Faceplate Width: 3/4 inch (20mm)
Faceplate Length: 76-1/4 inches (1936.75mm)
Handle Height: 36 inches (914mm)

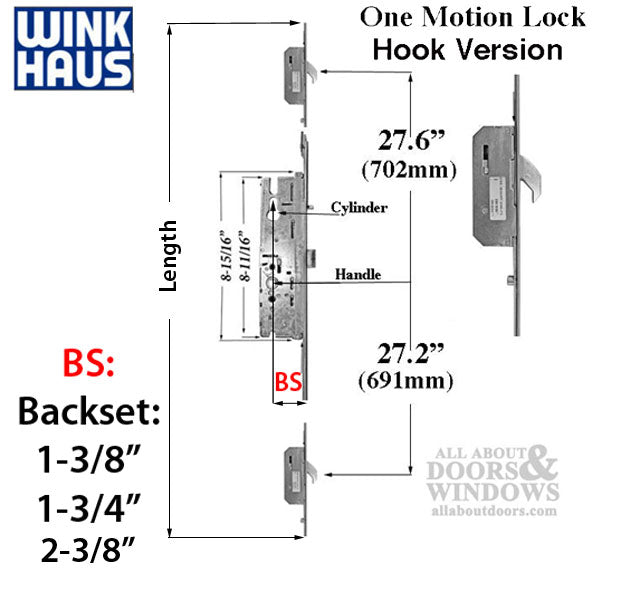

Top Hook Position: 27.6 inches (702mm) from handle center
Bottom Hook Position: 27.2 inches (691mm) from handle center
Hook Projection: 7/8 inch (22mm)
Door Panel Height: 76-1/4 inches (1936.75mm) – no sweep
Material: Stainless steel
Locking Devices: Hook type locks

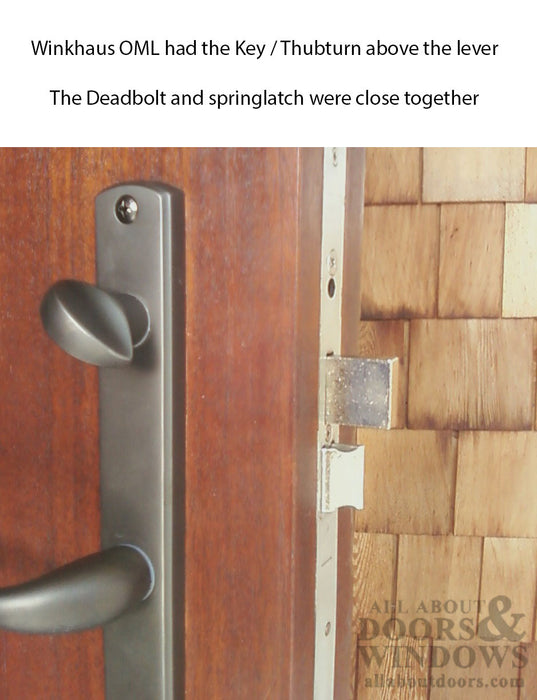

Key Position: Key above lever
Configuration: Double door (Active and Passive panels)

Notes

Compatible with Manco, Milgard Fiberglass Door, and other door brands
One Motion Lock (OML) design – automatic retraction of hooks and deadbolt when inside handle is depressed

Replaces / Replaced by

Replaced by kit #499064522

Contact our office for ordering the replacement kit.

Fill out our MPL form or call us to ensure accurate purchasing and correct fit.

Frequently Asked Questions

What is the replacement for this discontinued Winkhaus lock?

The replacement kit is part #499064522. Contact our office for ordering assistance.

What does One Motion Lock (OML) mean?

OML means the hooks and deadbolt automatically retract when the inside handle is depressed, allowing you to open the door in one motion.

What door brands is this lock compatible with?

This lock is compatible with Manco, Milgard Fiberglass Door, and other door brands that use the same specifications.
