Winkhaus One Motion Multipoint Lock – 60mm Backset, 92mm PZ, 36" Handle Height

Winkhaus One Motion Multipoint Lock – 60mm Backset, 92mm PZ, 36" Handle Height

SKU: 499111599

  • PZ: 3-5/8" (92mm)
  • Backset: 2-3/8" (60mm)
  • Faceplate Width: 13/16" (20mm)
  • Handle Height: 36" (914mm)
  • Key Position: Key Above Handle
  • Key Cylinder: Special Design, Schlage keyway SC1, 5 Pin
  • Locking Devices: Tongue Version Lock with 7/8" (22mm) projection
  • Overall Door Panel Height: 81-1/2" (2070mm)
  • Top Tongue Position: 27.638" (702mm)
  • Bottom Tongue Position: 27.205" (691mm)
  • Stamped: TTX 6092
  • Compatible Door Brands: Manco, Milgard Fiberglass Door, and others
  • One Motion Lock (OML) with automatic retraction of tongue hooks and deadbolt when handle is depressed
  • Status: Discontinued
This product has been discontinued and is no longer available
Not sure this is the right part?
Before you order, if you'd like confidence this is the right part for your job, please fill out our multipoint lock identifier form or call us at (816) 221-6543 .
*We have a fully-staffed customer support team happy to help!

Winkhaus OML Multipoint Lock – 60/92 (499111599)

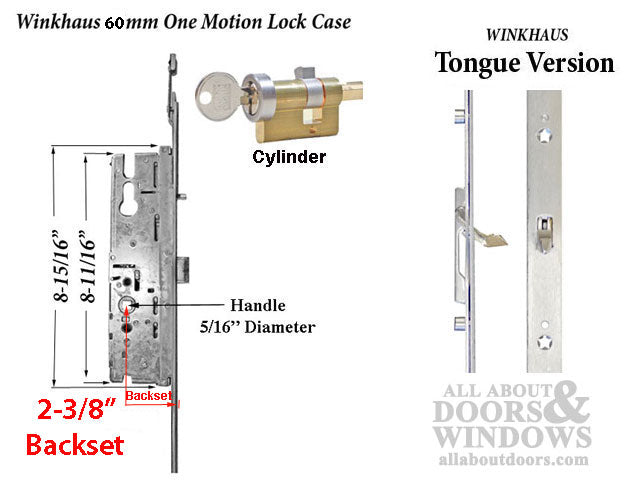

This Winkhaus One Motion Lock (OML) multipoint lock features automatic retraction of tongue hooks and deadbolt when the handle is depressed, providing smooth single-motion operation for entry doors.

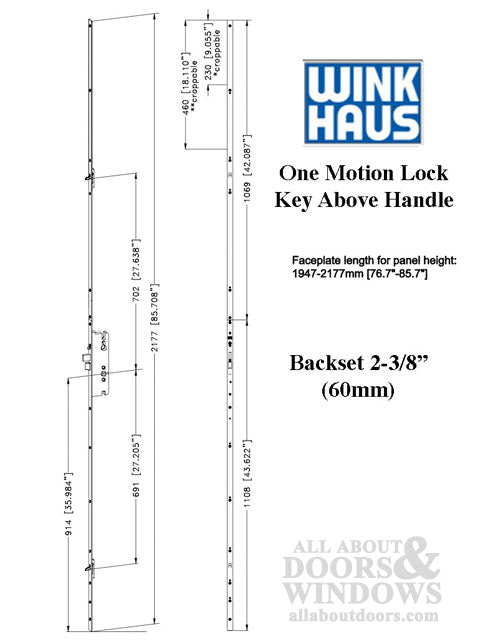

The lock case has a 2-3/8 inch (60mm) backset and 3-5/8 inch (92mm) PZ measurement. The faceplate is 13/16 inch (20mm) wide and 81-1/2 inches (2070mm) in overall length, matching the door panel height. The handle height is positioned at 36 inches (914mm).

This tongue version lock provides 7/8 inch (22mm) projection. The top tongue is positioned at 27.638 inches (702mm) and the bottom tongue at 27.205 inches (691mm) from center. The key cylinder uses a special design with Schlage keyway SC1, 5 pin configuration, with the key positioned above the handle.

The faceplate was originally croppable to fit doors ranging from 76.7 inches to 85.7 inches (1947-2177mm). Faceplate support pins project 3/8 inch or 1/2 inch with the faceplate. The spring latch sits 13/16 inch above center of handle, with 3-1/16 inches to the top of the deadbolt latch.

Stamped With

  • TTX 6092

Technical Information

  • Backset: 2-3/8 inches (60mm)
  • PZ (Handle/Cylinder): 3-5/8 inches (92mm)
  • Faceplate Width: 13/16 inch (20mm)
  • Faceplate Length: 81-1/2 inches (2070mm)
  • Handle Height: 36 inches (914mm)
  • Tongue Projection: 7/8 inch (22mm)
  • Top Tongue Position: 27.638 inches (702mm)
  • Bottom Tongue Position: 27.205 inches (691mm)
  • Key Cylinder: Schlage keyway SC1, 5 Pin
  • Key Position: Above Handle
  • Croppable Range: 76.7 - 85.7 inches (1947-2177mm)

Notes

  • Compatible with Manco, Milgard Fiberglass Door, and other door brands
  • Your door may have different measurements
  • Lock handing can be reversed - see Winkhaus handing reversal guide

Discontinued item.

Fill out our MPL form or call us to ensure accurate purchasing and correct fit.

Frequently Asked Questions

What does One Motion Lock (OML) mean?

One Motion Lock means the tongue hooks and deadbolt automatically retract when you depress the handle, allowing you to open the door with a single motion rather than multiple steps.

Can I reverse the handing on this Winkhaus multipoint lock?

Yes, the handing can be reversed. Winkhaus provides instructions for reversing the handing of their multipoint locks.

What key cylinder does this lock use?

This lock uses a special design cylinder with Schlage keyway SC1, 5 pin configuration.
