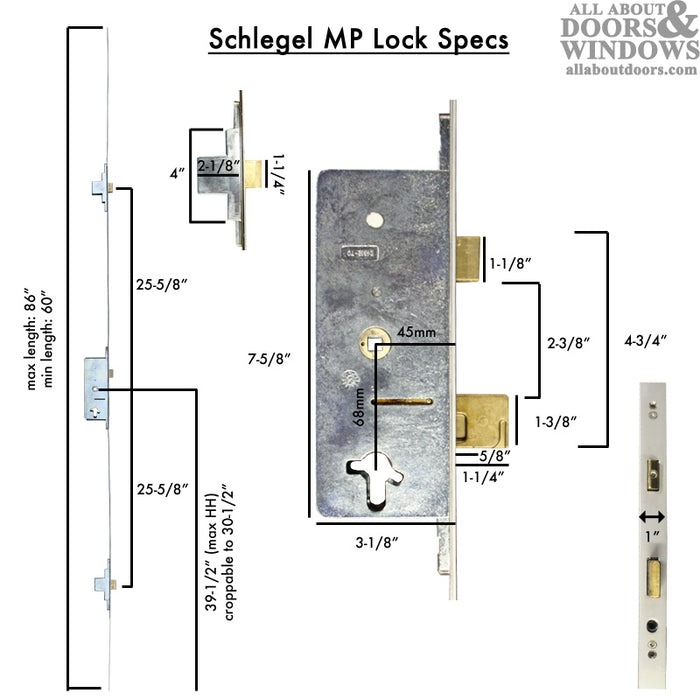

Schlegel 3-Point Multi-Bolt Lock – 45mm Backset, 68mm PZ, 86" Length (Discontinued)

Schlegel 3-Point Multi-Bolt Lock – 45mm Backset, 68mm PZ, 86" Length (Discontinued)

SKU: 499106099

  • Status: Discontinued – no longer available for purchase
  • PZ: 68mm
  • Backset: 45mm (1-3/4")
  • Faceplate Width: 1" (25.4mm)
  • Overall Length: 86" (2184mm) – croppable on top and bottom
  • Handle Height: 39-1/2" (1003mm)
  • Top Bolt Position: 25-5/8" (651mm) from cylinder center
  • Bottom Bolt Position: 25-5/8" (651mm) from cylinder center
  • Lock Body: 3-1/8" (79mm) deep x 7-5/8" (194mm) tall
  • Configuration: Center deadbolt/spring latch with 2 bolt locking devices
  • Replacement Kit: 4990283 (tongue version)
This product has been discontinued and is no longer available
Not sure this is the right part?
Before you order, if you'd like confidence this is the right part for your job, please fill out our multipoint lock identifier form or call us at (816) 221-6543 .
*We have a fully-staffed customer support team happy to help!

Schlegel 3-Point Multi-Bolt Lock – Discontinued (499106099)

This product has been discontinued and is no longer available for purchase. The Schlegel 3-Point Multi-Bolt Lock was an 86-inch bolt-version multipoint lock featuring a center deadbolt/spring latch combination with two additional bolt locking devices positioned 25-5/8 inches above and below the cylinder center.

If you currently have this lock installed, it must be replaced. We have developed a tongue version replacement kit specifically designed for this application.

Technical Information

  • Overall Length: 86 inches (2184mm)
  • Handle Height: 39-1/2 inches (1003mm)
  • Faceplate Width: 1 inch (25.4mm)
  • Top Bolt Position: 25-5/8 inches (651mm) from cylinder center
  • Bottom Bolt Position: 25-5/8 inches (651mm) from cylinder center
  • PZ (Handle-to-Cylinder Spacing): 68mm
  • Backset: 45mm
  • Lock Body Dimensions: 3-1/8 inches (79mm) deep x 7-5/8 inches (194mm) tall
  • Croppable: Yes, on both top and bottom (this may be your lock even if shorter than 86 inches)

Notes

  • Replacing this lock will require you to change or replace your handles
  • When replacing 55mm Schlegel locks, make sure to select 60mm backset on the drop-down menu when ordering the replacement lock

Replaces / Replaced by

  • 4990283 – Tongue version replacement kit for this discontinued lock

Related Parts

Fill out our MPL form or call us to ensure accurate purchasing and correct fit.

Frequently Asked Questions

What is the replacement for the discontinued Schlegel 3-Point Multi-Bolt Lock?

The replacement kit is part number 4990283, which is a tongue version replacement. Note that replacing this lock will require you to change or replace your handles.

How do I know if this is my lock if mine is shorter than 86 inches?

This lock is croppable on both the top and bottom, so even if your installed lock measures shorter than 86 inches, this may still be the correct match. Check the other measurements like PZ (68mm), backset (45mm), and bolt positions.

What does PZ mean on a multipoint lock?

PZ refers to the handle-to-cylinder spacing, which is the distance from the center of the handle to the center of the key cylinder. On this lock, the PZ measurement is 68mm.
