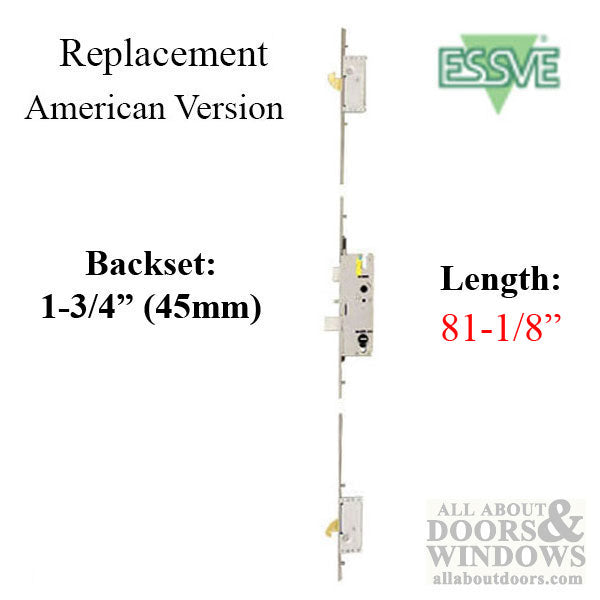

ESSVE Multipoint Lock Replacement Kit for 8'0" Doors – 45mm Backset, 92mm PZ

SKU: 4990618-KIT

$379.60 - $379.60

$379.60

$379.60 - $379.60

$379.60

PZ: 92mm (3-5/8")
Backset: 45mm (1-3/4")
Faceplate Width: 20mm (25/32")
Overall Length: 81" (2057mm), trimmable to 81-1/8"
Bottom Hook Position: 26" (660mm)
Top Hook Position: 45-3/4" (1162mm)
Lock Cylinder: American style
Door Size: 8'0" doors
Kit Includes: 20mm 45/92 lower gear with hook, 20mm upper extension with hook, stainless steel installation screws
Note: Replacement has square ends vs original radius ends
Sold as a complete kit

Not sure this is the right part?

Before you order, if you'd like confidence this is the right part for your job, please call us at (816) 221-6543 .

*We have a fully-staffed customer support team happy to help!

Product Details

ESSVE Multipoint Lock Kit – 8'0" Door (4990618-KIT)

This multipoint lock replacement kit is designed specifically for 8-foot doors originally equipped with ESSVE multipoint locking systems. The kit provides a complete solution for replacing worn or damaged ESSVE locks with compatible Amesbury components.

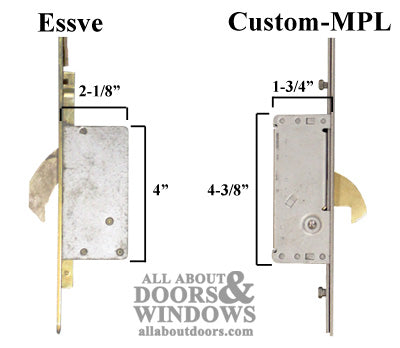

The replacement kit features square ends rather than the original radius ends, and can be trimmed to fit your specific door panel height requirements up to 81-1/8 inches. The gear and hook lock boxes are designed to fit back into the existing mortised groove in your door panel, minimizing installation complexity.

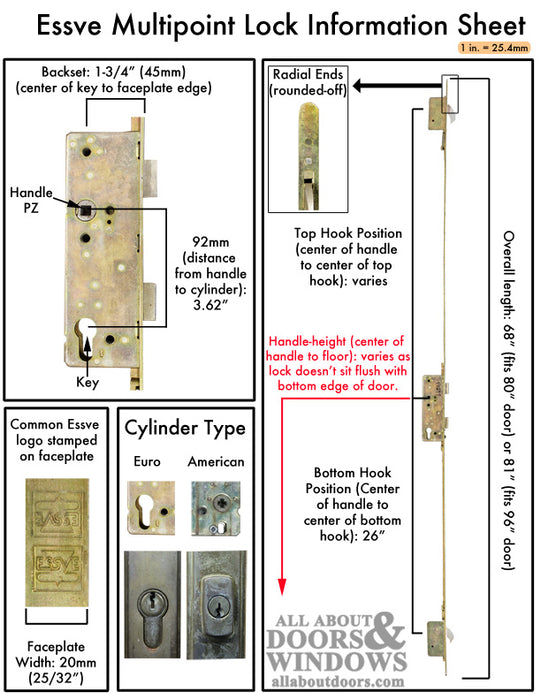

Technical Information

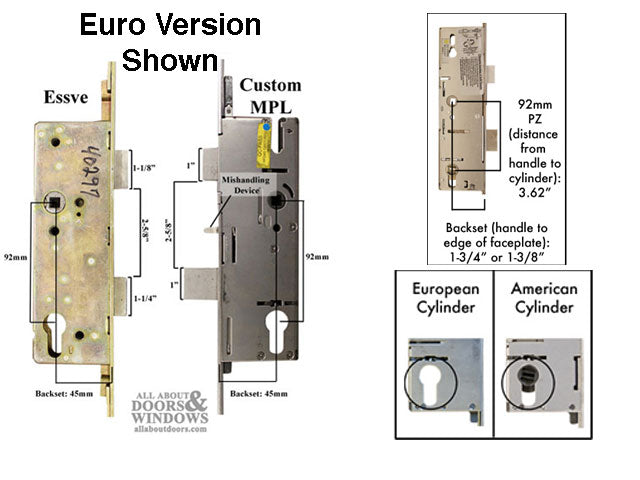

PZ (Handle Center to Cylinder Center): 92mm (3-5/8 inches)
Backset: 45mm (1-3/4 inches)
Faceplate Width: 20mm (25/32 inches)
Overall Length: 81 inches (2057mm)
Bottom Hook Position: 26 inches (replacement position)
Top Hook Position: 45-3/4 inches (replacement position)
Lock Cylinder Type: American style
Door Size: 8'0" (8 feet)

Kit Components

20mm 45/92 lower gear with hook at 26 inches
20mm upper extension with hook at 45-3/4 inches
Stainless steel installation screws

Notes

The hooks are positioned slightly differently than the original and may require enlarging the strike plate hole
Atrium Doors: The original handle set trim for Atrium (Euro Cylinder Version) will not work with this replacement; new trim is required
Marvin / Pease Doors: Original handle set trim with American Version lock has installation screw hole spacing of 6-3/8 inches. This trim will work with minor modifications to the lock body cylinder hole where the bottom screw goes through (slightly enlarge with a rasp)
Some Pease doors had different bore hole spacing with 2-3/8 inch wide handle set trim; contact us if this applies to your door
Reverse Lock Handing: Change the direction of the spring latch by first extending the deadbolt, then pull out the spring latch and rotate accordingly
Lock Operation: This lock has an anti-slam/mishandling latch that needs to be pushed in to operate the lock

Related Parts

395009 - Expressions 2 x 12 Series Hardware, Modern Square Top, Keyed
395007 - Expressions 2 x 12 Series Hardware, Traditional Arch Top, Keyed

Sold as a complete kit.

Fill out our MPL form or call us to ensure accurate purchasing and correct fit.

Frequently Asked Questions

Will this kit fit my original ESSVE lock mortise?

Yes, the gear and hook lock boxes are designed to fit back into the existing mortised groove in your door panel. However, the hooks are positioned slightly differently and may require enlarging the strike plate hole.

Can I trim this lock to fit my door?

Yes, the replacement kit has square ends and can be trimmed to fit your specific door panel height requirements up to 81-1/8 inches.

Will my original handle set trim work with this replacement?

It depends on your door brand. Atrium doors with Euro Cylinder trim will require new trim. Marvin and Pease doors with American Version locks may work with minor modifications to the cylinder hole.
