ESSVE Multipoint Lock Replacement Kit for 6'5" Doors – 60mm Backset, 92mm PZ

SKU: 4990616-KIT

$364.00 - $364.00

$364.00

$364.00 - $364.00

$364.00

PZ: 92mm (3-5/8")
Backset: 60mm (2-3/16" original was 55mm)
Faceplate Width: 20mm (25/32")
Overall Length: 68" (1727.2mm) – croppable to 81-1/8"
Bottom Hook Position: 26" (660.4mm)
Top Hook Position: 32-3/4" (831.9mm)
Lock Cylinder: American style
Kit Includes: 20mm 60/92 lower gear with hook, 20mm upper extension with hook, stainless steel installation screws
Replacement has square ends (original had radius ends)
Compatible with Marvin, Pease, and Atrium doors with modifications
Sold as a complete kit

Not sure this is the right part?

Before you order, if you'd like confidence this is the right part for your job, please call us at (816) 221-6543 .

*We have a fully-staffed customer support team happy to help!

Product Details

ESSVE Multipoint Lock Kit – 6'5" Door (4990616-KIT)

This multipoint lock replacement kit is designed for 6 feet 5 inch doors originally equipped with ESSVE locks. The kit provides a complete solution for replacing worn or damaged multipoint locking systems, featuring a 60mm backset and 92mm PZ configuration with a 20mm faceplate width.

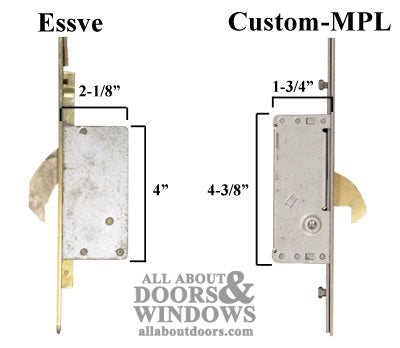

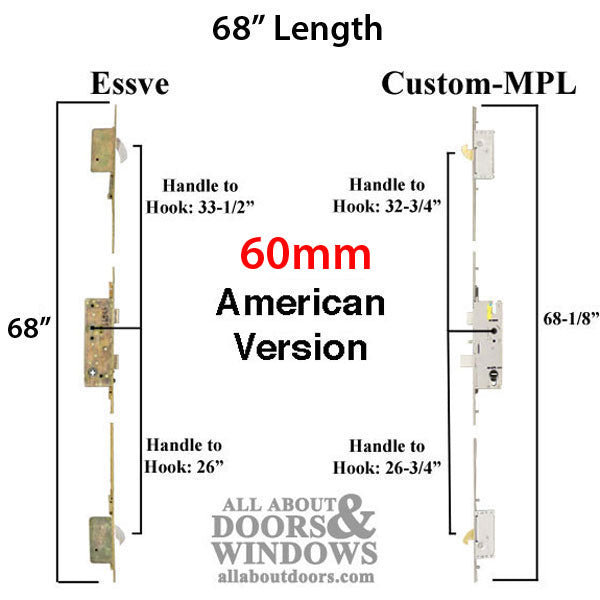

The original ESSVE lock measured 68 inches overall with radius ends, a 55mm backset, and hook positions at 26-3/4 inches (bottom) and 33-1/2 inches (top). This replacement kit uses square ends instead of radius ends and can be trimmed to fit door panel heights up to 81-1/8 inches. The gearbox will shift approximately 3/16 inch due to the backset change from 55mm to 60mm, but new trim will cover any exposed holes.

Technical Information

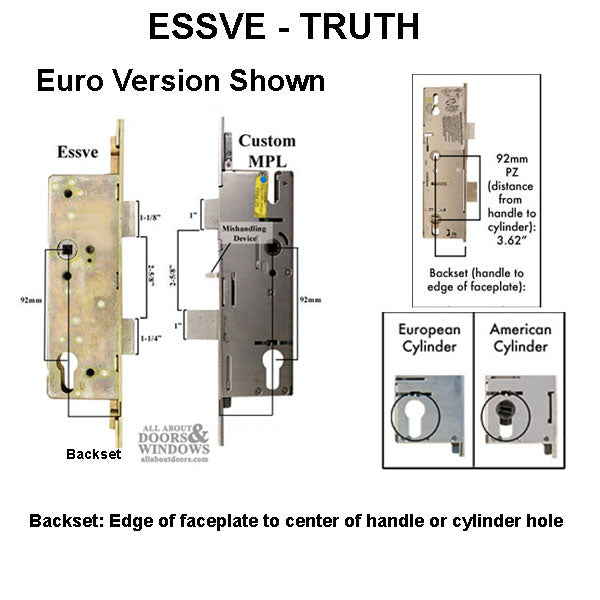

PZ (Handle to Cylinder Center): 92mm (3-5/8 inches)
Backset: 60mm (original was 55mm / 2-3/16 inches)
Faceplate Width: 20mm (25/32 inch)
Overall Length: 68 inches (croppable to 81-1/8 inches)
Bottom Hook Position: 26 inches (original was 26-3/4 inches)
Top Hook Position: 32-3/4 inches (original was 33-1/2 inches)
Lock Cylinder: American style

Notes

Replacement kit has square ends; original had radius ends
Hook lock boxes fit into existing mortised grooves, but strike plate holes may need slight enlargement

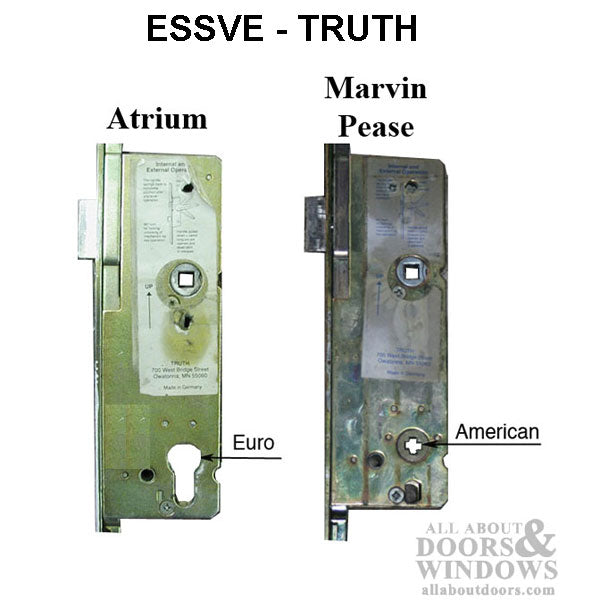

Atrium Doors: Original Euro cylinder version trim will NOT work; new trim required
Marvin / Pease Doors: Original American version trim with 6-3/8 inch screw spacing will work with minor modification to the cylinder hole (may need slight enlargement with a rasp)
Some Pease doors have different bore hole spacing with 2-3/8 inch wide trim – contact us if this applies
Anti-slam / mishandling latch must be pushed in to operate lock
Latch handing can be reversed by extending the deadbolt, pulling out the spring latch, and rotating accordingly

Related Parts

395009 - Expressions 2 x 12 Series Hardware, Modern Square Top, Keyed
395007 - Expressions 2 x 12 Series Hardware, Traditional Arch Top, Keyed

Sold as a complete kit.

Fill out our MPL form or call us to ensure accurate purchasing and correct fit.

Frequently Asked Questions

Will my original handleset trim work with this replacement kit?

For Marvin and Pease doors with American cylinder locks and 6-3/8 inch screw spacing, the original trim will work with minor modifications. For Atrium doors with Euro cylinder trim, new trim is required.

Why does the replacement have a different backset than my original lock?

The original ESSVE lock had a 55mm backset, but the replacement uses a 60mm backset. This causes the gearbox to shift approximately 3/16 inch, which new trim will cover.

Can I trim this lock to fit my door?

Yes, the replacement kit has square ends and can be cropped to fit door panel heights up to 81-1/8 inches.
