Winkhaus One Motion Double Door Replacement Kit for 6' 8" Doors – 45mm Backset, 92mm PZ

SKU: 49906001-KIT

$660.40 - $660.40

$660.40

$660.40 - $660.40

$660.40

System: Winkhaus One Motion multipoint lock replacement kit for double doors
Backset: 1-3/4" (45mm)
PZ: 92mm
Faceplate Width: 20mm
Door Height Range: Fits doors 71-1/2" to 85" (1816mm to 2159mm) – cut to length

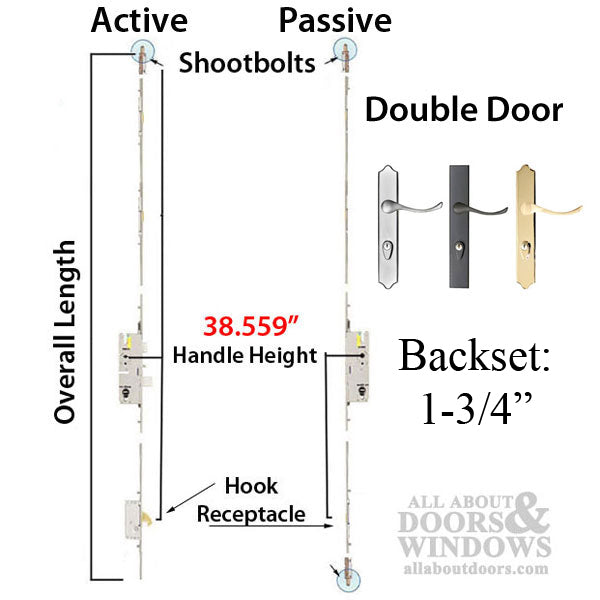

Active Door: 3-point lock with deadbolt, bottom hook, and upper top shootbolt
Passive Door: 2-point lock with bottom hook receptacle, shootbolt, and upper shootbolt
Handle Height: 38.559" (979.4mm)
Can be used with or without astragal between active and passive panels
Latch handing can be reversed by pulling out and spinning around
No screws or strike plate included – most double doors use existing latch ramp on passive panel

Not sure this is the right part?

Before you order, if you'd like confidence this is the right part for your job, please call us at (816) 221-6543 .

*We have a fully-staffed customer support team happy to help!

Product Details

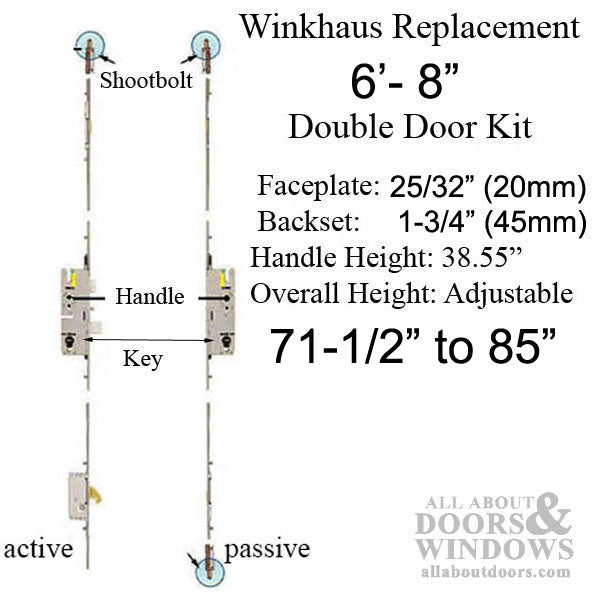

Winkhaus One Motion Double Door Kit – 45/92, 6'8" (49906001-KIT)

This Winkhaus One Motion replacement kit provides a complete multipoint locking solution for nominal 6 feet 8 inch tall double doors. Designed for doors ranging from 71-1/2 inches to 85 inches (1816mm to 2159mm) in height, the lock components can be cut to length to fit your specific door size. The system features a 1-3/4 inch (45mm) backset and 92mm PZ spacing.

The kit includes hardware for both the active and passive door panels. The active door receives a 3-point locking system with a deadbolt, bottom hook, and upper top shootbolt for secure engagement. The passive door includes a 2-point lock with a bottom hook receptacle, shootbolt, and upper shootbolt. This configuration can be installed with or without an astragal between the two panels.

Technical Information

Backset: 1-3/4 inches (45mm)
PZ: 92mm
Faceplate Width: 20mm
Handle Height: 38.559 inches (979.4mm)
Door Height Range: 71-1/2 inches to 85 inches (1816mm to 2159mm)
Door Thickness Compatibility: 1-3/4 inches or 2-1/4 inches (with optional trim)

Kit Contents

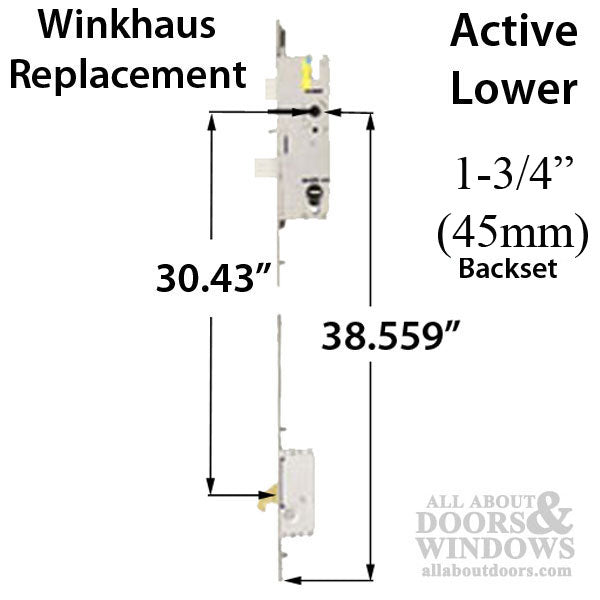

8745-2239-81LA – 20mm Active 45/92 Gear with 1 hook, 38.559 inch handle height
20-2294 – 20mm Middle Shootbolt Extension (Active)
5670-80-81 – 20mm Shootbolt Tip Socket Strike, Brass
8545-2237-81LA – 20mm Passive 45/92 Gear with 1 hook receptacle and shootbolt
20-2274 – 20mm Middle Shootbolt Extension (Passive)
5670-80-81 – 20mm Shootbolt Tip

Notes

No screws or strike plate included – most double doors have a latch ramp on the passive panel that the latch and deadbolt lock into
To change latch handing, pull out the latch and spin it around

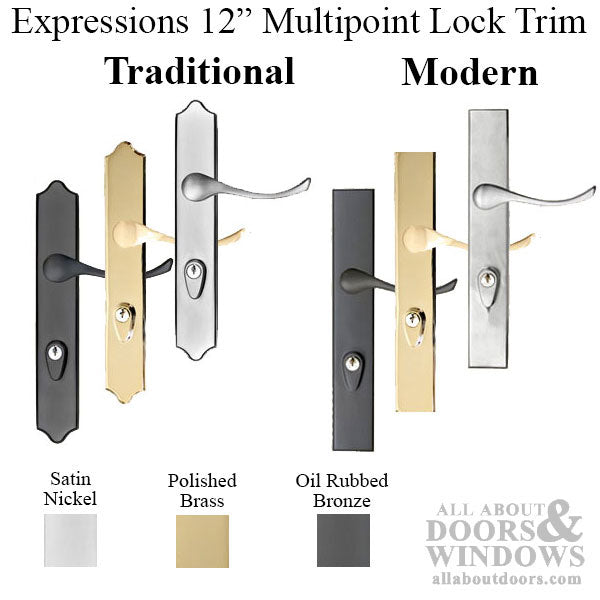

Optional multipoint lock trim available: Expressions 2 inch x 12 inch trim in Traditional or Modern styles, available in Polished Brass, Satin Nickel, or Oil Rubbed Bronze – active side includes thumb turn, passive side does not

Lock Operation

To Lock: Lift the handle to engage all locking points, then turn the thumbturn to secure in the locked position. The deadbolt extends along with the other locking devices when the handle is lifted.
To Unlock: Turn the thumbturn or key to the unlocked position and push down on the lever.

Fill out our MPL form or call us to ensure accurate purchasing and correct fit.

Frequently Asked Questions

Can this kit be used without an astragal between the doors?

Yes, this Winkhaus One Motion double door system can be installed with or without an astragal between the active and passive panels.

How do I change the latch handing direction?

To reverse the latch direction, simply pull out the spring latch and spin it around to face the opposite direction.

What door heights does this kit fit?

This kit fits doors ranging from 71-1/2 inches to 85 inches in height. The components can be cut to length to match your specific door size.
