Winkhaus Multipoint Lock for 92-1/2" Doors – 45mm Backset, 92mm PZ, American Cylinder

SKU: 49906-2045H-202

$310.00 - $310.00

$310.00

$310.00 - $310.00

$310.00

Application: Active door, 3-point lock with 1 deadbolt and 2 hooks
Door Height: 92-1/2" (2350mm) tall doors only
Backset: 1-3/4" (45mm)
PZ: 92mm
Handle Height: 38.559" (979.4mm)
Handle Position: Key below lever
Faceplate Width: 25/32" (20mm)
Door Thickness: 1-3/4" (44mm)
Lock Version: American cylinder
Top Hook Position: 24.413" to center of handle; shootbolt at 40.161"
Bottom Hook Position: 30.43" (772.9mm) to center of handle
Custom replacement for Winkhaus multipoint lock systems
Hook positions fit existing door routes from original Winkhaus lock
Handleset trim sold separately

Not sure this is the right part?

Before you order, if you'd like confidence this is the right part for your job, please fill out our multipoint lock identifier form or call us at (816) 221-6543 .

*We have a fully-staffed customer support team happy to help!

Product Details

Winkhaus Multipoint Lock – 45/92, 92-1/2" Door (49906-2045H-202)

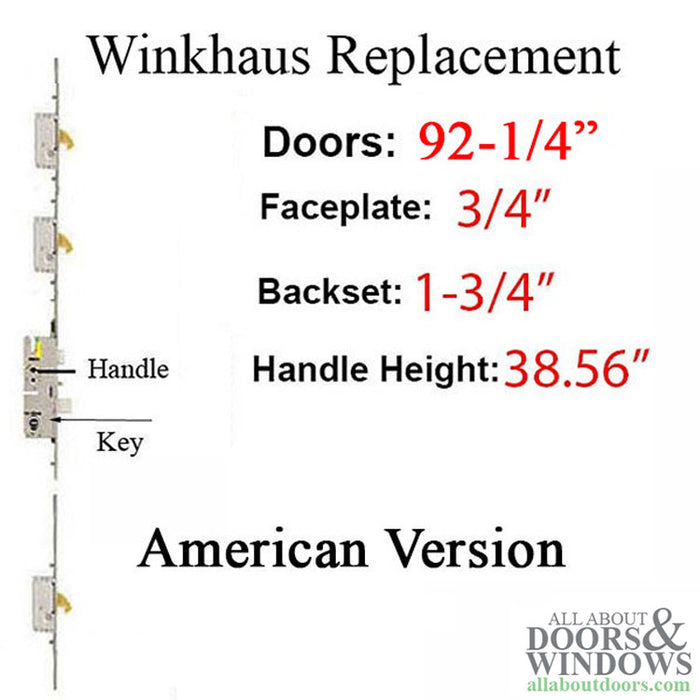

This custom Winkhaus multipoint lock is designed specifically for 92-1/2 inch tall doors with a 1-3/4 inch door thickness. It features a 3-point locking system with one deadbolt and two hooks, providing enhanced security for active doors.

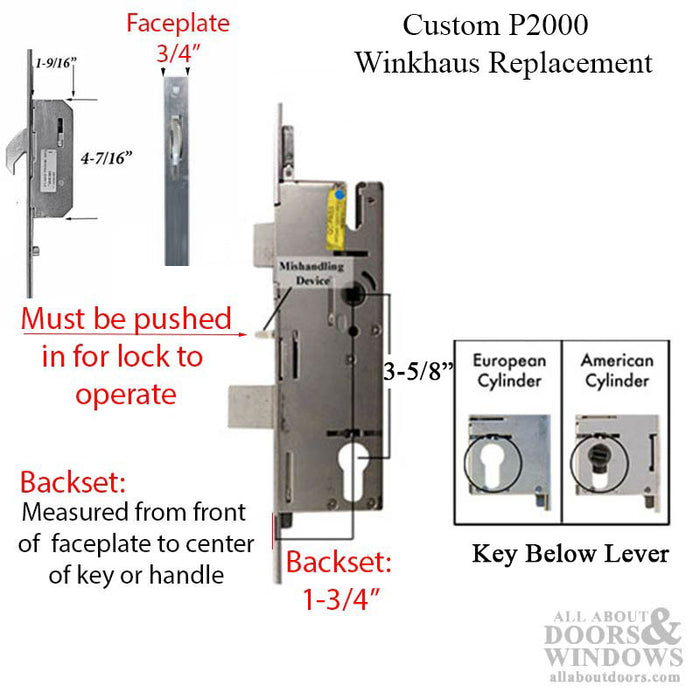

This is an American cylinder version, which means you will need compatible handleset trim. The handle position has the key below the lever, which differs from the original configuration that had the key above the lever. This change adjusts the handle height from the original 36 inches to 38.559 inches.

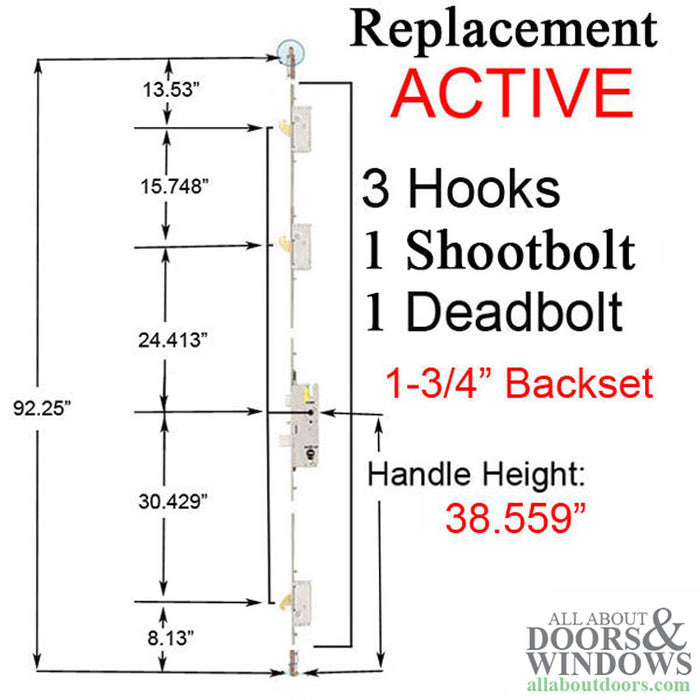

The upper and lower hook positions are engineered to fit within the same door route as the original Winkhaus lock, making this a direct replacement option. The top hook is positioned at 24.413 inches to the center of the handle, with a shootbolt at 40.161 inches. The bottom hook sits at 30.43 inches to the center of the handle.

Technical Information

Backset: 1-3/4 inches (45mm)
PZ: 92mm
Faceplate Width: 25/32 inches (20mm)
Handle Height: 38.559 inches (979.4mm)
Door Height: 92-1/2 inches (2350mm)
Door Thickness: 1-3/4 inches (44mm)
Lock Type: 3-point lock (1 deadbolt, 2 hooks)
Cylinder Type: American cylinder
Top Hook Position: 24.413 inches to center of handle
Shootbolt Position: 40.161 inches
Bottom Hook Position: 30.43 inches (772.9mm) to center of handle

Notes

Original door had key above lever; this replacement has key below lever
Handle height changes from 36 inches to 38.559 inches due to key position change

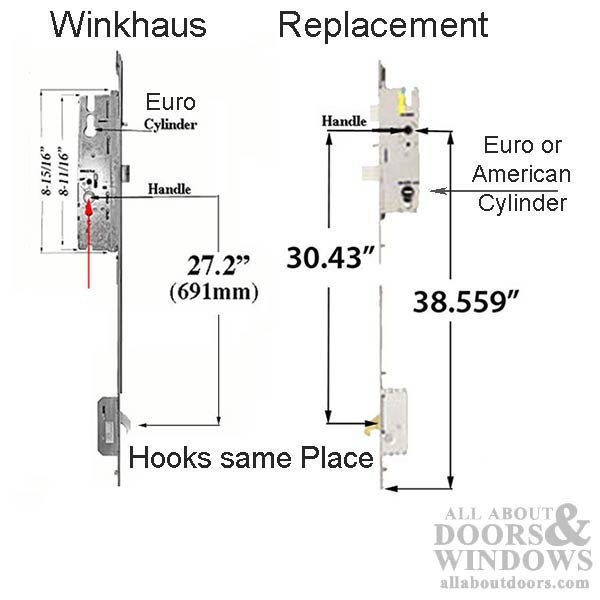

Hook positions fit existing door routes from original Winkhaus lock
Double doors may not use a strike plate

Replaces / Replaced by

Winkhaus One Motion Multipoint Single Door
20-8745-2239LA: 20mm Active 45/92 Gear, hook at 30.43 inches, handle height at 38.559 inches
20-2238: 20mm P2000 Active Upper 2 Rhino Hook at 24.413 inches and 40.161 inches / Shootbolt Assembly

Related Parts

8785695 - Screws, 8mm Head, 1-3/8 inches (35mm) Length, Stainless Steel (15 pack)
395007 - Expressions Keyed 2" x 12" with Arch Top (handleset trim for American version)
395009 - Expressions Keyed 2" x 12" with Square Top (handleset trim for American version)
Strike plates available separately

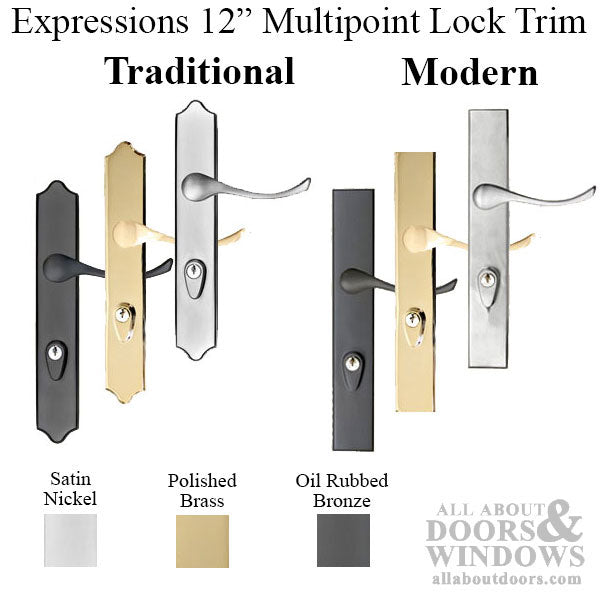

Handleset trim is sold separately. Available finishes for compatible trim include Oil Rubbed Bronze, Satin Nickel, or Polished Brass.

Fill out our MPL form or call us to ensure accurate purchasing and correct fit.

Frequently Asked Questions

Why is the handle height different from my original Winkhaus lock?

This replacement has the key positioned below the lever instead of above, which changes the handle height from 36 inches to 38.559 inches.

Will the hook positions align with my existing door routes?

Yes, the upper and lower hook positions are designed to fit within the same door routes as the original Winkhaus lock, even though their positions relative to the handle have changed.

What handleset trim do I need for this lock?

Since this is an American cylinder version, you will need compatible handleset trim such as the Expressions Keyed 2" x 12" with Arch Top (395007) or Square Top (395009), available in Oil Rubbed Bronze, Satin Nickel, or Polished Brass.
