Winkhaus Multipoint Lock Replacement – 45mm Backset, 92mm PZ, for 76-1/4" Doors

SKU: 49906-2045H-201

$285.00 - $285.00

$285.00

$285.00 - $285.00

$285.00

Application: Active door multipoint lock with 1 deadbolt and 2 hooks
Backset: 1-3/4" (45mm)
PZ: 92mm
Handle Height: 38-9/16" (979.4mm)
Faceplate Width: 25/32" (20mm)
Door Height: 76-1/4" (1936.75mm)
Door Thickness: 1-3/4" (44.5mm)
Top Hook Position: 24-13/32" (620.1mm) from center of handle
Bottom Hook Position: 30-7/16" (772.9mm) from center of handle
Cylinder Type: American cylinder
Key Position: Key below lever
Custom replacement for Winkhaus multipoint locks
Requires new handleset trim (not included)

Not sure this is the right part?

Before you order, if you'd like confidence this is the right part for your job, please fill out our multipoint lock identifier form or call us at (816) 221-6543 .

*We have a fully-staffed customer support team happy to help!

Product Details

Winkhaus Multipoint Lock – 45/92, 76-1/4" Door (49906-2045H-201)

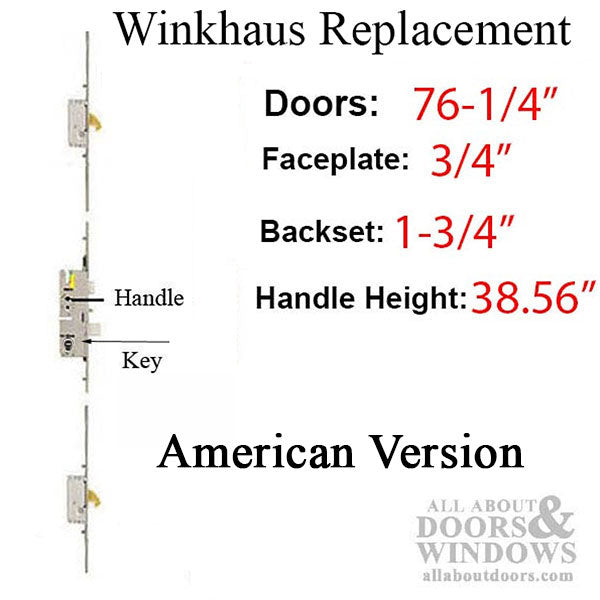

This custom replacement multipoint lock is designed specifically for 76-1/4 inch tall doors that originally used a Winkhaus active multipoint system. The lock features a 3-point locking mechanism with 1 deadbolt and 2 hooks, providing secure multi-point engagement for your entry door.

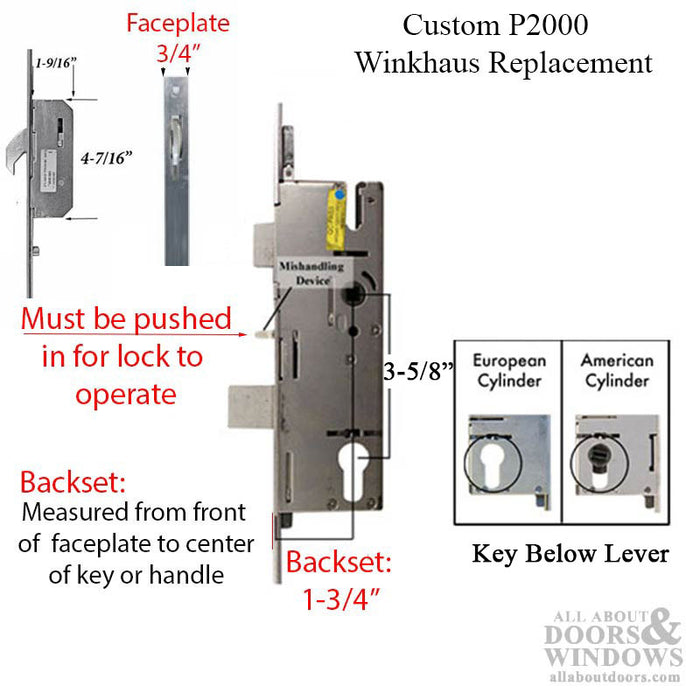

This is an American cylinder version, which means you will need to pair it with compatible handleset trim designed for American cylinders. The key position is below the lever, which differs from the original Winkhaus configuration that had the key above the lever. This change affects the handle height, moving it from the original 36 inches to 38-9/16 inches.

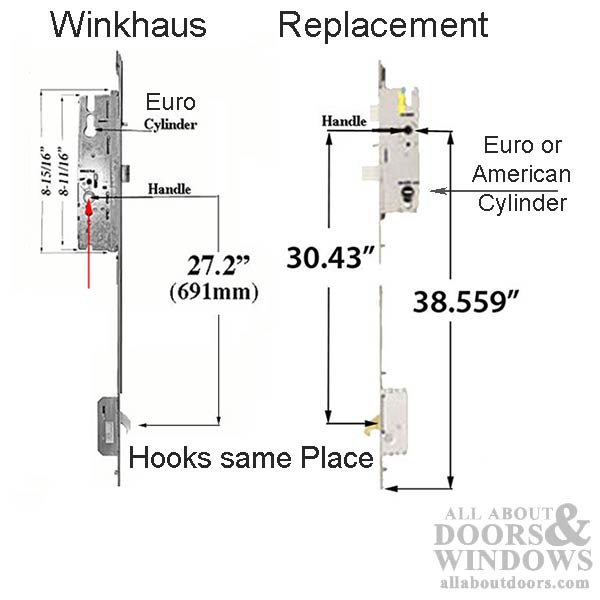

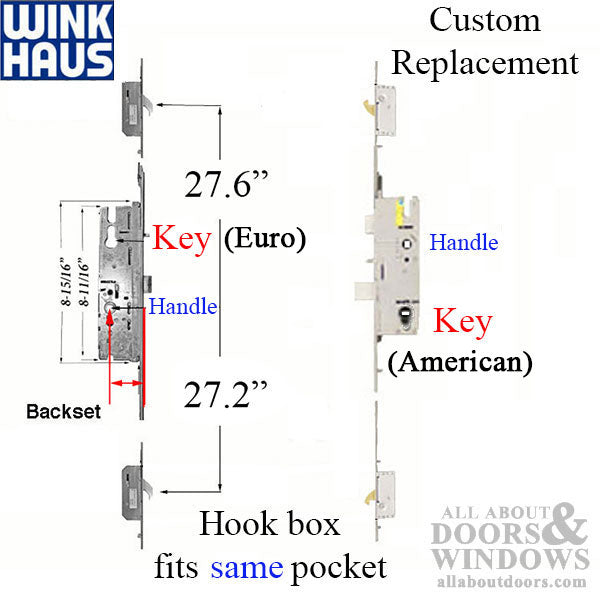

The upper and lower hook positions have been designed to fit within the same door route as the original Winkhaus lock, though their positions relative to the handle have changed due to the new handle height configuration.

Technical Information

Backset: 1-3/4 inches (45mm)
PZ: 92mm
Faceplate Width: 25/32 inches (20mm)
Handle Height: 38-9/16 inches (979.4mm)
Door Height: 76-1/4 inches (1936.75mm)
Door Thickness: 1-3/4 inches (44.5mm)
Top Hook Position: 24-13/32 inches (620.1mm) from center of handle
Bottom Hook Position: 30-7/16 inches (772.9mm) from center of handle
Lock Type: 3-point lock (1 deadbolt, 2 hooks)
Cylinder Type: American cylinder

Notes

Key position is below lever (original Winkhaus had key above lever)
Hook positions fit the same door route as original Winkhaus lock
Requires new handleset trim compatible with American cylinders

Replaces / Replaced by

Winkhaus One Motion Multipoint Single Door 20-8745-2239-81LA
20mm Active 45/92 Gear with hook at 30.43 inches
20-2239UA Active upper hook

Related Parts

8785695 - Screws, 8mm head, 1-3/8 inch length (35mm) - Stainless Steel (15 required)

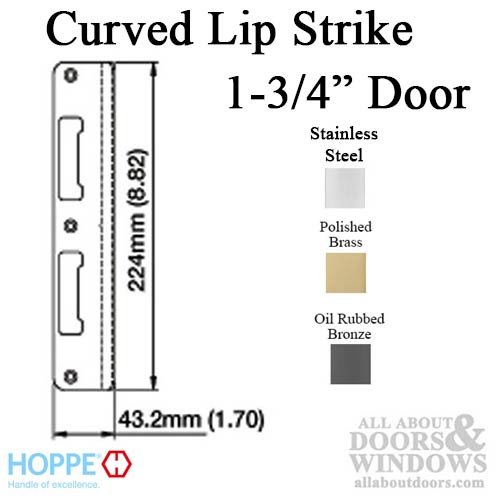

Strike plate available separately (double doors may not use a strike plate)

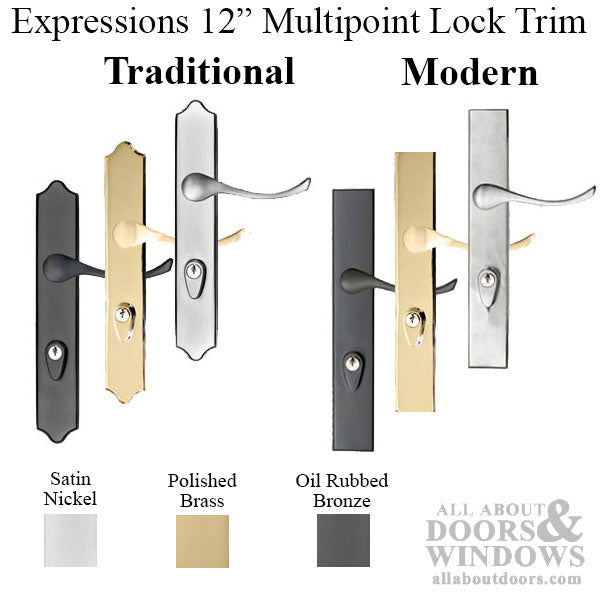

395007 - Expressions Keyed 2 x 12 inch with Arch Top (suggested handleset trim)
395009 - Expressions Keyed 2 x 12 inch with Square Top (suggested handleset trim)
Available finishes for trim: Oil Rubbed Bronze, Satin Nickel, or Polished Brass

Priced and sold each. Handleset trim not included.

Fill out our MPL form or call us to ensure accurate purchasing and correct fit.

Frequently Asked Questions

Why is the handle height different from my original Winkhaus lock?

This replacement has the key positioned below the lever instead of above, which changes the handle height from 36 inches to 38-9/16 inches. The hook positions still fit the same door route as your original lock.

Do I need to buy new handleset trim with this lock?

Yes, this American cylinder version requires compatible handleset trim. We suggest the Expressions Keyed 2 x 12 inch trim (395007 with Arch Top or 395009 with Square Top) available in Oil Rubbed Bronze, Satin Nickel, or Polished Brass.

What is the difference between American cylinder and Euro cylinder?

American cylinders are the standard cylinder type used in North American locks, while Euro cylinders are common in European hardware. This lock uses an American cylinder, so you'll need handleset trim designed for American cylinder compatibility.
