Essve Multipoint Lock for 8' Doors – 45mm Backset, 92mm PZ, American Cylinder

Essve Multipoint Lock for 8' Doors – 45mm Backset, 92mm PZ, American Cylinder

SKU: 499051599

See Notes for Info
  • Type: 3-Point Multipoint Lock (2 hooks and deadbolt)
  • Cylinder: American cylinder slot
  • Backset: 1-3/4" (45mm)
  • PZ: 3-5/8" (92mm)
  • Faceplate Width: 25/32" (20mm)

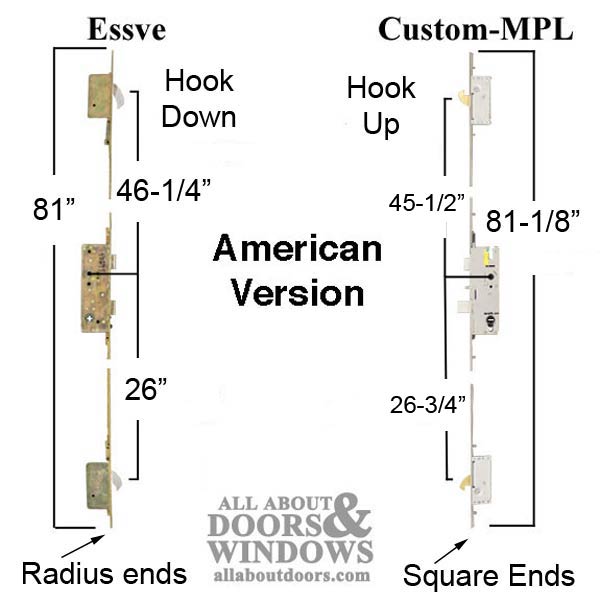

  • Faceplate Length: 81" (2057mm) with radius ends
  • Door Size: 8' doors
  • Center of handle to bottom hook: 26" (660mm)
  • Center of handle to top hook: 46-1/4" (1175mm)
  • Brand: Essve by Truth
  • Compatibility: Used by Pease, Marvin, and others
  • Status: Discontinued – Custom replacement available (4990618-Kit)
Discontinued and no longer available
Not sure this is the right part?
Before you order, if you'd like confidence this is the right part for your job, please fill out our multipoint lock identifier form or call us at (816) 221-6543 .
*We have a fully-staffed customer support team happy to help!

Essve 3-Point Multipoint Lock – 45/92, American Cylinder (499051599)

This Essve multipoint lock by Truth features a 3-point locking system with two hooks and a deadbolt, designed for 8-foot tall doors. The lock accepts an American cylinder and was originally available in both American and European cylinder configurations. This is the American cylinder version.

This lock was commonly used by Pease, Marvin, and other door manufacturers. The faceplate measures 81 inches (2057mm) in overall length with radius ends and a width of 25/32 inches (20mm). The backset is 1-3/4 inches (45mm) with standard 3-5/8 inch (92mm) handle spacing.

Technical Information

  • Type: 3-Point Lock (2 hooks and deadbolt)
  • Cylinder Type: American cylinder
  • Backset: 1-3/4 inches (45mm)
  • Handle Spacing (PZ): 3-5/8 inches (92mm)
  • Faceplate Width: 25/32 inches (20mm)
  • Overall Faceplate Length: 81 inches (2057mm) with radius ends
  • Door Size: 8-foot tall doors
  • Center of handle to bottom hook: 26 inches (660mm)
  • Center of handle to top hook: 46-1/4 inches (1175mm)
  • Center of handle to bottom of faceplate: 31 inches (787mm)
  • Center of handle to top of faceplate: 50 inches (1270mm)

Notes

  • This item is discontinued
  • Custom replacement available: 4990618-Kit (81-inch multipoint lock with squared ends for single active door)
  • Replacement lock requires minor modifications to install, including cutting metal locking rails to length and modifying the mortise groove
  • May require enlarging hole in latch or hook strike plate
  • For double French doors, modifications are more complex and may require enlarging the receptacle hole in the passive door
  • No replacement currently available for passive lock if it fails

Replaces / Replaced by

  • 4990618-Kit: Custom 81-inch Multipoint Lock with squared ends (replacement for this discontinued lock)

Priced and sold each.

Fill out our MPL form or call us to ensure accurate purchasing and correct fit.

Frequently Asked Questions

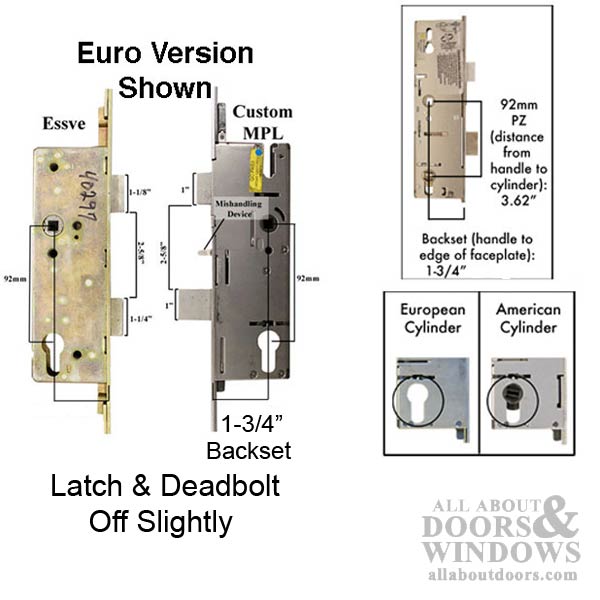

What is the difference between American and European cylinder locks?

American cylinders are typically round with a larger diameter, while European cylinders are oval-shaped and narrower. This lock uses an American cylinder, which is common in North American doors.

What modifications are needed to install the replacement lock?

The replacement 4990618-Kit requires cutting the metal locking rails to length, modifying the mortise groove to fit the new square shape, and possibly enlarging the hole in the latch or hook strike plate.

Will this lock work on double French doors?

The replacement can work on double French doors but may require additional modifications, including enlarging the receptacle hole in the passive door. Note that no replacement is currently available if the passive lock fails.
