Hoppe HLS9000 5-Point Multipoint Lock for 93-1/4" Doors – 45mm Backset, 92mm PZ

SKU: 4990286-KIT

$314.42 - $314.42

$314.42

$314.42 - $314.42

$314.42

PZ: 92mm (3-5/8")
Backset: 45mm (1-3/4")
Faceplate Width: 16mm (5/8")
Deadbolt Throw: 25mm (1")
Handle Height: 36-7/8" (937mm)
Bottom Tongue Position: 26.42" (671mm) below handle center
Top Tongue Position: 37.20" (945mm) above handle center
Overall Length: 93-1/4" (2368mm)

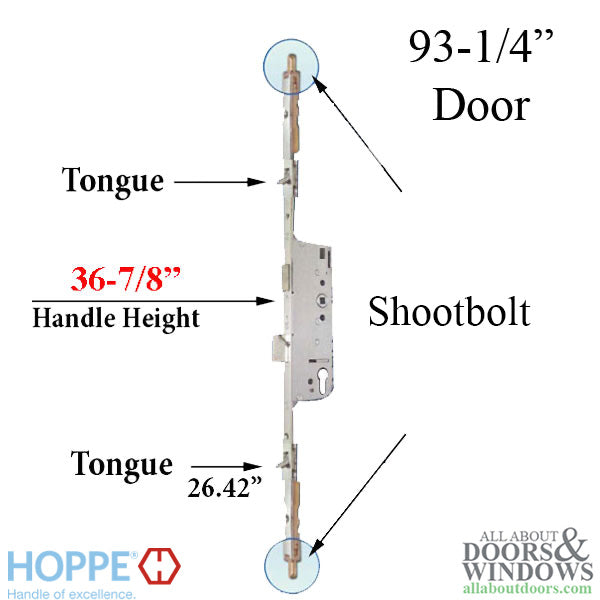

5-point locking system with 2 tongues, 2 shootbolts, and 1 deadbolt
Manual tongue shootbolt version
Replaces old Hoppe or Fuhr automatic or manual tongue multipoint locks
This 2-piece lock cannot be trimmed – fits only 93-1/4" doors

Not sure this is the right part?

Before you order, if you'd like confidence this is the right part for your job, please fill out our multipoint lock identifier form or call us at (816) 221-6543 .

*We have a fully-staffed customer support team happy to help!

Product Details

Hoppe HLS9000 5-Point Lock – 45/92, 93-1/4" Door (4990286-KIT)

This Hoppe HLS9000 5-point multipoint lock is designed specifically for 93-1/4 inch tall doors. It features a manual tongue shootbolt configuration with comprehensive security through its 5-point locking mechanism: 2 tongue latches, 2 shootbolts, and a deadbolt.

This lock serves as a direct replacement for older Hoppe or Fuhr automatic or manual tongue multipoint locks with a 45mm backset. The shootbolts are positioned at the extreme top and bottom of the lock assembly for maximum door security.

Technical Information

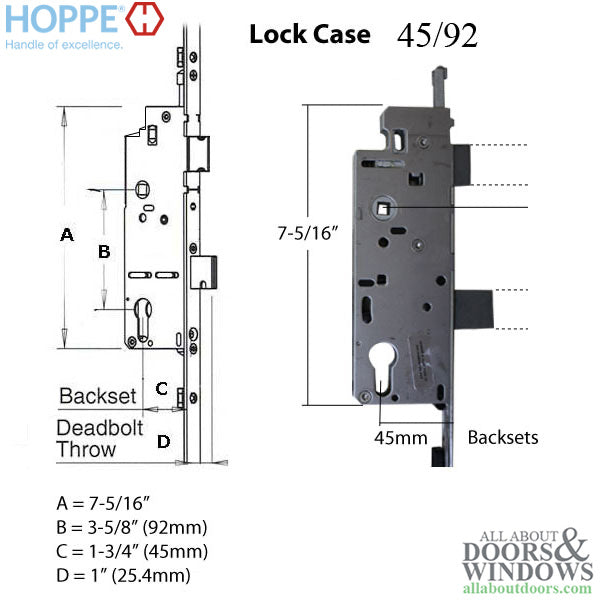

Backset: 45mm (1-3/4 inches)
PZ (Handle to Cylinder Spacing): 92mm (3-5/8 inches)
Faceplate Width: 16mm (5/8 inch)
Deadbolt Throw: 25mm (1 inch)

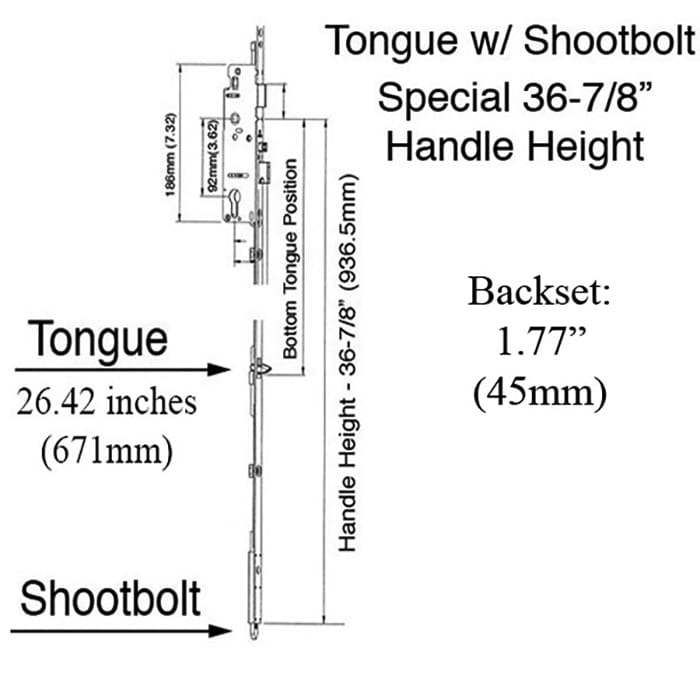

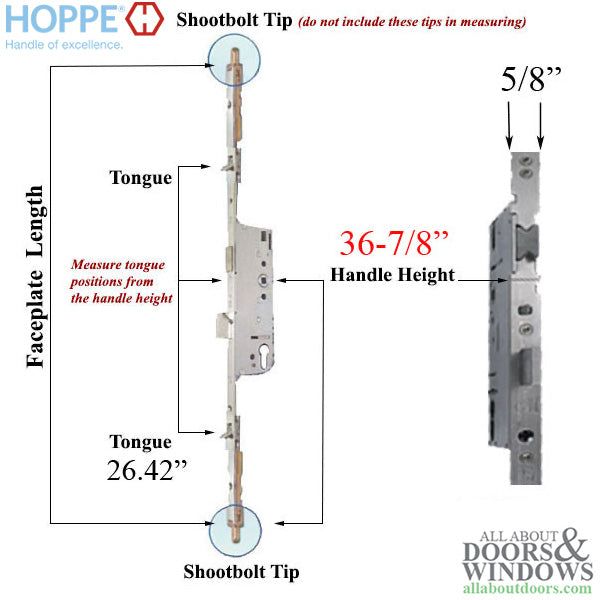

Handle Height: 36-7/8 inches (937mm)
Bottom Tongue Position: 26.42 inches (671mm) below handle center
Top Tongue Position: 37.20 inches (945mm) above handle center
Overall Length: 93-1/4 inches (2368mm)
Locking Points: 5 (2 tongues, 2 shootbolts, 1 deadbolt)

Notes

This 2-piece lock cannot be trimmed for different door heights
Only fits 93-1/4 inch doors – measure carefully before ordering
Manual tongue shootbolt version

Replaces / Replaced by

Replaces old Hoppe or Fuhr automatic or manual tongue multipoint locks with 45mm backset

Additional Resources

Fill out our MPL form or call us to ensure accurate purchasing and correct fit.

Frequently Asked Questions

Can this lock be trimmed to fit a shorter door?

No, this 2-piece lock cannot be trimmed for different door heights. It is designed specifically for 93-1/4 inch doors only.

What does this lock replace?

This Hoppe HLS9000 replaces older Hoppe or Fuhr automatic or manual tongue multipoint locks with a 45mm backset.

How do I change the handing on this lock?

Hoppe multipoint locks can be rehanded. Refer to the instructional video or written article available in the product resources for step-by-step guidance.
