Hoppe Inactive Multipoint Lock Kit for 93" Caradco Doors – 35mm Backset, 92mm PZ

Hoppe Inactive Multipoint Lock Kit for 93" Caradco Doors – 35mm Backset, 92mm PZ

SKU: 4990239-KIT

$364.00 - $364.00
$364.00
$364.00 - $364.00
$364.00
  • PZ: 92mm
  • Backset: 35mm (1-3/8")
  • Handle Height: Adjustable (set to 35-1/2" (901.7mm) for Caradco replacement)
  • Full Lock Length: Adjustable (requires trimming for 93" door)
  • Replaces inactive FUHR lock in French Caradco doors
  • Kit Includes: Gear box, top shootbolt tip (longer), bottom shootbolt tip (shorter)
  • Requires trimming to fit 93" inactive Caradco door
  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Visa
Not sure this is the right part?
Before you order, if you'd like confidence this is the right part for your job, please fill out our multipoint lock identifier form or call us at (816) 221-6543.
*We have a fully-staffed customer support team happy to help!

Hoppe Inactive Multipoint Lock Kit – 35/92, 93" Door (4990239-KIT)

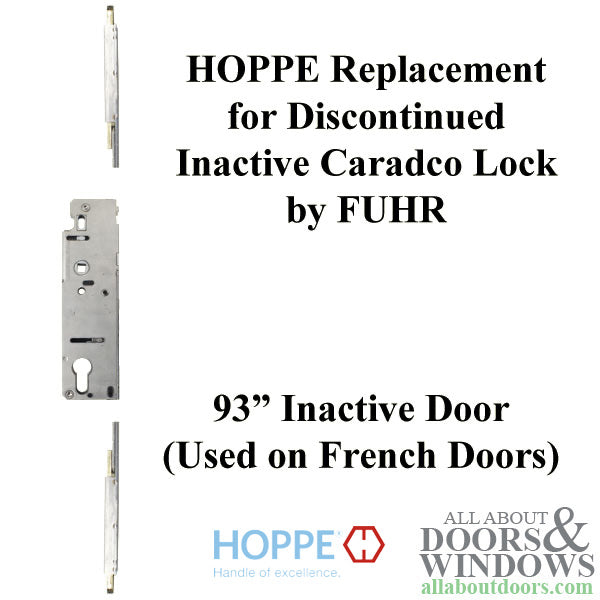

This Hoppe multipoint lock kit is designed to replace the inactive FUHR lock found in French Caradco doors. The kit is specifically configured for 93-inch inactive doors and requires trimming during installation to achieve proper fit and handle height.

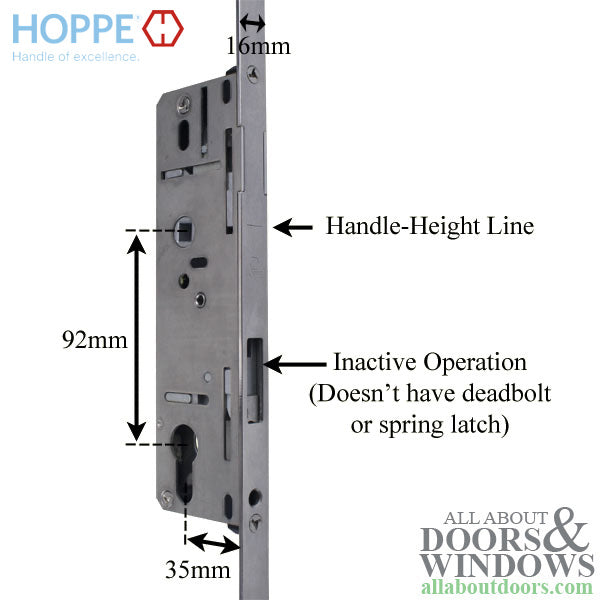

The lock features a 35mm backset and 92mm PZ (handle center to cylinder center). The handle height is adjustable and must be set to 35-1/2 inches to properly replace the original Caradco lock.

Kit Includes

  • Gear box
  • Top shootbolt tip (longer tip in kit)
  • Bottom shootbolt tip (shorter tip in kit)

Technical Information

  • PZ: 92mm
  • Backset: 35mm
  • Handle Height: Adjustable (35-1/2 inches for Caradco replacement)
  • Full Lock Length: Adjustable (requires trimming)
  • Door Height: 93 inches (inactive)

Notes

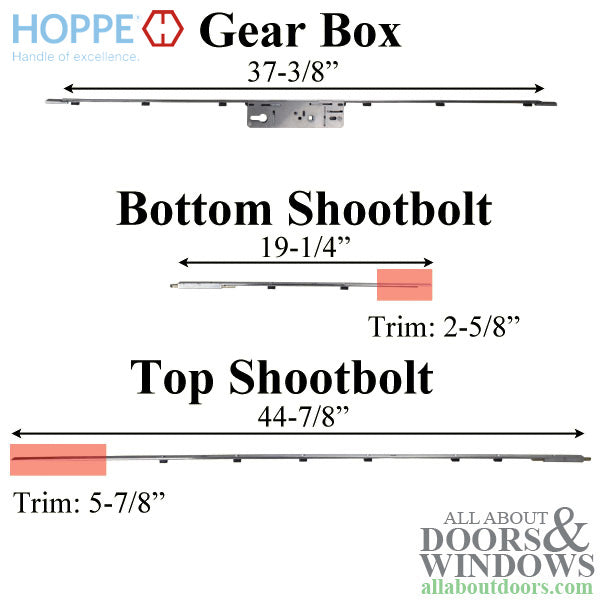

  • Trim approximately 2-5/8 inches off bottom shootbolt so handle sits at 35-1/2 inches up the door
  • Trim approximately 5-1/2 inches off top shootbolt so full lock fits in 93-inch door
  • CAUTION: Lock will be hot after trimming; do not use electric saw as lock will discolor and can warp
  • Make sure you install the correct shootbolt tip on the correct end (longer tip on top, shorter on bottom)

Replaces / Replaced by

  • Replaces inactive FUHR lock found in French Caradco doors

Related Parts

  • 4990236 - Active 77" Caradco Replacement Lock
  • 4990237 - Active 93" Caradco Replacement Lock
  • 4990238 - Inactive 77" Caradco Replacement Lock

A full installation guide is available for this replacement kit.

Fill out our MPL form or call us to ensure accurate purchasing and correct fit.

Frequently Asked Questions

Why does this lock kit require trimming?

The kit is designed to be adjustable for Caradco door replacement. You must trim the bottom shootbolt by approximately 2-5/8 inches and the top shootbolt by approximately 5-1/2 inches to fit a 93-inch inactive door and position the handle at 35-1/2 inches.

Can I use an electric saw to trim the shootbolts?

No, do not use an electric saw. The lock will become hot during cutting, which can cause discoloration and warping. Use a manual cutting method instead.

What is the difference between the two shootbolt tips in the kit?

The kit includes a longer shootbolt tip for the top and a shorter shootbolt tip for the bottom. Make sure to install each tip on the correct end of the lock.
