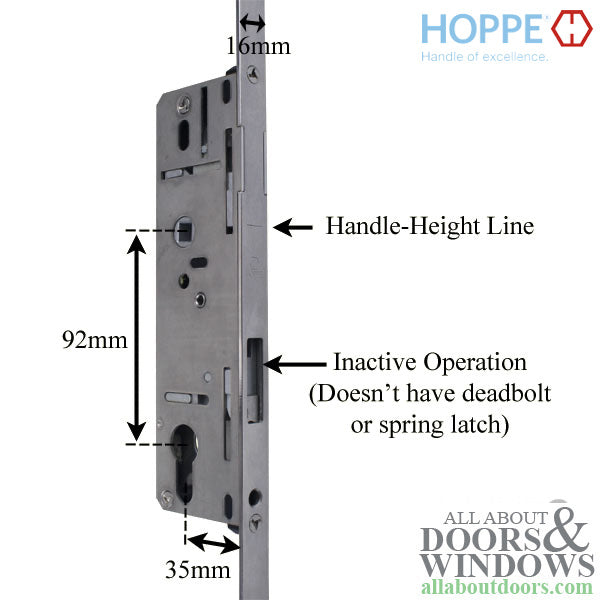

Hoppe Inactive FUHR Lock Replacement Kit for 77" Caradco Doors – 35mm Backset, 92mm PZ

Hoppe Inactive FUHR Lock Replacement Kit for 77" Caradco Doors – 35mm Backset, 92mm PZ

SKU: 4990238-KIT

$314.42 - $314.42
$314.42
$314.42 - $314.42
$314.42
  • PZ: 92mm
  • Backset: 35mm (1-3/8")
  • Handle Height: Adjustable (trim to 35-1/2" for Caradco)
  • Full Lock Length: Adjustable (trim to fit 77" door)
  • Kit Includes: Gear box, top shootbolt tip (shorter), bottom shootbolt tip (longer)
  • Replaces inactive/passive FUHR lock in 77" French Caradco doors
  • Trimming required for proper fit—see instructions
  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Visa
Not sure this is the right part?
Before you order, if you'd like confidence this is the right part for your job, please fill out our multipoint lock identifier form or call us at (816) 221-6543.
*We have a fully-staffed customer support team happy to help!

Hoppe Inactive FUHR Lock Kit – 77" Caradco (4990238-KIT)

This Hoppe replacement kit is designed to replace the inactive (passive) FUHR multipoint lock found in 77-inch French Caradco doors. The kit includes a gear box, a shorter top shootbolt tip, and a longer bottom shootbolt tip. Trimming is required to achieve the correct handle height and overall lock length for your door.

The lock features a 35mm backset and 92mm PZ. Handle height is adjustable—trim the bottom shootbolt so the handle sits at 35-1/2 inches from the floor. The top shootbolt must also be trimmed to fit the 77-inch door height.

Technical Information

  • PZ: 92mm
  • Backset: 35mm
  • Handle Height: Adjustable (35-1/2 inches for Caradco)
  • Full Lock Length: Adjustable (trim to fit 77-inch door)
  • Kit Includes: Gear box, top shootbolt tip (shorter), bottom shootbolt tip (longer)

Notes

  • Trim approximately 2-5/8 inches off the bottom shootbolt so the handle sits at 35-1/2 inches up the door.
  • Trim approximately 2-1/8 inches off the top shootbolt so the full lock fits in a 77-inch door.
  • Caution: Lock will be hot after trimming. Do not use an electric saw—lock may discolor and warp.
  • For 93-inch inactive Caradco doors, see part 4990239.

Related Parts

  • 4990236 – Active 77" Lock
  • 4990237 – Active 93" Lock
  • 4990239 – Inactive 93" Lock

A full replacement guide is available here.

Fill out our MPL form or call us to ensure accurate purchasing and correct fit.

Frequently Asked Questions

What trimming is required to install this lock kit?

Trim approximately 2-5/8 inches off the bottom shootbolt so the handle sits at 35-1/2 inches, and trim approximately 2-1/8 inches off the top shootbolt to fit a 77-inch door.

Can I use an electric saw to trim the lock?

No, do not use an electric saw. The lock will become hot and may discolor or warp. Use a hand saw or appropriate cutting tool.

What if my Caradco door is 93 inches tall?

This kit is for 77-inch doors. For 93-inch inactive Caradco doors, use part 4990239 instead.
