Peachtree Multipoint Lock Bottom Gear Kit for 93" Doors – 45mm Backset, 92mm PZ, 36" Handle Height

SKU: 4990227-KIT

$314.42 - $314.42

$314.42

$314.42 - $314.42

$314.42

PZ: 92mm
Backset: 1-3/4" (45mm)
Handle Height: 36" (914mm)
Faceplate Width: 5/8" (16mm)
Bottom Tongue Position: 24.41" (620mm)
Deadbolt Throw: 1" (25.4mm)
Shootbolt Throw: 1" (25.4mm)
Function: Manual version for active door
Finish: Stainless Steel
Fits Door Heights: 91.38" - 95.32" (2321mm - 2421mm)
Complete 3-piece kit for 93" Peachtree doors
Sold as a kit

Not sure this is the right part?

Before you order, if you'd like confidence this is the right part for your job, please fill out our multipoint lock identifier form or call us at (816) 221-6543 .

*We have a fully-staffed customer support team happy to help!

Product Details

Peachtree MPL Bottom Gear Kit – 45/92, 36" HH (4990227-KIT)

This complete multipoint lock kit is designed for Peachtree 93-inch doors using the Hoppe HLS9000 system. The kit includes all three components needed to replace or repair the bottom locking mechanism on your active door panel.

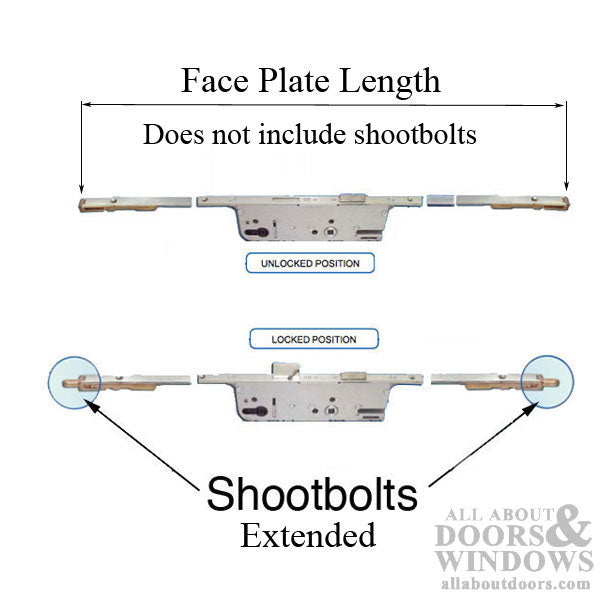

The bottom gear features a manual tongue with shootbolt function, providing secure multi-point locking at the 36-inch handle height position. With a 1-3/4 inch (45mm) backset and 92mm PZ spacing, this kit maintains compatibility with standard Peachtree door preparations.

Technical Information

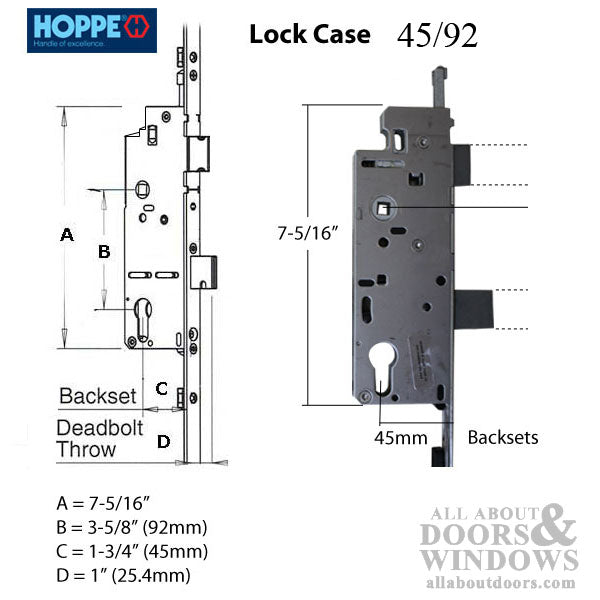

PZ (Handle to Cylinder Center): 92mm
Backset: 1-3/4 inches (45mm)
Handle Height: 36 inches (914mm)
Faceplate Width: 5/8 inch (16mm)
Bottom Tongue Position: 24.41 inches (620mm)
Deadbolt Throw: 1 inch (25.4mm)
Shootbolt Throw: 1 inch (25.4mm)
Door Height Range: 91.38 - 95.32 inches
Finish: Stainless Steel

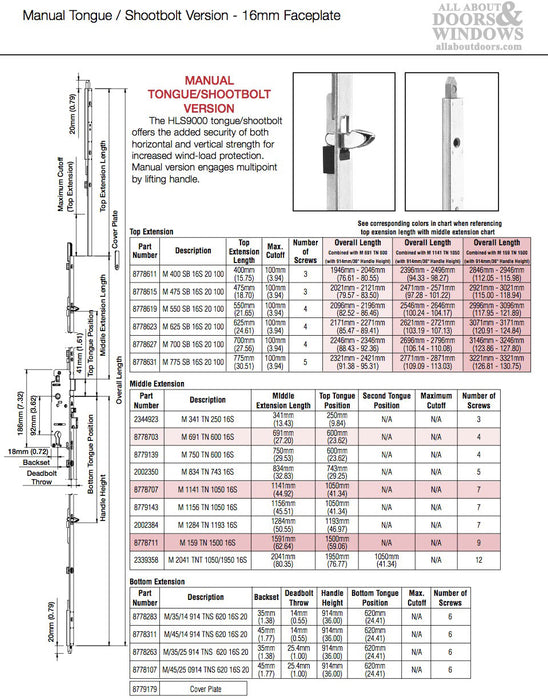

Kit Includes

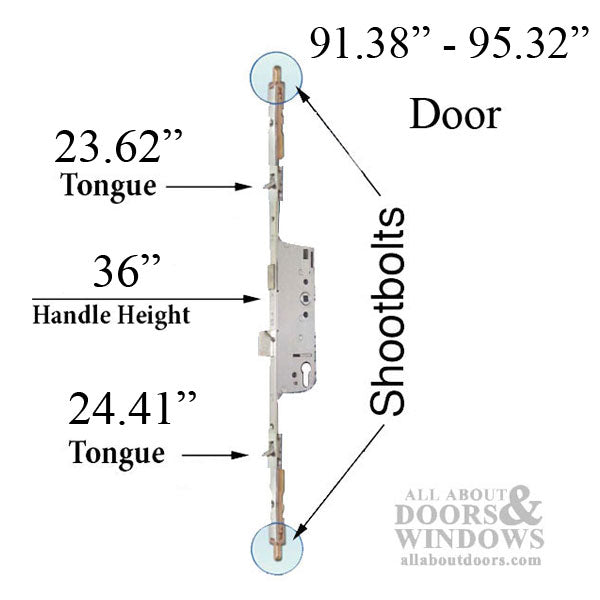

8778107 - 16mm 45/92 Gear with Tongue at 24.41 inches and Shootbolt, 36 inch Handle Height
8778703 - 16mm Middle Extension with Upper Tongue Position at 23.62 inches (600mm)
8778631 - 16mm Top Shootbolt Tip

Notes

Manual function version designed for active door panels
Compatible with Peachtree doors measuring 91.38 to 95.32 inches tall
Lock can be rehanded if needed for opposite swing doors

Sold as a complete 3-piece kit.

Fill out our MPL form or call us to ensure accurate purchasing and correct fit.

Frequently Asked Questions

What door heights does this kit fit?

This kit is designed for Peachtree doors measuring 91.38 to 95.32 inches tall, commonly referred to as 93-inch doors.

Can I change the handing on this multipoint lock?

Yes, this lock can be rehanded for opposite swing doors. See the rehanding video guide for step-by-step instructions.

What is included in this kit?

The kit includes three components: the bottom gear with tongue and shootbolt (8778107), the middle extension (8778703), and the top shootbolt tip (8778631).
