Fuhr 6-Point Multipoint Lock Case for 8' Hinged Patio Doors – 35mm Backset, 92mm PZ

Fuhr 6-Point Multipoint Lock Case for 8' Hinged Patio Doors – 35mm Backset, 92mm PZ

SKU: 499017599

  • PZ: 92mm (3-5/8")
  • Backset: 35mm (1-3/8")
  • Faceplate Width: 16mm (5/8")
  • Overall Length: 92-15/16" (2361mm)
  • Handle Height: 35-7/16" (900mm)
  • Door Size: 8' 0" hinged patio doors
  • Locking Points: 6-point system with three rollers and two vertical shootbolts
  • Roller Positions Below Handle: 13-7/8" locked / 13" unlocked
  • 1st Roller Above Handle: 13-3/8" locked / 14" unlocked
  • 2nd Roller Above Handle: 37-1/4" locked / 38" unlocked
  • Sold individually
Replace with 4990337-KIT
Not sure this is the right part?
Before you order, if you'd like confidence this is the right part for your job, please fill out our multipoint lock identifier form or call us at (816) 221-6543 .
*We have a fully-staffed customer support team happy to help!

Fuhr 6-Point Lock Case – 8' Door, 35/92 (499017599)

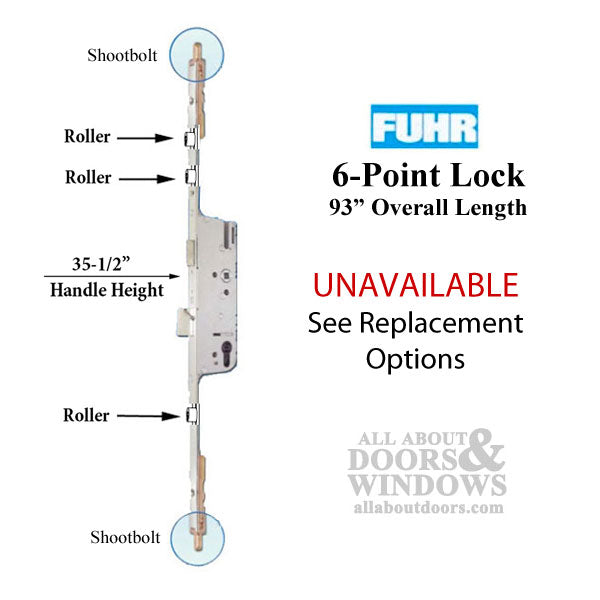

This Fuhr 6-point multipoint lock case is designed for 8-foot hinged patio doors. It features a comprehensive locking system with three locking rollers and two vertical shootbolts (one at top, one at bottom) for enhanced security on active door panels.

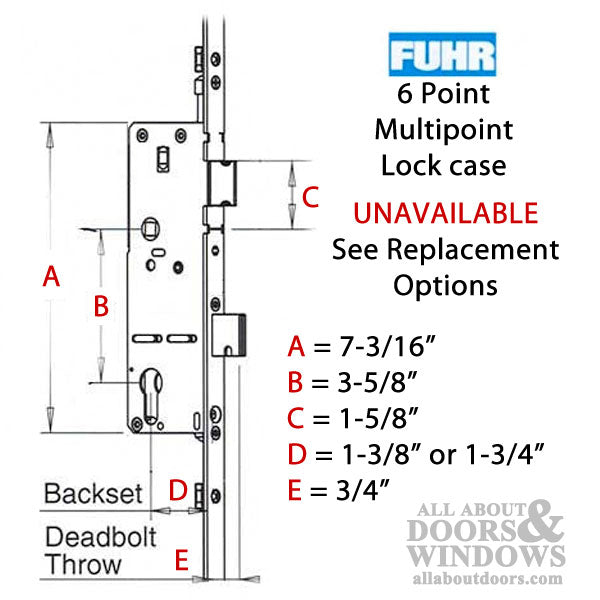

The lock body has a 35mm (1-3/8 inches) backset and 92mm (3-5/8 inches) PZ spacing from the center of the spindle to the cylinder. The handle height measures 35-7/16 inches, which is slightly shorter than the standard 36-inch height.

Technical Information

  • PZ (Handle to Cylinder): 92mm (3-5/8 inches)
  • Backset: 35mm (1-3/8 inches)
  • Faceplate Width: 16mm (5/8 inches)
  • Overall Faceplate Length: 92-15/16 inches (2361mm)
  • Handle Height: 35-7/16 inches (900mm)
  • Locking Points: 6 (3 rollers + 2 shootbolts)
  • Roller Below Handle (Locked): 13-7/8 inches
  • Roller Below Handle (Unlocked): 13 inches
  • 1st Roller Above Handle (Locked): 13-3/8 inches
  • 1st Roller Above Handle (Unlocked): 14 inches
  • 2nd Roller Above Handle (Locked): 37-1/4 inches
  • 2nd Roller Above Handle (Unlocked): 38 inches
  • Door Application: 8' 0" Hinged Patio Doors

Notes

  • Handle height is 35-7/16 inches, slightly shorter than the standard 36-inch height
  • Commonly used in Caradco doors with Fuhr hardware

Replaces / Replaced by

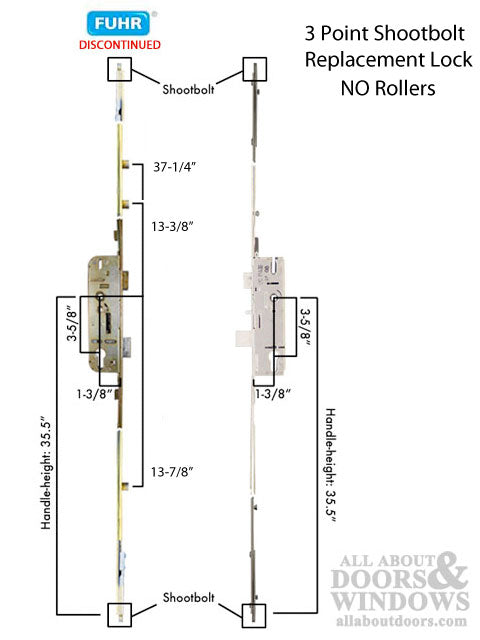

  • 4990237-KIT - Shootbolt version replacement option (includes gear box, middle extension, top and bottom shootbolts)

Priced and sold each.

Fill out our MPL form or call us to ensure accurate purchasing and correct fit.

Frequently Asked Questions

What is the difference between the locked and unlocked roller positions?

When the handle is turned to lock, the rollers move into their locked positions to engage with the strike plates. The unlocked positions show where the rollers sit when the door is ready to open.

Will this lock work with my Caradco door?

This Fuhr 6-point lock is commonly used in Caradco hinged patio doors. Verify your measurements match: 35mm backset, 92mm PZ, and 92-15/16 inch overall faceplate length.

What does the 4990237-KIT replacement option include?

The 4990237-KIT is a shootbolt version replacement that includes the gear box, middle extension, and top and bottom shootbolts.
