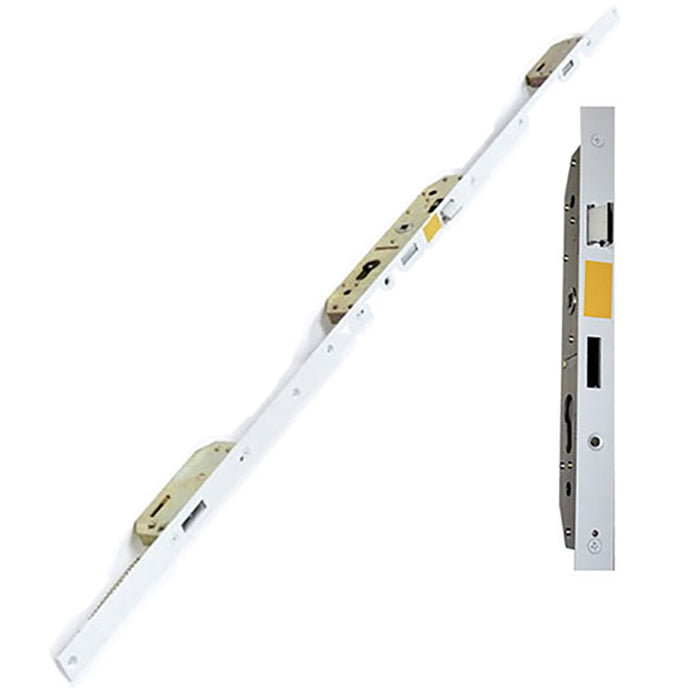

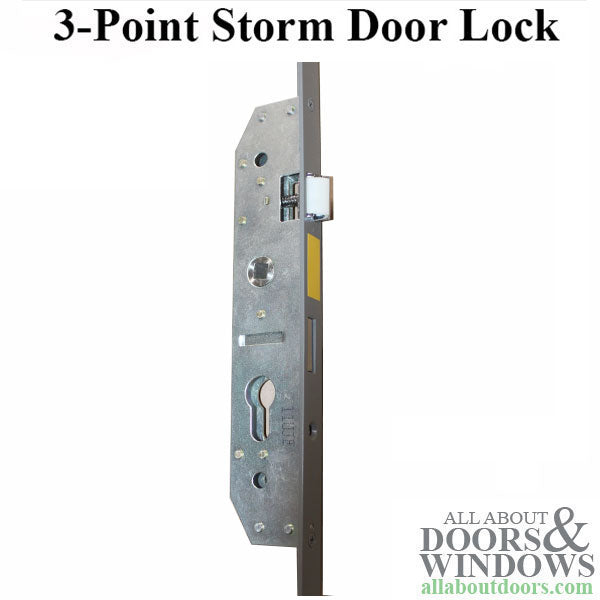

Andersen/Emco Storm Door Multipoint Lock – 27mm Backset, 63mm PZ, Right Hand, White

SKU: 42539

$155.67 - $155.67

$155.67

$155.67 - $155.67

$155.67

PZ: 2-1/2" (63mm)
Backset: 1-1/16" (27mm)
Faceplate Width: 13/16" (21mm)
Faceplate Length: 59-15/16" (1523mm)
Deadbolt Throw: 3/8" (10mm)
Deadbolt Spread: 48-3/8" (1229mm) top to bottom
Spindle Hub: 5/16" (8mm)
Handing: Right Hand (can be changed by rotating spring latch)
Faceplate Color: White
Features 2 hooks and deadbolt for 3-point locking
Can also be used as single point lock with deadbolt at handle only
Fits Andersen/Emco 4000 series storm doors

Not sure this is the right part?

Before you order, if you'd like confidence this is the right part for your job, please fill out our multipoint lock identifier form or call us at (816) 221-6543 .

*We have a fully-staffed customer support team happy to help!

Product Details

Andersen/Emco Storm Door MPL – RH, White (42539)

This Andersen/Emco multipoint lock is designed for 4000 series storm doors and provides versatile security options. The lock can function as either a single point lock with just the deadbolt at the handle, or as a full 3-point locking system utilizing the upper and lower deadbolts along with the center deadbolt.

The right-hand configuration comes factory-set, but handing can be changed in the field by loosening the faceplate screws and rotating the spring latch. This flexibility makes installation and replacement straightforward for most applications.

Technical Information

PZ (Handle to Cylinder): 2-1/2 inches (63mm)
Backset: 1-1/16 inches (27mm)
Faceplate Width: 13/16 inches (21mm)

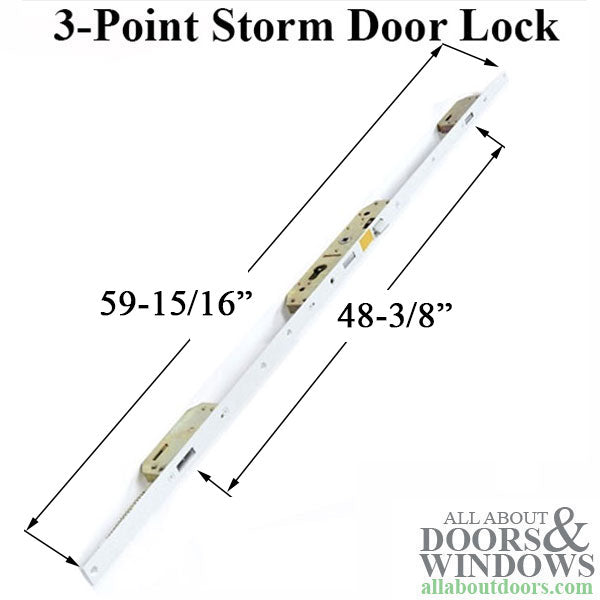

Faceplate Length: 59-15/16 inches (1523mm)
Deadbolt Throw: 3/8 inches (10mm)
Deadbolt Spread: 48-3/8 inches (1229mm) top to bottom
Spindle Hub: 5/16 inches (8mm)
Locking Points: 2 hooks and deadbolt (3-point capable)
Handing: Right Hand (reversible)
Faceplate Color: White

Notes

Compatible with Andersen/Emco 4000 series storm doors
Handing can be reversed by loosening faceplate screws and rotating the spring latch
Faceplate available in white or gray

Fill out our MPL form or call us to ensure accurate purchasing and correct fit.

Frequently Asked Questions

Can I change the handing on this lock?

Yes, the handing can be changed by loosening the faceplate screws and rotating the spring latch to reverse the orientation.

Can this lock be used as a single point lock instead of multipoint?

Yes, this lock can function as either a single point lock using only the deadbolt at the handle, or as a full 3-point locking system with the upper and lower deadbolts engaged.

What doors is this lock compatible with?

This multipoint lock is designed for Andersen/Emco 4000 series storm doors.
