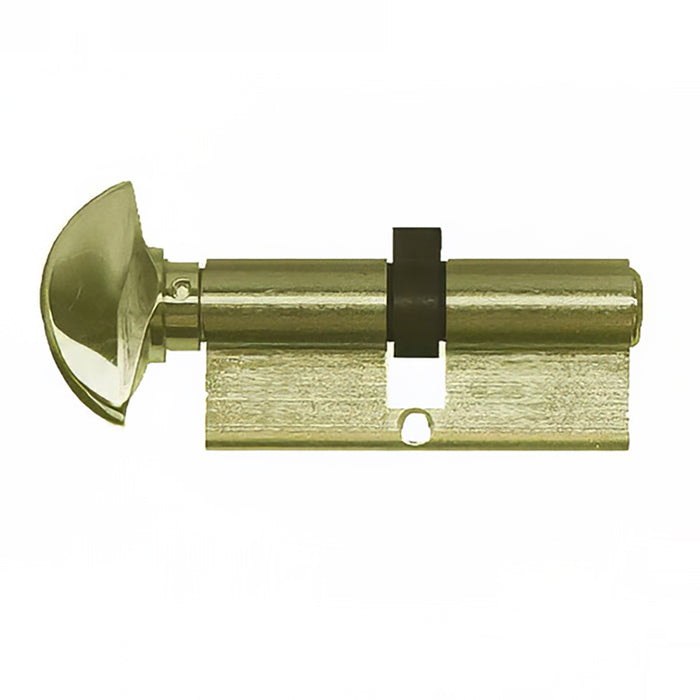

Hoppe 90° Keyed Profile Cylinder with Crescent Knob – Rustic Umber

SKU:

$109.81 - $237.84

$109.81

$109.81 - $237.84

$109.81

Type: 90° Non-Logo Keyed Profile Cylinder with Crescent Knob
Inside Distance: 1-13/16" (45.5mm)
Outside Distance: 1-13/16" (45.5mm)
Overall Length: 3-5/8" (91mm)
Door Thickness: 2-1/8" to 3" (54mm to 76mm)
Keyway: Schlage C, 5-Pin
Finish: Rustic Umber (F8709)
Rekeyable cylinder
Includes 2 keys and 90° release tool
Can be converted to 360° cylinder

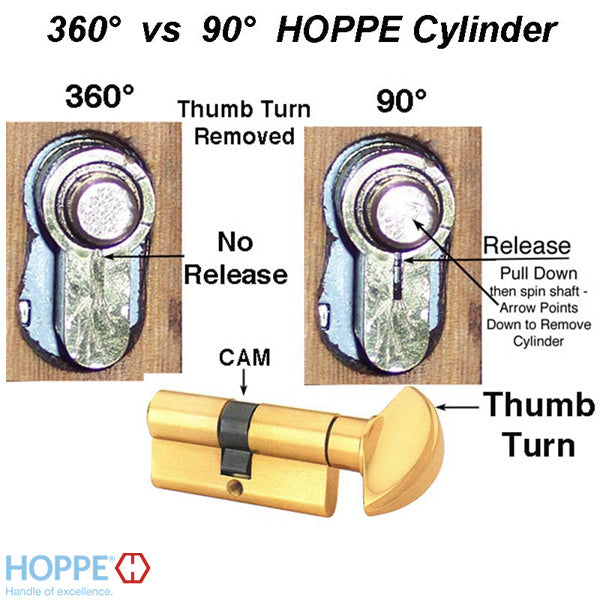

New style 90° design shows lock status at a glance

Discontinued and no longer available

Quantity

Not sure this is the right part?

Before you order, if you'd like confidence this is the right part for your job, please call us at (816) 221-6543 .

*We have a fully-staffed customer support team happy to help!

Product Details

Hoppe 90° Keyed Cylinder – Rustic Umber (414545010)

This Hoppe 90° non-logo keyed profile cylinder features a crescent knob thumb turn and is designed for doors between 2-1/8 inches and 3 inches thick. The new-style 90-degree design allows homeowners to quickly see whether the door is locked or unlocked just by looking at the thumb turn position.

The cylinder uses a Schlage C 5-pin keyway and is rekeyable, giving you flexibility for key management. Each cylinder comes complete with 2 keys and a 90-degree release tool for installation. If needed, this cylinder can be converted to a 360-degree cylinder.

Technical Information

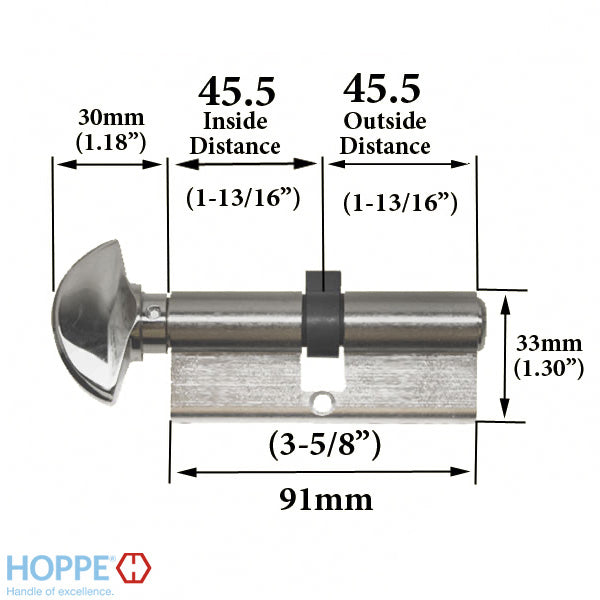

Inside Distance: 1-13/16 inches (45.5mm)
Outside Distance: 1-13/16 inches (45.5mm)
Overall Length: 3-5/8 inches (91mm)
Door Thickness Range: 2-1/8 inches to 3 inches (54mm to 76mm)
Keyway: Schlage C, 5-Pin
Rekeyable: Yes
Convertible: Can be converted to 360° cylinder

Notes

Finish: Rustic Umber (F8709)

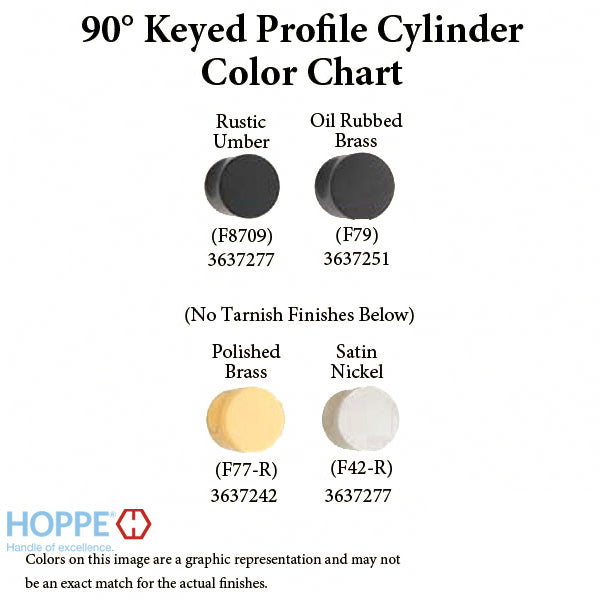

Other available finishes: Oil Rubbed Brass (F79), Polished Brass (F77-R), Satin Nickel (F42-R)
Some colors may be special order with longer shipping times
Resista no-tarnish finishes available in Polished Brass and Satin Nickel

Includes 2 keys and 90° release tool.

Fill out our MPL form or call us to ensure accurate purchasing and correct fit.

Frequently Asked Questions

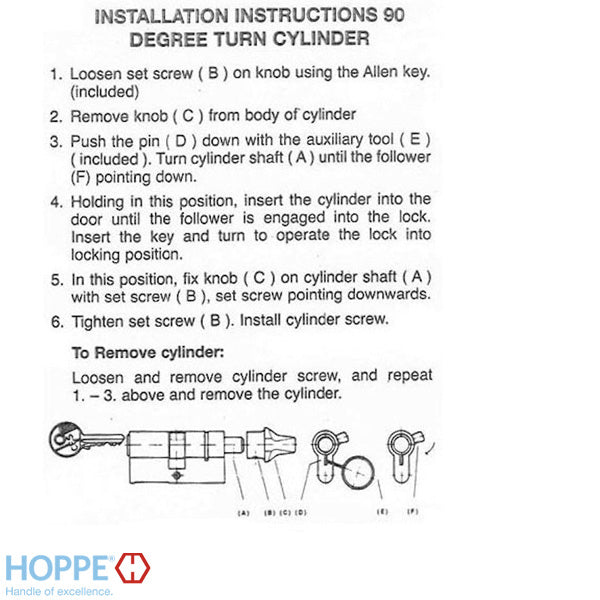

How do I install this Hoppe keyed cylinder?

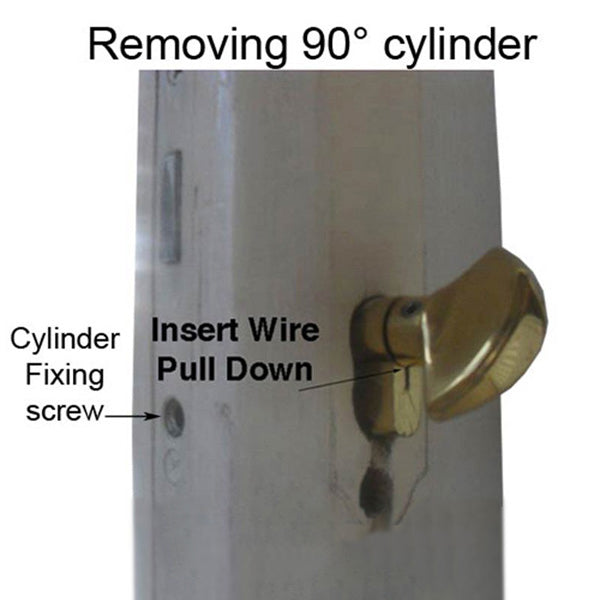

Remove the thumb turn, insert the auxiliary tool and pull down on the release tab, turn the cam and insert into the lock, then replace the thumb turn.

Can I rekey this cylinder to match my existing keys?

Yes, this cylinder is rekeyable and uses a Schlage C 5-pin keyway, allowing you to rekey it to match other Schlage C keys.

What is the benefit of the 90-degree thumb turn design?

The 90-degree design allows you to quickly see whether the door is locked or unlocked just by looking at the thumb turn position.
