Hoppe 90-Degree Keyed Cylinder with Crescent Knob – Non-Logo Profile

Hoppe 90-Degree Keyed Cylinder with Crescent Knob – Non-Logo Profile

SKU:

$206.99 - $234.42
$206.99
$206.99 - $234.42
$206.99
  • Type: 90-degree non-logo profile keyed cylinder with crescent knob
  • Inside Distance: 1-25/32" (45.5mm)
  • Outside Distance: 1-1/4" (31.5mm)
  • Overall Length: 3-1/8" (77mm)
  • Door Thickness: 2-1/8" to 3" (54mm to 76mm)
  • New style 90-degree thumb turn shows lock status at a glance
  • Can be converted to 360-degree cylinder
  • Available in Rustic Umber, Oil Rubbed Brass, Polished Brass, and Satin Nickel
  • Some colors may be special order with longer shipping times
  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Visa
Not sure this is the right part?
Before you order, if you'd like confidence this is the right part for your job, please call us at (816) 221-6543 .
*We have a fully-staffed customer support team happy to help!

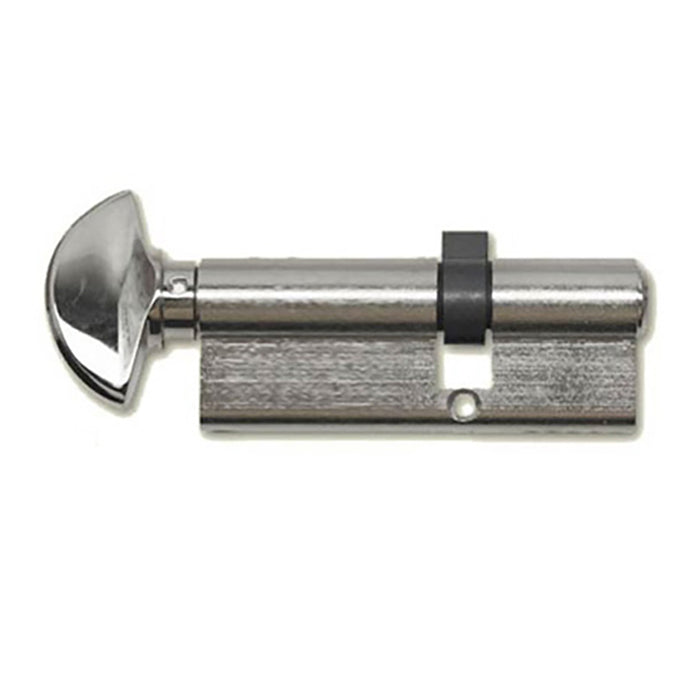

Hoppe Keyed Cylinder with Crescent Knob – 90° (414531010)

This Hoppe 90-degree non-logo profile keyed cylinder features a crescent knob design and is compatible with doors ranging from 2-1/8 inches to 3 inches thick. The new-style 90-degree thumb turn allows you to quickly see whether the door is locked or unlocked just by looking at the position of the turn.

This cylinder can be converted to a 360-degree cylinder if needed, providing flexibility for different installation preferences.

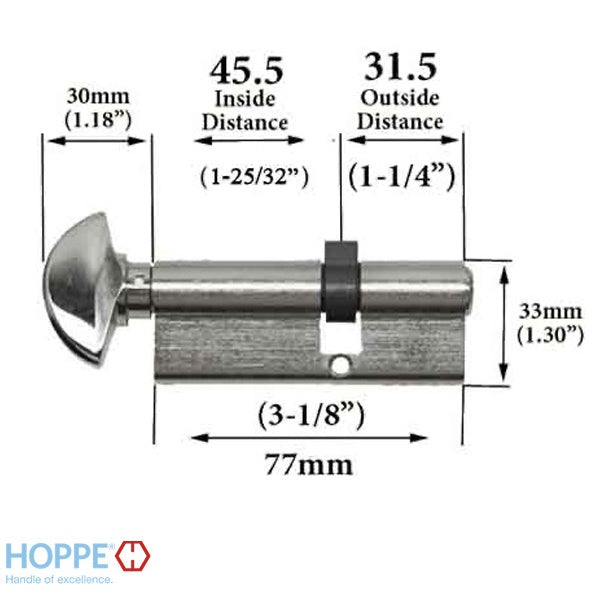

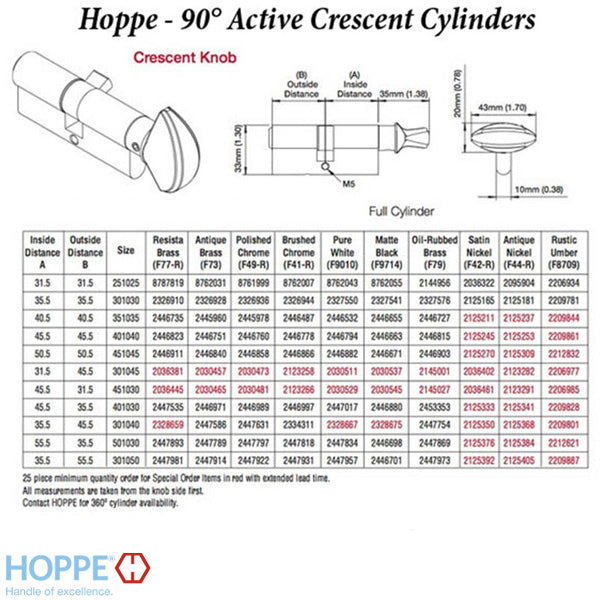

Technical Information

  • Inside Distance: 1-25/32 inches (45.5mm)
  • Outside Distance: 1-1/4 inches (31.5mm)
  • Overall Length: 3-1/8 inches (77mm)
  • Door Thickness Range: 2-1/8 inches to 3 inches (54mm to 76mm)

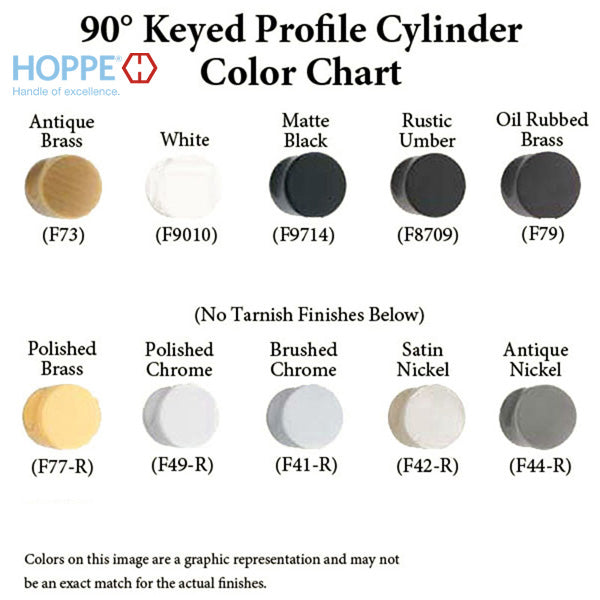

Notes

  • Rustic Umber (F8709)
  • Oil Rubbed Brass (F79)
  • Polished Brass (F77-R) – Resista no-tarnish finish
  • Satin Nickel (F42-R) – Resista no-tarnish finish
  • Some colors may be special order, resulting in longer shipping times

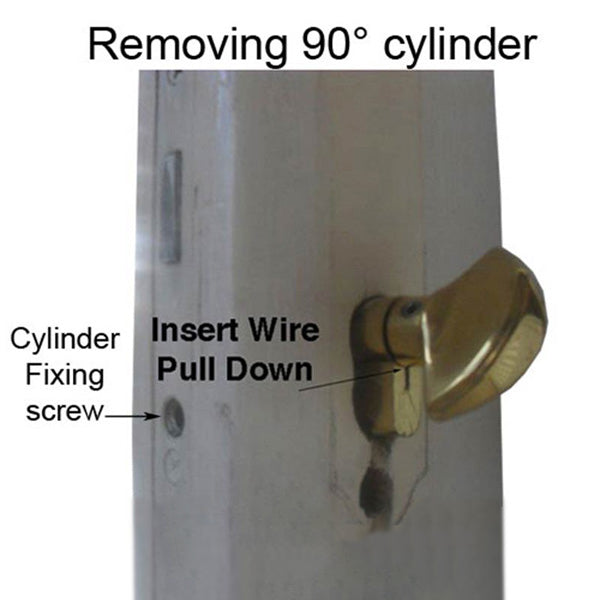

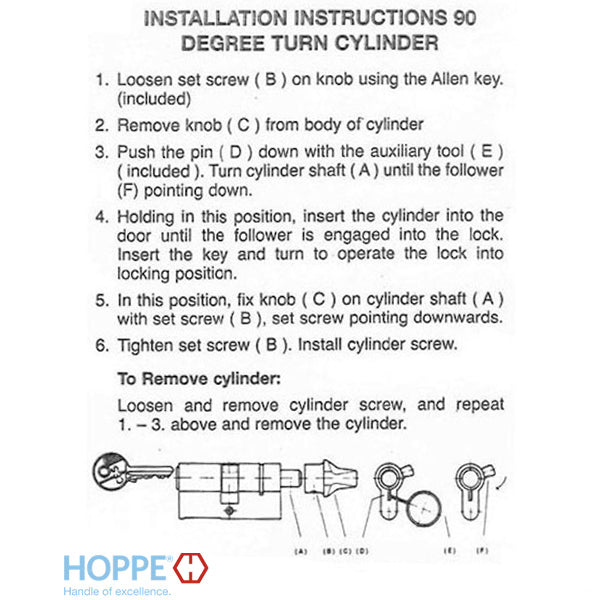

Installation Instructions

  • Remove thumb turn
  • Insert auxiliary tool and pull down on release tab
  • Turn cam and insert into lock
  • Replace thumb turn

For detailed installation and rekeying guidance, see the Hoppe Cylinder Installation video and Hoppe Cylinder Rekeying video.

Fill out our MPL form or call us to ensure accurate purchasing and correct fit.

Frequently Asked Questions

How do I know if my door is locked with this cylinder?

The 90-degree thumb turn design allows you to see at a glance whether the door is locked or unlocked based on the position of the turn.

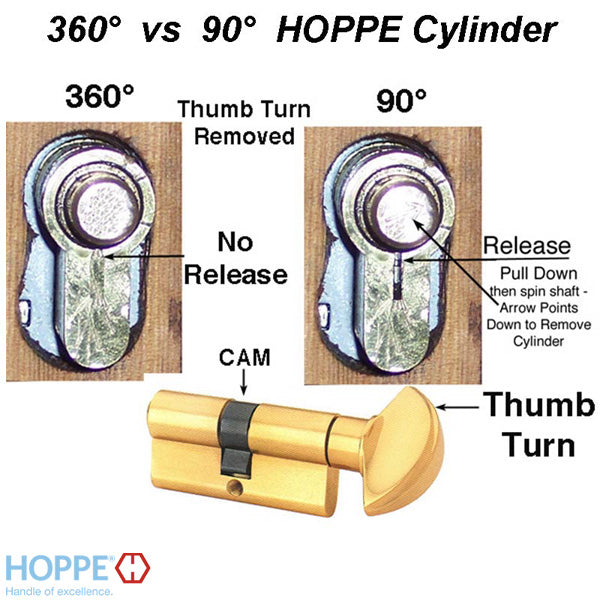

Can this cylinder be converted to a 360-degree cylinder?

Yes, this 90-degree cylinder can be converted to a 360-degree cylinder if your installation requires it.

What door thickness does this cylinder fit?

This cylinder is designed for doors that are 2-1/8 inches to 3 inches thick.
