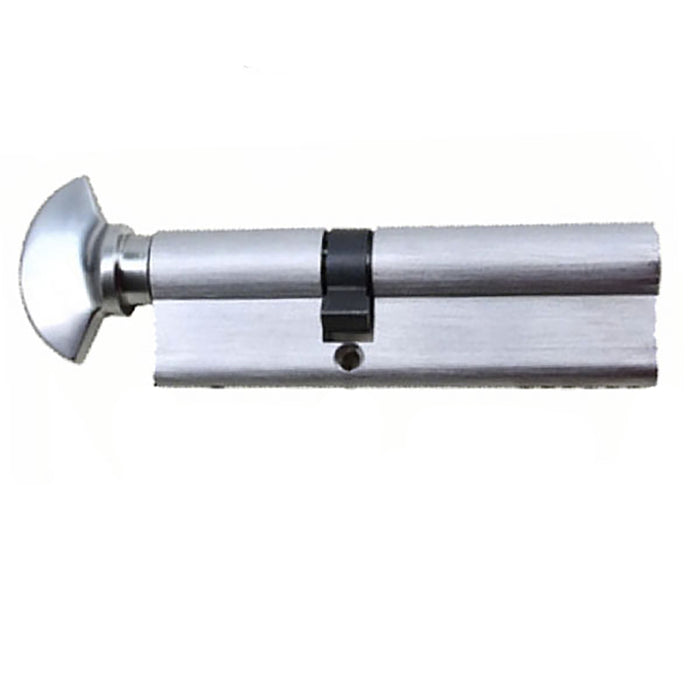

Euro Profile Thumbturn Cylinder – 60/40mm, Yale Y2 Keyway

SKU: 414060170

  • Type: Euro Profile Cylinder with Thumbturn
  • Key Side: 2-3/8" (60mm)
  • Thumbturn Side: 1-11/16" (40mm)
  • Overall Length: 3-15/16" (100mm)
  • Keyway: Yale 6-pin, Y2
  • Finish: Satin Chrome or Brass
  • Includes 3 keys
  • Anti-pick security design
  • Thumbturn allows keyless exit from inside
  • Sold individually
Discontinued and no longer available
Not sure this is the right part?
Before you order, if you'd like confidence this is the right part for your job, please call us at (816) 221-6543 .
*We have a fully-staffed customer support team happy to help!

Euro Profile Thumbturn Cylinder – 60/40, Y2 Keyway (414060170)

This euro profile cylinder features a thumbturn on one side for convenient keyless exit from inside your home. The thumbturn design is ideal for locations requiring controlled key access from one direction while allowing easy egress from the other side—particularly valuable in emergency situations like fires when finding keys could cost precious time.

Engineered for long-term, trouble-free performance, this cylinder offers excellent resistance to forced entry with built-in anti-pick security features. It can be fitted to front, rear, or patio doors equipped with euro profile cylinder locks.

Technical Information

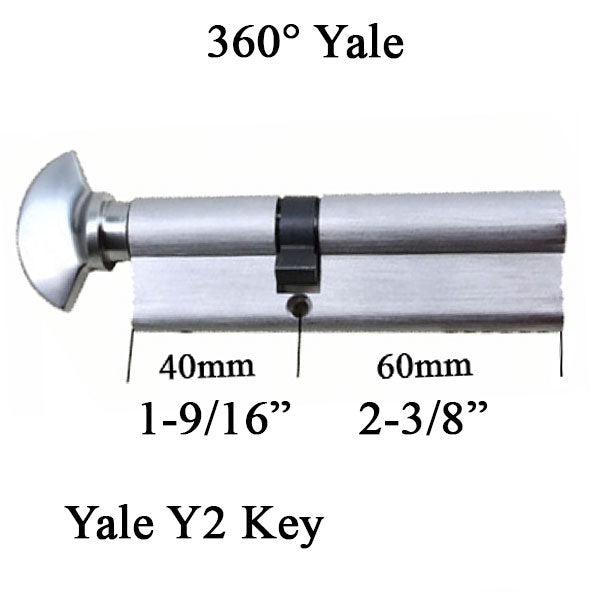

  • Key Side Length: 2-3/8 inches (60mm)
  • Thumbturn Side Length: 1-11/16 inches (40mm)
  • Overall Cylinder Length: 3-15/16 inches (100mm)
  • Keyway: Yale 6-pin, Y2
  • Keys Included: 3
  • Available Finishes: Satin Chrome or Brass

Notes

  • Cylinders come in many different sizes—it is important to measure your existing cylinder to ensure correct fit
  • To measure: Insert key and open door, remove the screw below the latch, turn key until lock moves freely, slide cylinder out, then measure from each edge to the center of the screw hole

Replaces / Replaced by

Priced and sold each.

Fill out our MPL form or call us to ensure accurate purchasing and correct fit.

Frequently Asked Questions

How do I measure my euro cylinder to find the right size?

Insert your key and open the door, remove the screw below the latch, turn the key until the lock moves freely, then slide the cylinder out. Measure from each edge to the center of the screw hole to determine both the key side and thumbturn side lengths.

Why choose a thumbturn cylinder over a double-keyed cylinder?

A thumbturn allows you to unlock the door from inside without a key, which is especially important for quick exit during emergencies like fires.

What doors is this cylinder compatible with?

This euro profile cylinder can be fitted to front, rear, or patio doors that use standard euro profile cylinder locks.
