Roto Multipoint Lock Gear – 45mm Backset, 16mm Faceplate

Roto Multipoint Lock Gear – 45mm Backset, 16mm Faceplate

SKU: 40234-45

$152.28 - $152.28
$152.28
$152.28 - $152.28
$152.28
  • Backset: 1-3/4" (45mm)
  • Faceplate Width: 5/8" (16mm)
  • Faceplate Length: 15-3/4" (400mm)
  • Compatibility: Current/new style Roto locks with teeth only – will NOT replace old style with pins
  • Works With: Roller and tongue version locks
  • Note: Door must be notched 23/32" to accept new gear box position; strike plate must be lowered 23/32"
  • Also available in 1-3/8" (35mm) backset
  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Visa
Not sure this is the right part?
Before you order, if you'd like confidence this is the right part for your job, please fill out our multipoint lock identifier form or call us at (816) 221-6543 .
*We have a fully-staffed customer support team happy to help!

Roto Multipoint Lock Gear – 45mm Backset (40234-45)

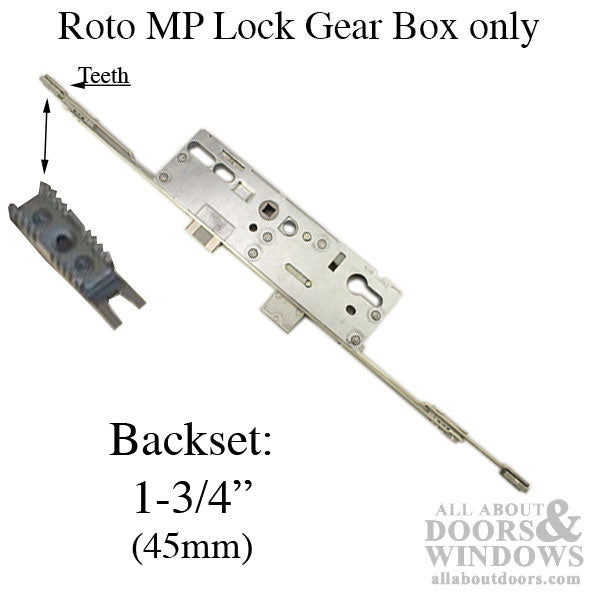

This Roto multipoint lock gear box is designed for current-style Roto locks featuring teeth. It is compatible with both roller and tongue version locks, providing a reliable replacement option for your multipoint door hardware.

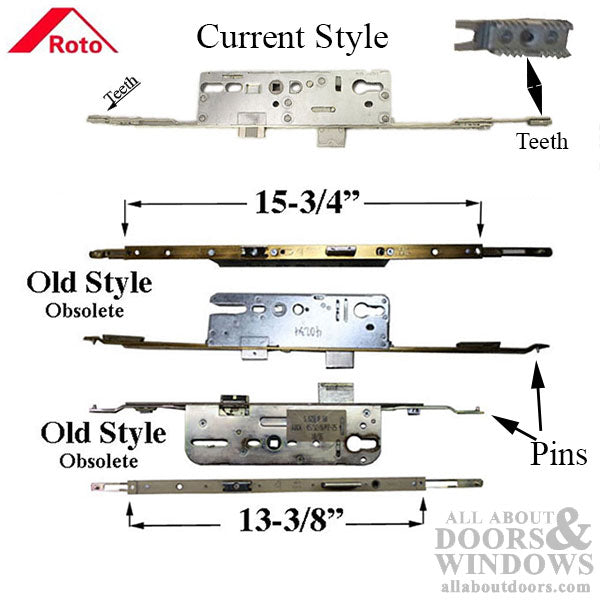

The lock case features a 1-3/4 inch (45mm) backset with a 5/8 inch (16mm) wide faceplate measuring 15-3/4 inches (400mm) in length. This is the new-style faceplate length – the older style measured 13-3/8 inches.

Technical Information

  • Backset: 1-3/4 inches (45mm)
  • Faceplate Width: 5/8 inches (16mm)
  • Faceplate Length: 15-3/4 inches (400mm)
  • Also Available: 1-3/8 inches (35mm) backset version

Notes

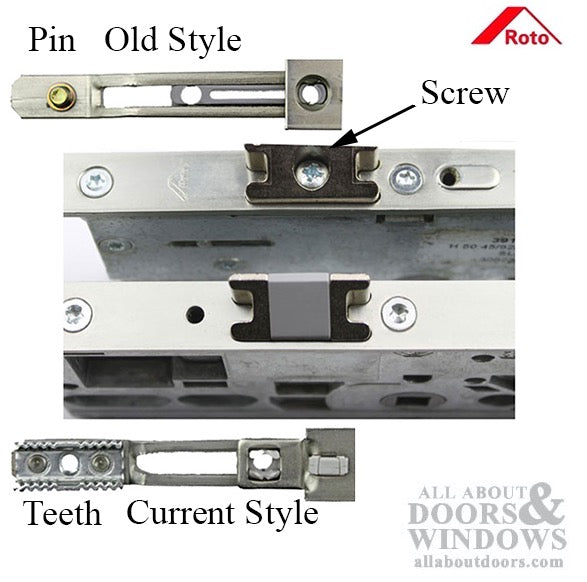

  • The old style with pins and new style with teeth are NOT interchangeable – this lock case only replaces current-style Roto locks

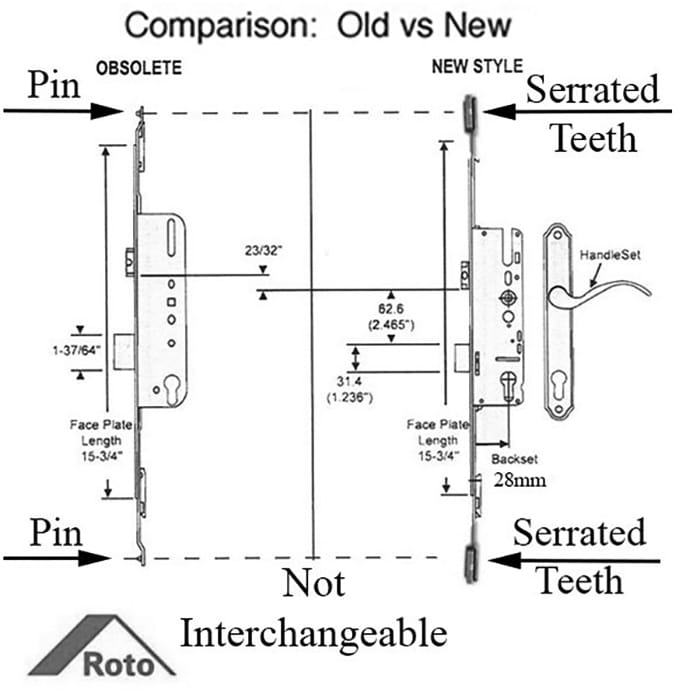

  • Door must be notched out 23/32 inches to accept the new gear box position
  • Strike plate must be lowered 23/32 inches to align with the latch and deadbolt
  • After installation, the latch and deadbolt positions differ from the old style by approximately 25/32 inches – you may need to move the strike plate or extend the slot
  • This gear works ONLY with the 15-3/4 inch faceplate and will NOT directly replace older style gears with the shorter 13-3/8 inch faceplate
  • If replacing an old-style Roto lock, the entire lock assembly must be replaced

Related Parts

  • 4990219 – Stainless steel multipoint lock for 79 inch doors (alternate replacement option)
  • 4990220 – Stainless steel multipoint lock for 93 inch doors (alternate replacement option)

Fill out our MPL form or call us to ensure accurate purchasing and correct fit.

Frequently Asked Questions

Will this lock gear replace my old-style Roto lock with pins?

No, this lock case only replaces current-style Roto locks with teeth. The old style with pins and new style with teeth are not interchangeable.

What modifications are needed to install this lock gear?

The door must be notched out 23/32 inches to accept the new gear box position, and the strike plate must be lowered 23/32 inches to align with the latch and deadbolt.

Can I reverse the handing on this Roto lock gear?

Yes, the latch direction can be reversed. Refer to the manufacturer's instructions or video guide for the rehanding procedure.
