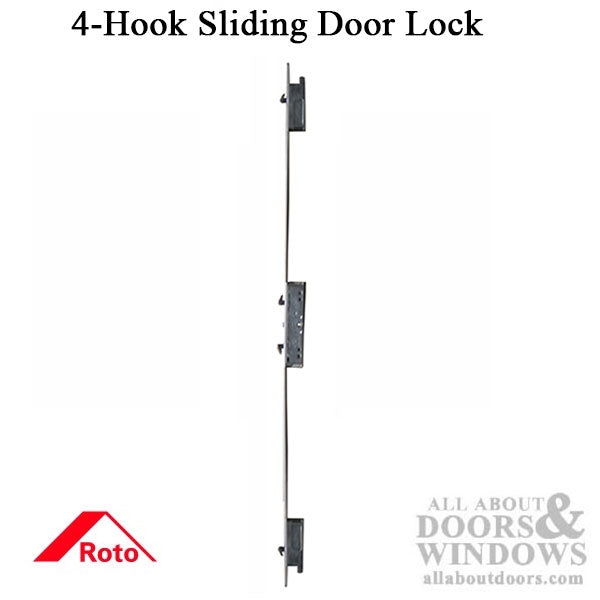

Roto Multipoint Sliding Door Lock – 4-Point Hook, 28mm Backset

SKU: 40232

$81.13 - $81.13

$81.13

$81.13 - $81.13

$81.13

Function: 4-Point Hook Multipoint Lock
Application: Sliding Patio Door

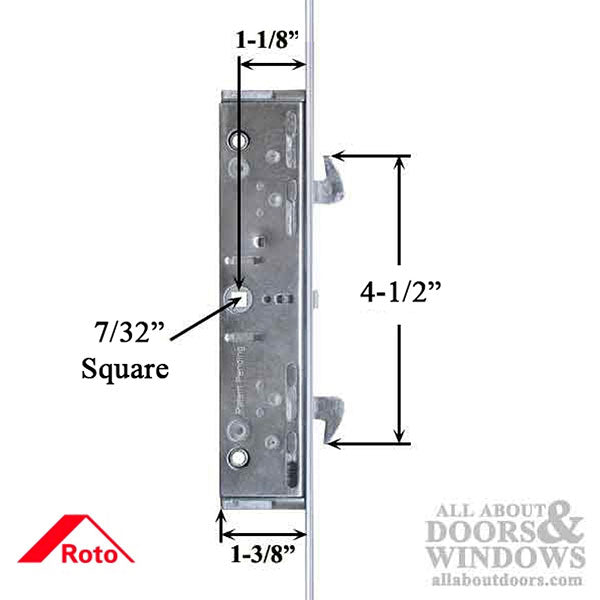

Backset: 1-1/8" (28mm)
Faceplate Width: 11/16" (17mm)

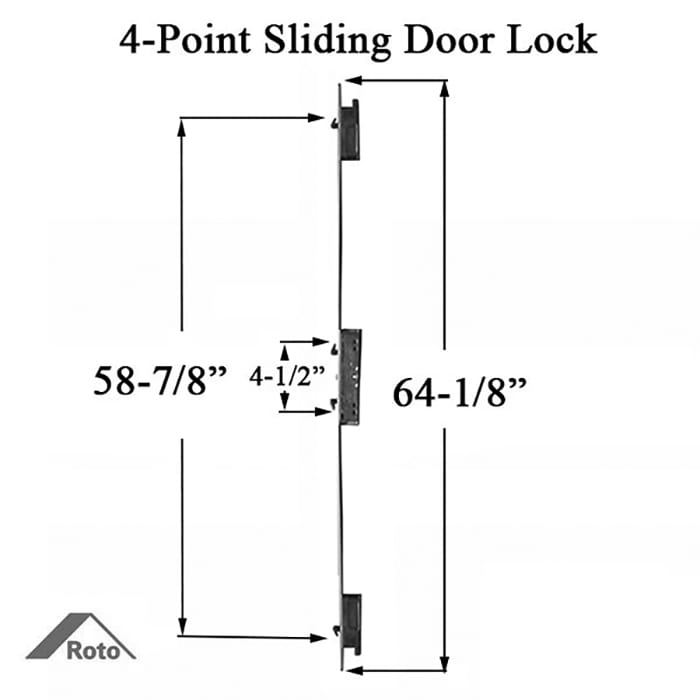

Overall Length: 64-1/8" (1628.8mm)
Center Hooks Spacing (T-T): 4-1/2" (114.3mm)
Top Hook to Bottom Hook (T-T): 58-7/8" (1495.4mm)
Spindle Hub: 7/32" (6mm)

Not sure this is the right part?

Before you order, if you'd like confidence this is the right part for your job, please fill out our multipoint lock identifier form or call us at (816) 221-6543 .

*We have a fully-staffed customer support team happy to help!

Product Details

Roto 4-Point Hook Sliding Door Lock (40232)

This Roto multipoint lock is designed specifically for sliding patio doors, featuring a 4-point hook mechanism that provides secure locking at multiple points along the door frame. The four hooks engage simultaneously to distribute force evenly and enhance security.

With a 1-1/8 inch (28mm) backset and 11/16 inch (17mm) faceplate width, this lock fits standard sliding door mortise pockets. The overall length of 64-1/8 inches (1628.8mm) accommodates full-height sliding patio doors.

Technical Information

Function: 4-Point Hook
Application: Sliding Patio Door
Backset: 1-1/8 inches (28mm)
Faceplate Width: 11/16 inches (17mm)
Overall Length: 64-1/8 inches (1628.8mm)
Center Hooks Spacing (Tip-to-Tip): 4-1/2 inches (114.3mm)
Top Hook to Bottom Hook (Tip-to-Tip): 58-7/8 inches (1495.4mm)
Spindle Hub: 7/32 inches (6mm)

Fill out our MPL form or call us to ensure accurate purchasing and correct fit.

Frequently Asked Questions

What type of door is this lock designed for?

This Roto multipoint lock is specifically designed for sliding patio doors, not hinged entry doors.

How do the four hooks work on this lock?

The four hooks engage simultaneously when the lock is operated, securing the door at multiple points along the frame for enhanced security and even force distribution.

How do I measure the backset on my sliding door?

Measure from the edge of the door to the center of the spindle hub hole. This lock requires a 1-1/8 inch (28mm) backset.
