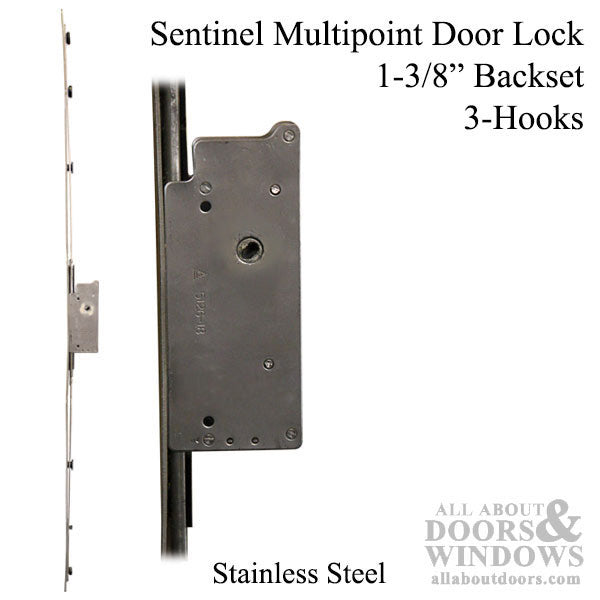

Sentinel Multipoint Sliding Door Lock – 35mm Backset, 3 Hooks, Stainless Steel

SKU: 40216

$166.17 - $166.17

$166.17

$166.17 - $166.17

$166.17

Backset: 1-3/8" (35mm)
Hooks: 3, spaced 16-7/8" (428.6mm) apart
Overall Length: 40-15/16" (1040.1mm) with radius ends
Lock Body Case: 2-1/8" x 4-7/8" (54mm x 123.8mm)

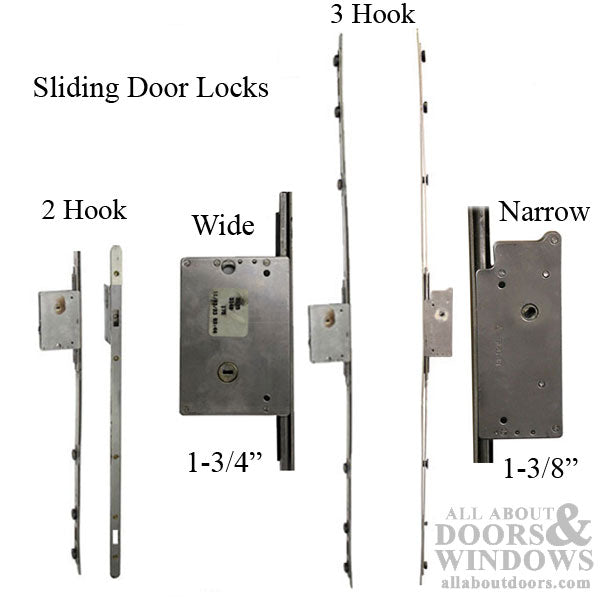

Style: Narrow style multipoint sliding door lock
Finish: Stainless Steel
Lock Case Markings: 5126-18
Compatible with Caradco, Jeld-Wen, and other sliding doors
Includes receptacles for 3 hooks
Sold individually

Not sure this is the right part?

Before you order, if you'd like confidence this is the right part for your job, please fill out our multipoint lock identifier form or call us at (816) 221-6543 .

*We have a fully-staffed customer support team happy to help!

Product Details

Sentinel Multipoint Sliding Door Lock – 35mm, 3 Hooks (40216)

This Sentinel narrow style multipoint sliding door lock is designed for sliding patio doors and features receptacles for 3 hooks. With a 35mm (1-3/8 inches) backset and an overall length of 40-15/16 inches (1040.1mm) with radius ends, this lock provides secure multi-point locking for your sliding door system.

The lock body case measures 2-1/8 x 4-7/8 inches (54mm x 123.8mm) and features a stainless steel finish for durability and corrosion resistance. The three hooks are spaced 16-7/8 inches (428.6mm) apart to distribute the locking force across the door frame.

This lock is commonly used on Caradco, Jeld-Wen, and other sliding door brands that utilize narrow style multipoint hardware.

Stamped With

5126-18 (on lock case)

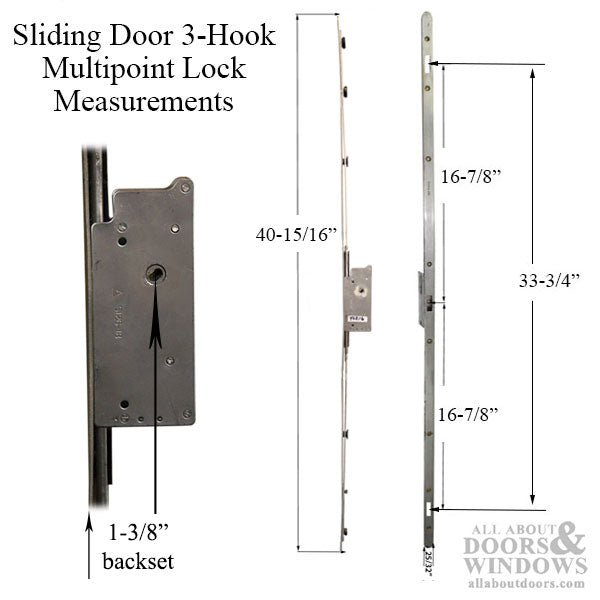

Technical Information

Backset: 1-3/8 inches (35mm)
Overall Length: 40-15/16 inches (1040.1mm)
End Style: Radius ends
Number of Hooks: 3
Hook Spacing: 16-7/8 inches (428.6mm)
Lock Body Case Dimensions: 2-1/8 x 4-7/8 inches (54mm x 123.8mm)
Finish: Stainless Steel

Notes

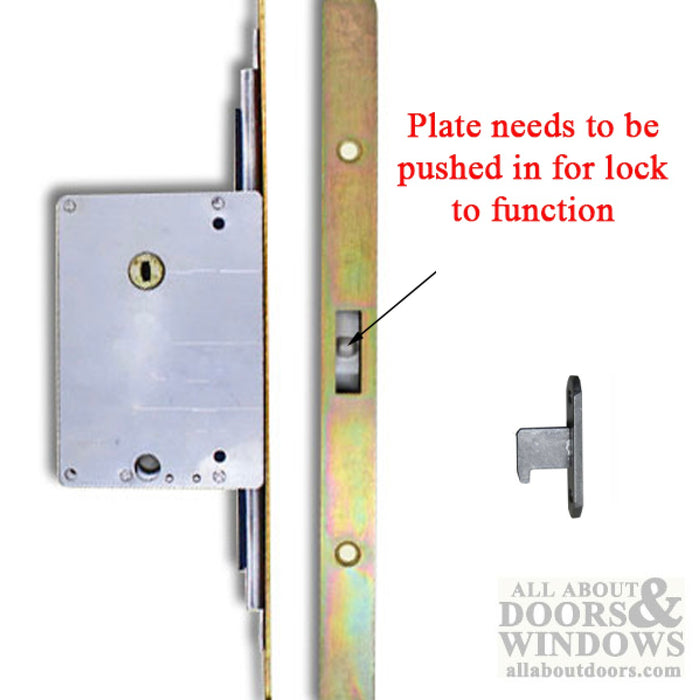

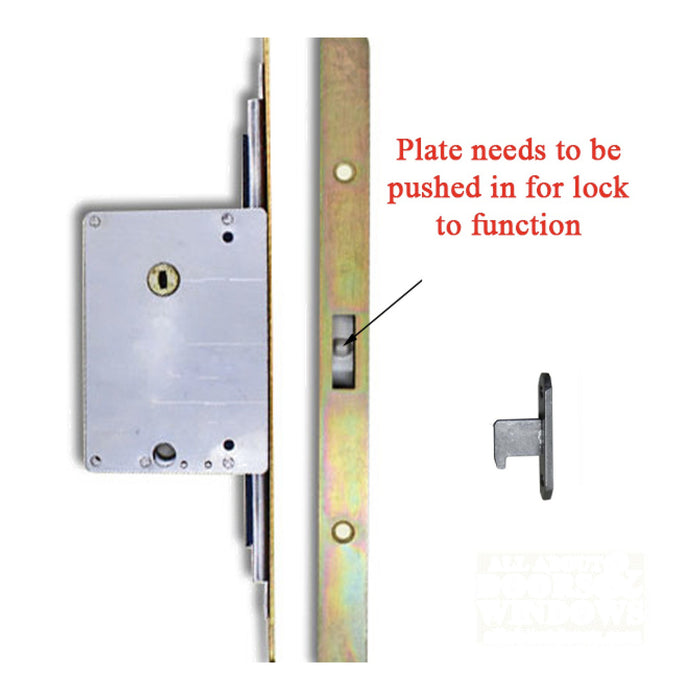

This lock uses hooks; the center hook goes into the lock case and pushes the plate back, allowing the thumb turn or key to turn and secure the door in the locked position
Before closing your door, test the lock functionality by inserting a screwdriver or pencil into the center lock hole, pushing the plate back, and testing the operation
If you have Marvin trim, you will need to use the same brand as they have a special drill hole pattern for their hardware

Related Parts

14545 - Narrow plate handleset trim, 1-1/4 inch wide
14552 - Wide plate handleset trim, 1-11/16 inch wide

Priced and sold each.

Fill out our MPL form or call us to ensure accurate purchasing and correct fit.

Frequently Asked Questions

How does this multipoint sliding door lock operate?

The center hook goes into the lock case and pushes the plate back, which allows the thumb turn or key to turn and secure the door in the locked position.

How can I test the lock before closing my door?

Insert a screwdriver or pencil into the center lock hole, push the plate back, and test the operation of the lock to ensure it functions properly.

Will this lock work with Marvin door trim?

If you have Marvin trim, you will need to use Marvin brand hardware as they have a special drill hole pattern that may not be compatible with this lock.
