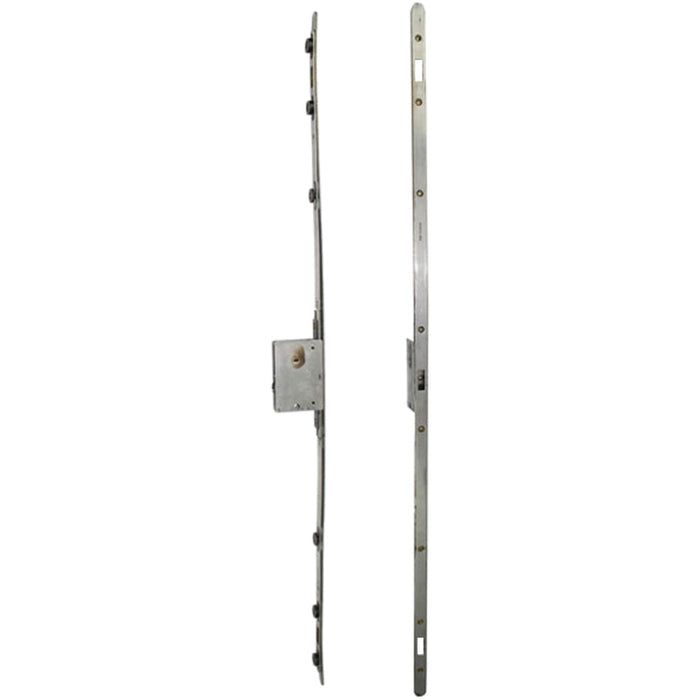

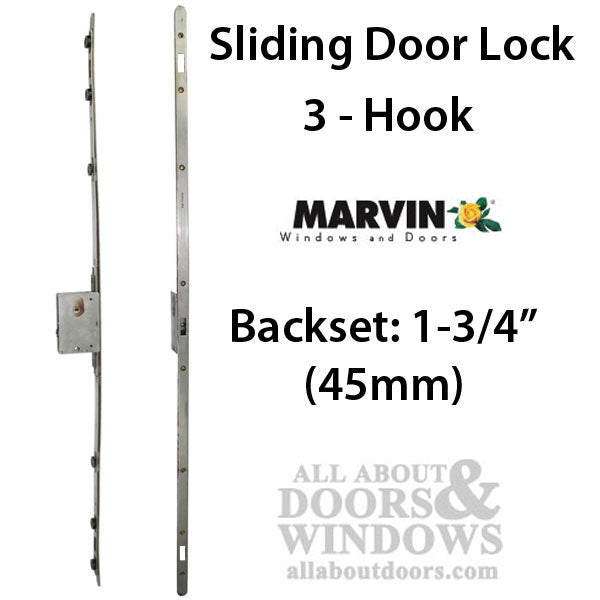

Marvin Multipoint Sliding Door Lock – 45mm Backset, 3 Hooks

Marvin Multipoint Sliding Door Lock – 45mm Backset, 3 Hooks

SKU: 40215

$104.81 - $104.81
$104.81
$104.81 - $104.81
$104.81
  • Backset: 1-3/4" (45mm)
  • Faceplate Width: 25/32" (20mm)

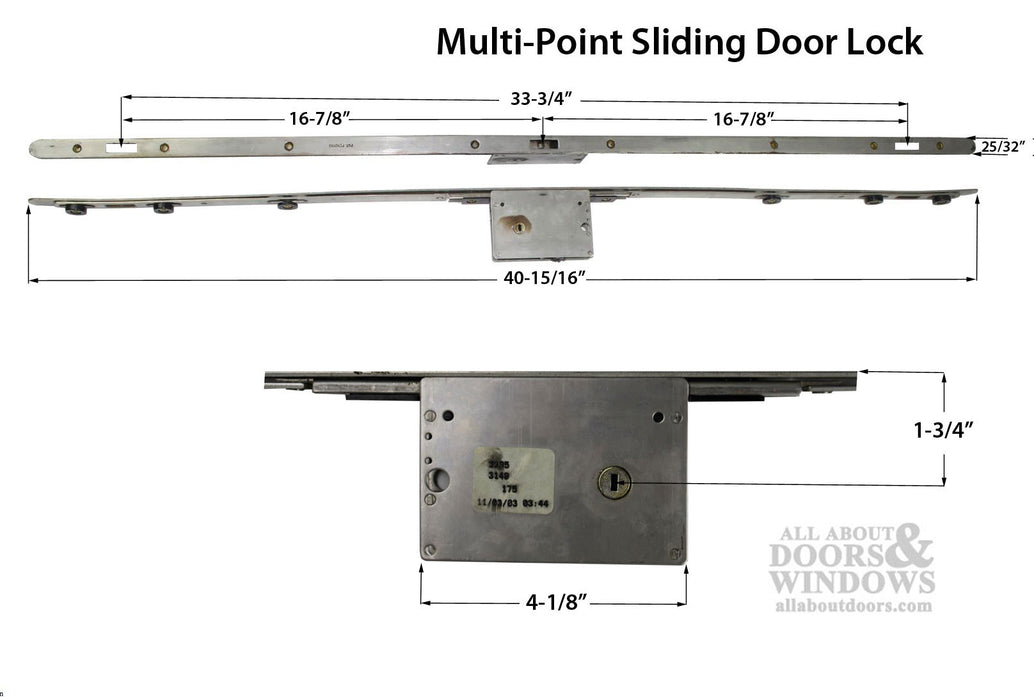

  • Overall Length: 40-15/16" (1040mm), radius ends
  • Hooks: 3, spaced 16-7/8" (429mm) apart

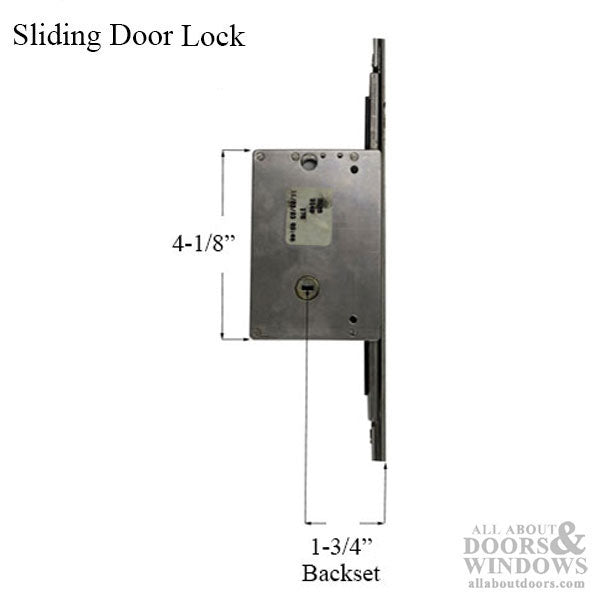

  • Lock Body Case: 4-1/8" (105mm)
  • Lock Ends: Round
  • Lock only – does not include strike plate or handleset trim
  • Marvin trim has unique 11-1/4" screw hole pattern – standard trim will not fit pre-drilled doors
  • Priced and sold as lock only
  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Visa
Not sure this is the right part?
Before you order, if you'd like confidence this is the right part for your job, please fill out our multipoint lock identifier form or call us at (816) 221-6543 .
*We have a fully-staffed customer support team happy to help!

Marvin 3-Hook Sliding Door Lock (40215)

This Marvin multipoint sliding door lock features a receptacle designed for 3 hooks, providing secure multi-point locking for your sliding door. The lock body measures 4-1/8 inches with an overall length of 40-15/16 inches and radius ends.

With a 1-3/4 inch (45mm) backset and 25/32 inch (20mm) faceplate width, this lock is engineered specifically for Marvin sliding door applications. The three hooks are spaced 16-7/8 inches apart for optimal security distribution along the door frame.

Technical Information

  • Backset: 1-3/4 inches (45mm)
  • Faceplate Width: 25/32 inches (20mm)
  • Overall Length: 40-15/16 inches (1040mm)
  • Lock Body Case: 4-1/8 inches (105mm)
  • Hook Spacing: 16-7/8 inches (429mm)
  • Number of Hooks: 3
  • Lock Ends: Round/Radius

Notes

  • This is the lock only and does not include the strike plate on the door jamb or handleset trim.

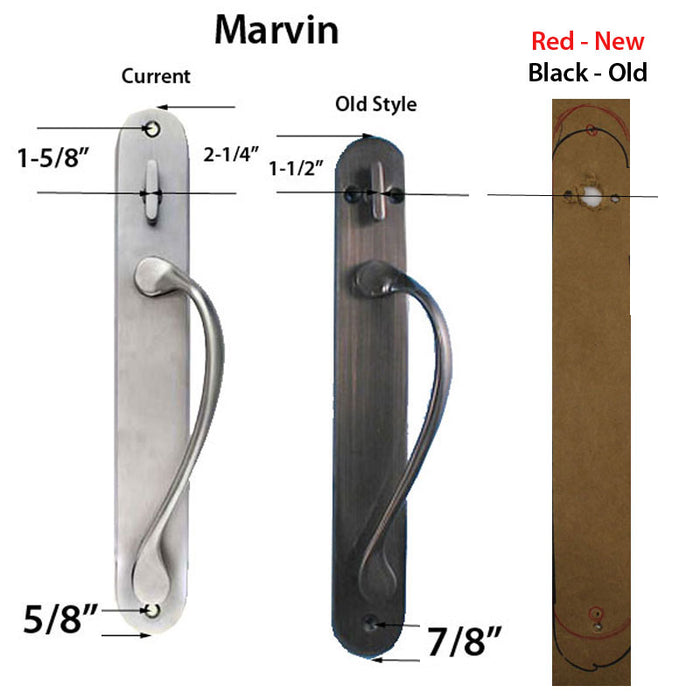

  • Marvin sliding door trim has a unique screw hole pattern measuring 11-1/4 inches from top screw hole to bottom.
  • Marvin new style and old style trim are not interchangeable without re-drilling holes. New style trim does not cover marks from old trim.
  • If your door is not pre-drilled, standard trim will work.
  • The only trim that fits the 11-1/4 inch screw hole pattern is Marvin trim.

Lock Operation

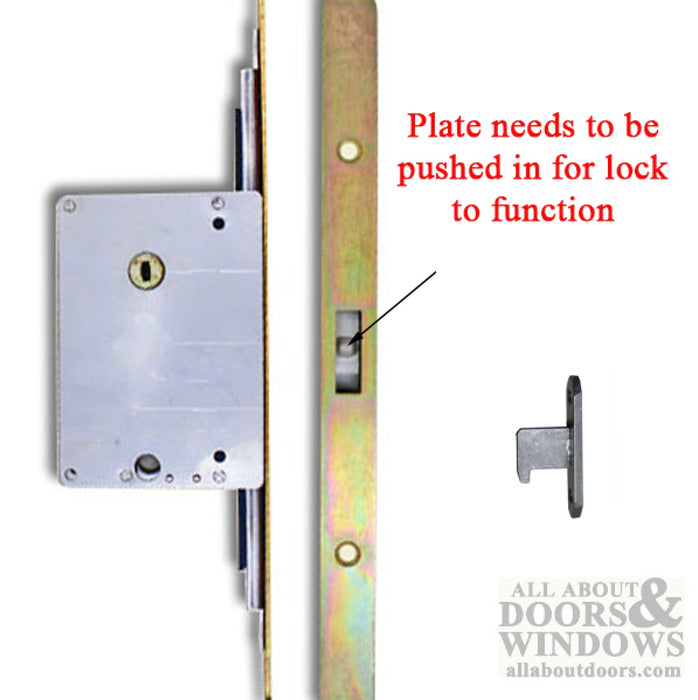

This lock uses 3 hooks. The center hook goes into the lock case and pushes the plate back, allowing the thumb turn or key to turn and secure the door in the locked position. Before closing your door, test the functionality by inserting a screwdriver into the center lock, pushing the plate back, and testing the operation.

Related Parts

  • 05700318 - Marvin 3-point lock

Priced and sold as lock only.

Fill out our MPL form or call us to ensure accurate purchasing and correct fit.

Frequently Asked Questions

Does this lock include the strike plate and handleset trim?

No, this is the lock only. The strike plate on the door jamb and handleset trim are sold separately.

Will standard trim work with this Marvin lock?

Only if your door is not pre-drilled. Marvin sliding doors have a unique 11-1/4 inch screw hole pattern that requires Marvin-specific trim.

How do I test the lock operation before installation?

Insert a screwdriver into the center lock, push the plate back, and test the thumb turn or key operation to ensure proper functionality.
