Tru-Lock Deadbolt to Multipoint Lock Conversion Kit

Tru-Lock Deadbolt to Multipoint Lock Conversion Kit

SKU: 40121

$265.41 - $265.41
$265.41
$265.41 - $265.41
$265.41
  • Type: Deadbolt to multipoint lock conversion kit
  • Deadbolt Spacing: Approximately 18-1/2" (470mm) between bolts
  • Faceplate Length: 24-5/8" (625mm)
  • Faceplate Width: 19/32" (15mm)
  • Lock Depth: 3/4" (19mm)
  • Strike Plate: 4-3/4" x 1-1/8" (121mm x 29mm)
  • Compatible with Kwikset, Schlage, Weiser, Dexter, Weslock, and other deadbolts
  • Includes strike plates
  • Priced and sold as a package
  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Visa
Not sure this is the right part?
Before you order, if you'd like confidence this is the right part for your job, please fill out our multipoint lock identifier form or call us at (816) 221-6543 .
*We have a fully-staffed customer support team happy to help!

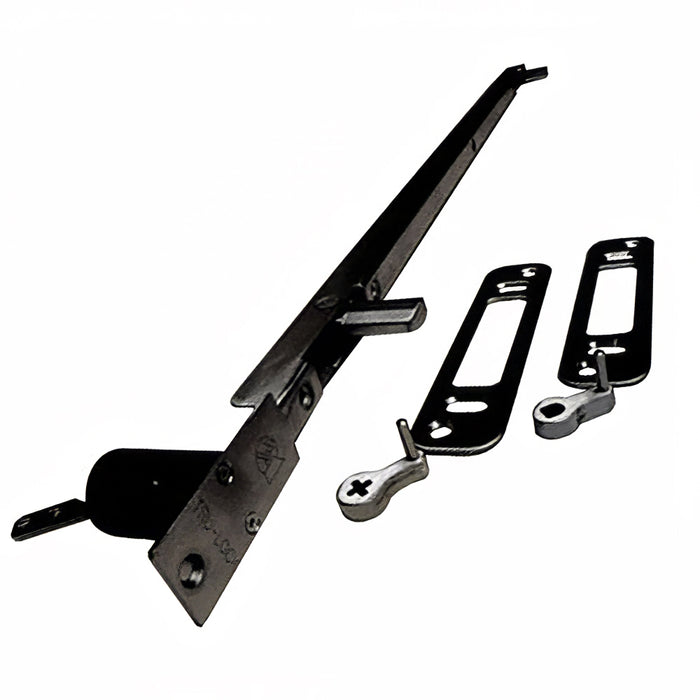

Tru-Lock Multipoint Conversion Kit (40121)

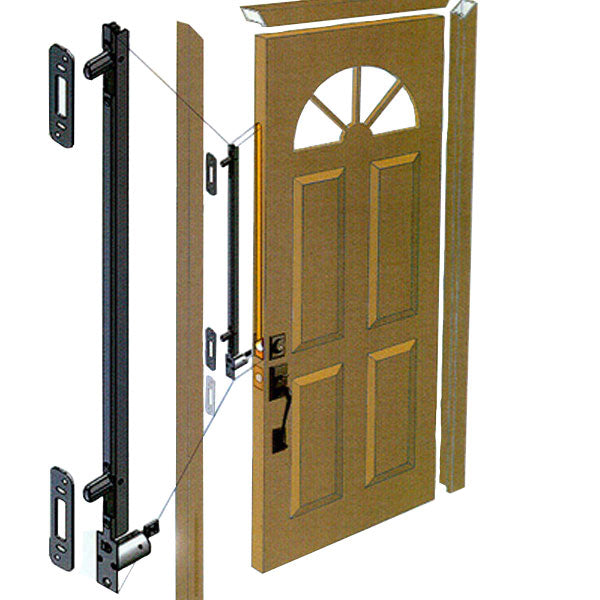

This Tru-Lock deadbolt to multipoint lock conversion kit transforms your standard single deadbolt into a multipoint-style locking system. By adding multiple locking points along the door edge, this kit enhances security, helps prevent door warpage, and creates a tighter seal against the frame.

The kit is designed for easy installation and works with popular deadbolt brands including Kwikset, Schlage, Weiser, Dexter, and Weslock. Strike plates are included for a complete installation.

Technical Information

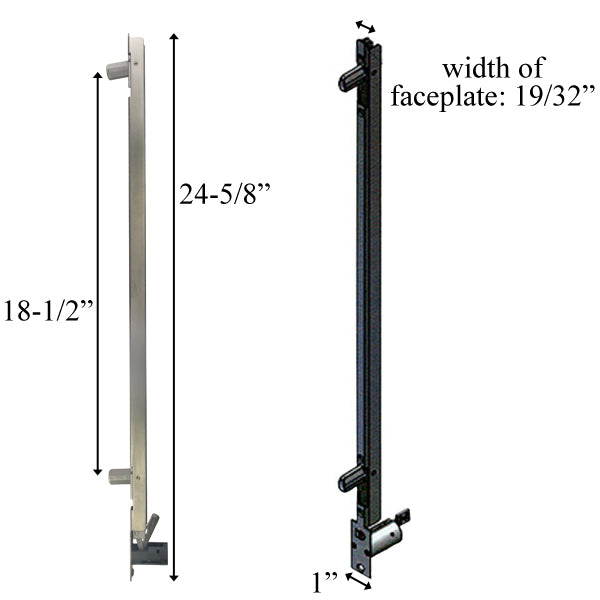

  • Deadbolt Spacing: Approximately 18-1/2 inches (470mm) between bolts
  • Faceplate Overall Length: 24-5/8 inches (625mm)
  • Faceplate Width: 19/32 inches (15mm)
  • Back Length (inside door cavity): 22-1/8 inches (562mm)
  • Bottom Wider Portion Plate Length: 2-1/4 inches (57mm)
  • Bottom Wider Portion Plate Width: 1 inch (25mm)
  • Lock Depth: 3/4 inches (19mm)
  • Strike Plate Dimensions: 4-3/4 inches x 1-1/8 inches (121mm x 29mm)
  • Round Screw Hole Spacing: 4 inches (102mm)
  • Slot Hole Spacing: 3 inches (76mm)

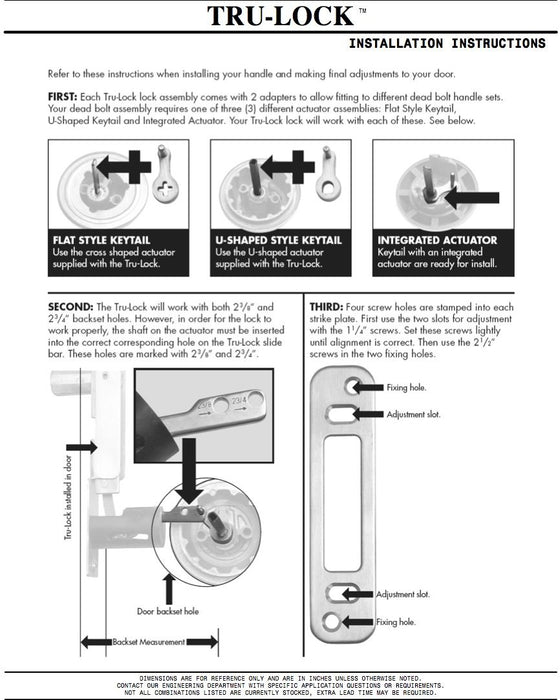

Installation Steps

  • Remove existing deadbolt lock
  • Route or mortise door edge 5/8 inches wide x 3/4 inches deep
  • Mortise strike plates
  • Install new multipoint lock

Tools Needed

  • Router with guide
  • 5/8 inch straight router bit
  • Wood chisel
  • Drill

Related Parts

  • 40122 - Installation kit with routers, fixtures, bits, etc. (ideal for contractors or handymen doing multiple installations)

Priced and sold as a package.

Fill out our MPL form or call us to ensure accurate purchasing and correct fit.

Frequently Asked Questions

What deadbolt brands does this conversion kit work with?

This kit is compatible with Kwikset, Schlage, Weiser, Dexter, Weslock, and other standard deadbolt locks.

What tools do I need to install this multipoint conversion kit?

You will need a router with guide, a 5/8 inch straight router bit, a wood chisel, and a drill.

What are the benefits of converting to a multipoint lock?

Besides adding security with multiple locking points, the multipoint lock helps prevent door warpage and creates a tighter seal against the frame.
