Schlegel Multi-Point Lock Body Replacement – 55mm Backset, 68mm Handle Spacing

SKU: 40114

  • Backset: 2-5/32" (55mm)
  • Handle Spacing: 2-5/8" (68mm)
  • Lock Body Dimensions: 3-3/8" (85.7mm) deep x 7-5/8" (193.7mm) tall
  • Slide Bar Connection: Round (not rectangular)
  • Lock body only – does not include extensions or other parts
  • Replacement for discontinued Schlegel Multi-Point Lock System
  • Sold individually
This item has been discontinued and is no longer available.
Not sure this is the right part?
Before you order, if you'd like confidence this is the right part for your job, please fill out our multipoint lock identifier form or call us at (816) 221-6543 .
*We have a fully-staffed customer support team happy to help!

Schlegel Multi-Point Lock Body Replacement (40114)

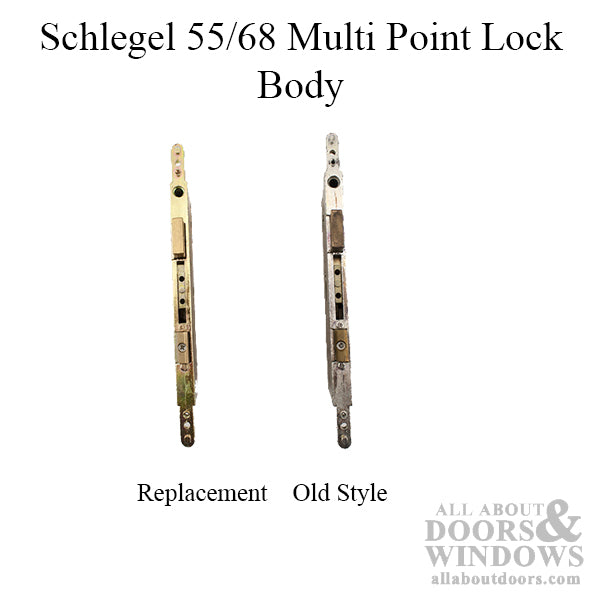

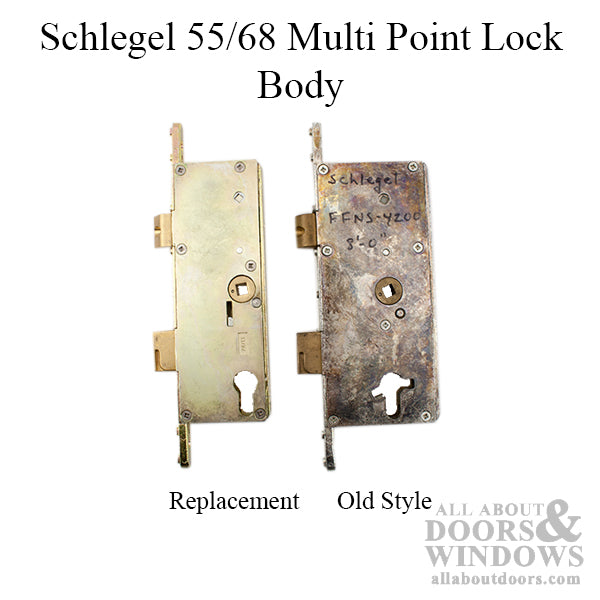

This lock body is a replacement for the discontinued Schlegel Multi-Point Lock System. It is designed as a direct replacement for the Multi-Bolt Lock and includes only the lock body – no extensions or additional parts are included.

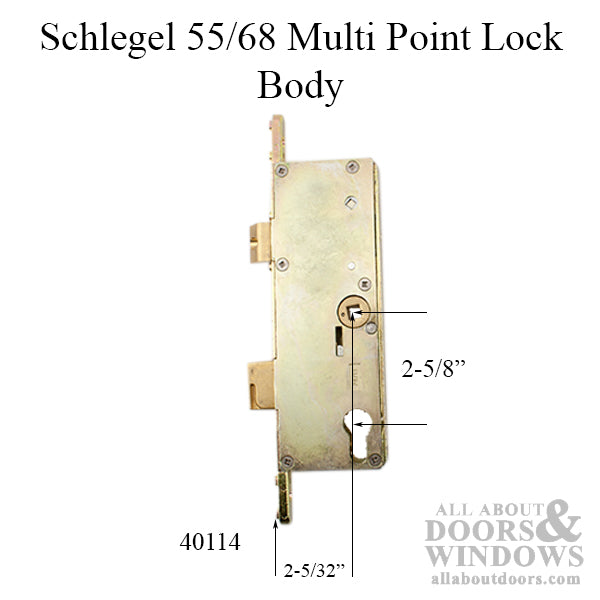

The lock body features a 2-5/32 inch (55mm) backset and a special handle spacing of 2-5/8 inches (68mm). The overall dimensions are 3-3/8 inches deep by 7-5/8 inches tall.

Technical Information

  • Backset: 2-5/32 inches (55mm)

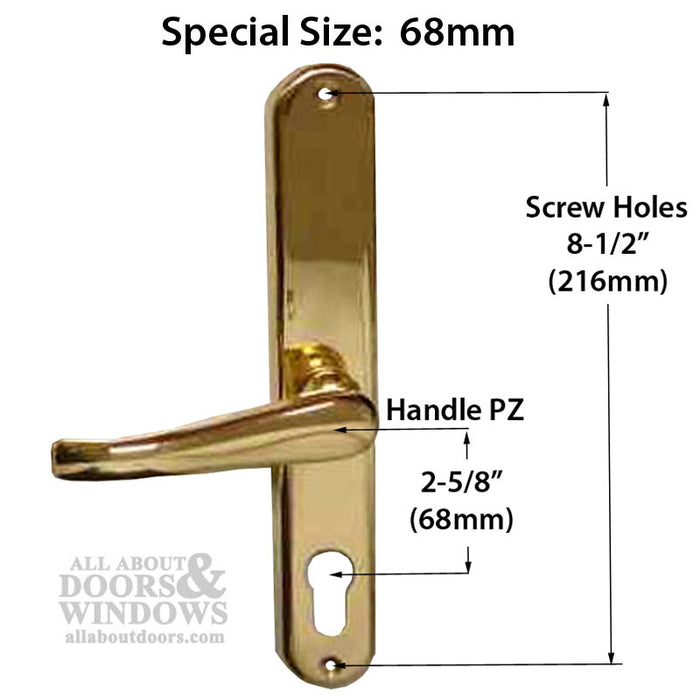

  • Handle Spacing: 2-5/8 inches (68mm)
  • Lock Body Depth: 3-3/8 inches (85.7mm)
  • Lock Body Height: 7-5/8 inches (193.7mm)
  • Slide Bar Connection: Round

Notes

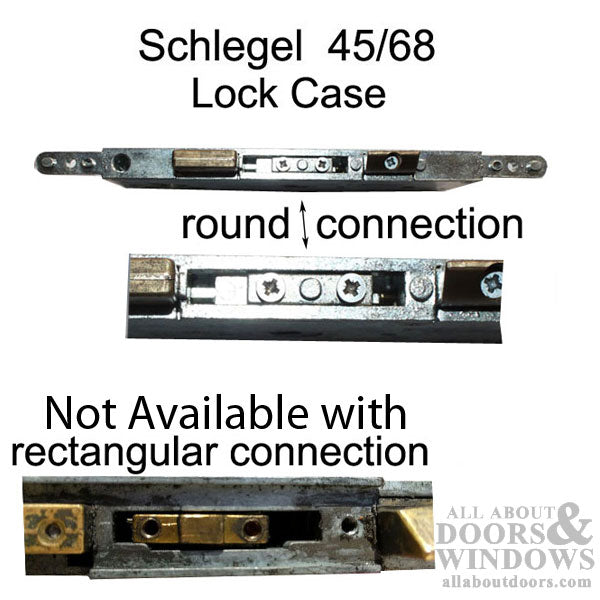

  • Some original Schlegel locks had a round connection on the slide bar while others had a rectangular connection – they are NOT interchangeable
  • This replacement has a round connection only
  • If your existing lock has a rectangular slide bar connection, this lock body will not work for your application

Related Parts

  • 401155 - Round Connection Lock (alternate part number reference)

Priced and sold each.

Fill out our MPL form or call us to ensure accurate purchasing and correct fit.

Frequently Asked Questions

How do I know if this lock body will fit my door?

Check your existing lock for a round slide bar connection. If your lock has a rectangular connection, this replacement will not work. Also verify your backset is 2-5/32 inches (55mm) and handle spacing is 2-5/8 inches (68mm).

Does this include extensions or other parts?

No, this is the lock body only. Extensions and other components must be purchased separately.

What is the difference between round and rectangular slide bar connections?

The slide bar connection shape determines compatibility with your existing hardware. Round and rectangular connections are not interchangeable, so you must match the connection type of your original lock.
