Trilennium Passive Handleset Trim with T-Turn Drive – 6" Handle to Cylinder Spacing

Trilennium Passive Handleset Trim with T-Turn Drive – 6" Handle to Cylinder Spacing

SKU

$201.38 - $314.30
$201.38
$201.38 - $314.30
$201.38
  • Handle to Cylinder Spacing: 6" (152.4mm)
  • Door Thickness: 1-3/4" (45mm)
  • Escutcheon Plate Width: 2-7/16" (61.9mm)
  • Escutcheon Plate Length: 10" (254mm)
  • Crossbore Options: 1-11/16" or 2-1/8"
  • Screw Hole Spacing: 5-3/8" (136.5mm)
  • Passive handleset trim with T-Turn drive
  • Works exclusively with Trilennium 3020 series inactive panel multipoint lock
  • Lever handles do NOT move on this handleset
  • Operated by thumb turn only
Visa Mastercard American Express Discover
Estimated Delivery
Between December 11 and December 15
*Delivery dates are estimates and may vary based on availability and shipping method

Trilennium Passive Handleset Trim – T-Turn, 6" Spacing (40074)

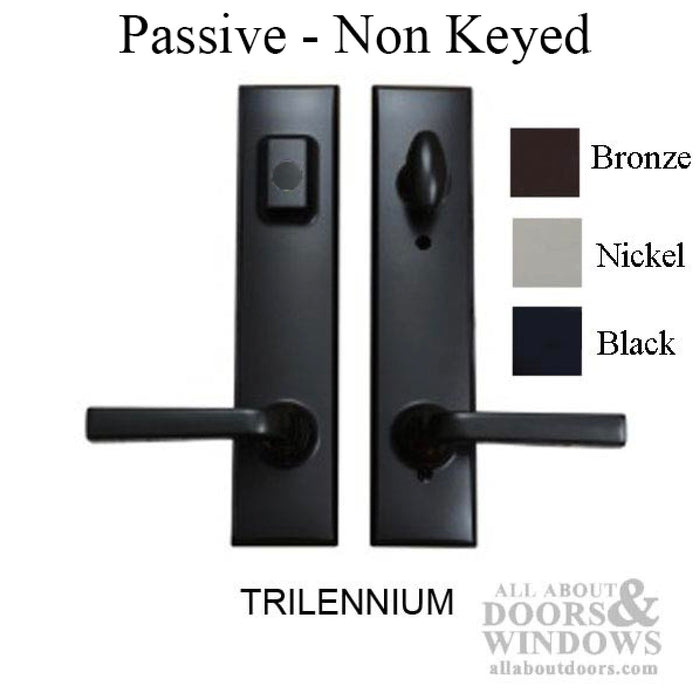

This Trilennium Passive Handleset Trim with T-Turn Drive is designed specifically for use with the Trilennium 3020 series Inactive Panel Multipoint Lock. The handleset is operated by the thumb turn mechanism, and the lever handles on this trim are non-functional and do not move.

The escutcheon plate measures 2-7/16 inches (61.9mm) wide by 10 inches (254mm) long, making it suitable for covering standard crossbore sizes. This trim accommodates both 1-11/16 inch and 2-1/8 inch crossbore configurations.

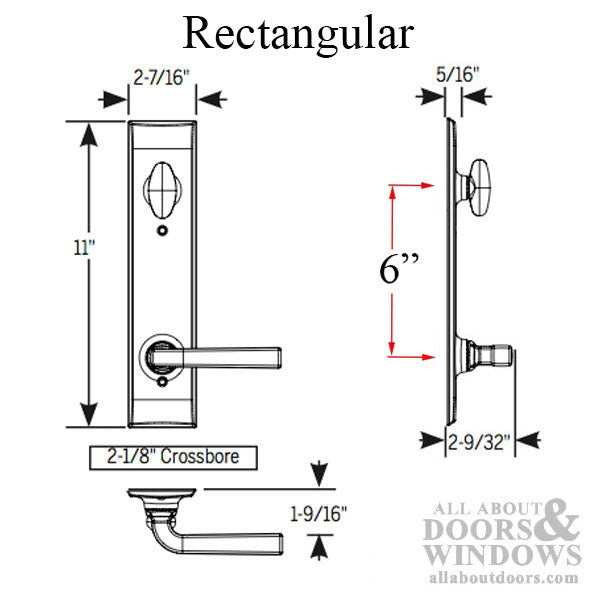

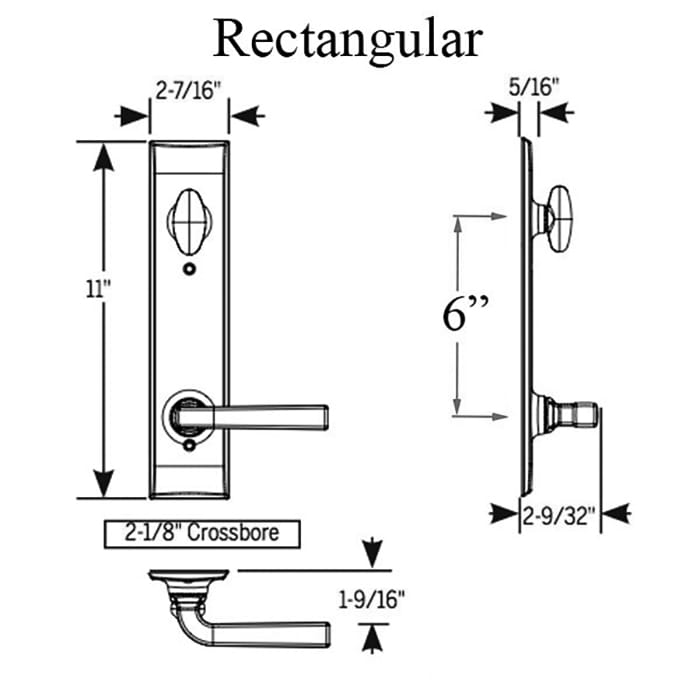

Technical Information

  • Handle to Cylinder Spacing: 6 inches (152.4mm)
  • Door Thickness: 1-3/4 inches (45mm)
  • Escutcheon Plate Width: 2-7/16 inches (61.9mm)
  • Escutcheon Plate Length: 10 inches (254mm)
  • Crossbore Compatibility: 1-11/16 inches or 2-1/8 inches
  • Screw Hole Spacing: 5-3/8 inches (136.5mm)

Notes

  • Standard crossbore on most W&F or Endura hardware is 1-11/16 inches. Some doors use a 2-1/8 inch bore.
  • Pella Entry Door Cross Bore: 2-1/8 inches standard
  • Peachtree lPD Cross Bore: 1-11/16 inches standard

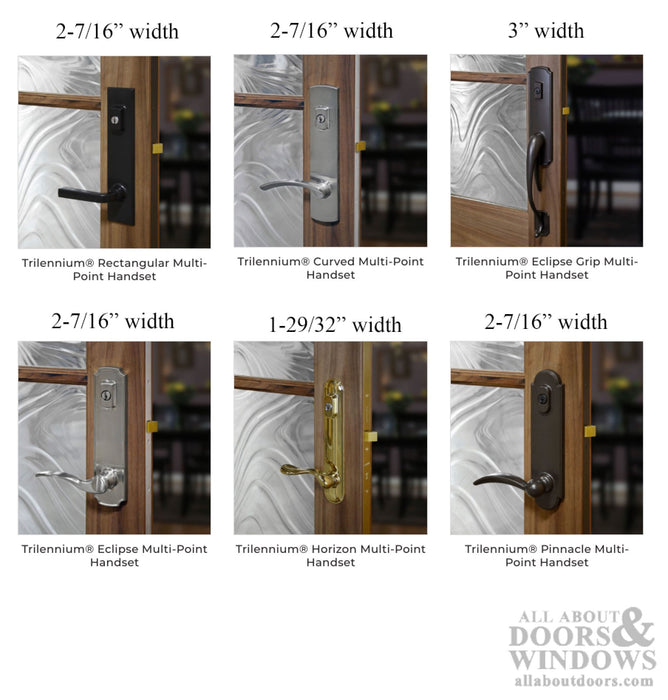

  • Handleset trim for 2-1/8 inch crossbore: Pinnacle, Eclipse, Rectangular, and Grip Hardware
  • Handleset trim for 1-11/16 inch crossbore: Full W&F line including Horizon and some Emtek with 2-inch wide plates
  • Satin Nickel finish available in standard plated or TriLast finish which resists tarnishing and discoloration

Available Part Numbers

  • RECL-THT-PB-175: Bright Brass
  • RECL-THT-SN-175: Satin Nickel
  • RECL-THT-VB-175: Victorian Bronze
  • RECL-THT-BK-175: Black Powder Coat
  • RECL-THT-SNTL-175: Satin Nickel, TriLast Finish
  • RECL-THT-VBTL-175: Victorian Bronze, TriLast Finish

Priced and sold each.

Fill out our MPL form or call us to ensure accurate purchasing and correct fit.

Frequently Asked Questions

Will the lever handles move on this handleset?

No, the lever handles on this passive handleset trim are non-functional and do not move. The lock is operated exclusively by the thumb turn.

What lock does this handleset work with?

This handleset trim works exclusively with the Trilennium 3020 series Inactive Panel Multipoint Lock. It is not compatible with other multipoint lock systems.

What crossbore size do I need for this handleset?

This trim accommodates both 1-11/16 inch and 2-1/8 inch crossbore sizes. Standard W&F and Endura hardware uses 1-11/16 inch, while Pella entry doors typically use 2-1/8 inch.
