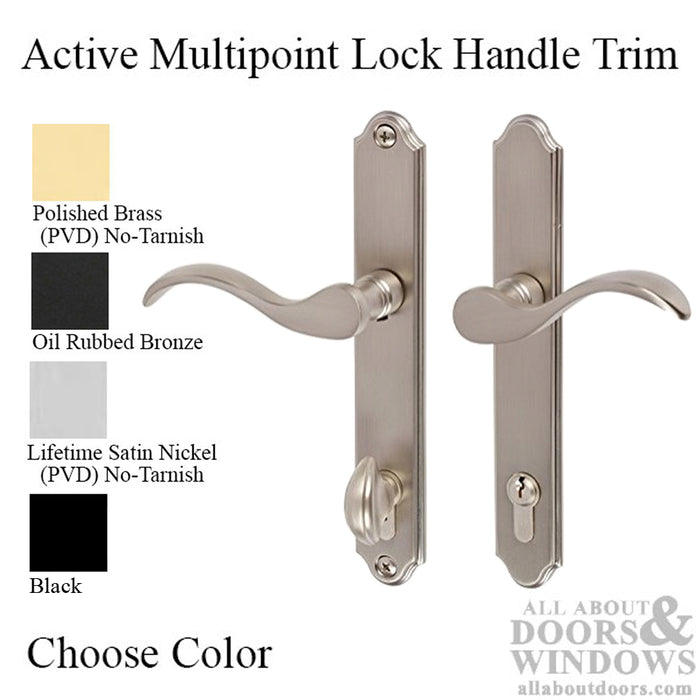

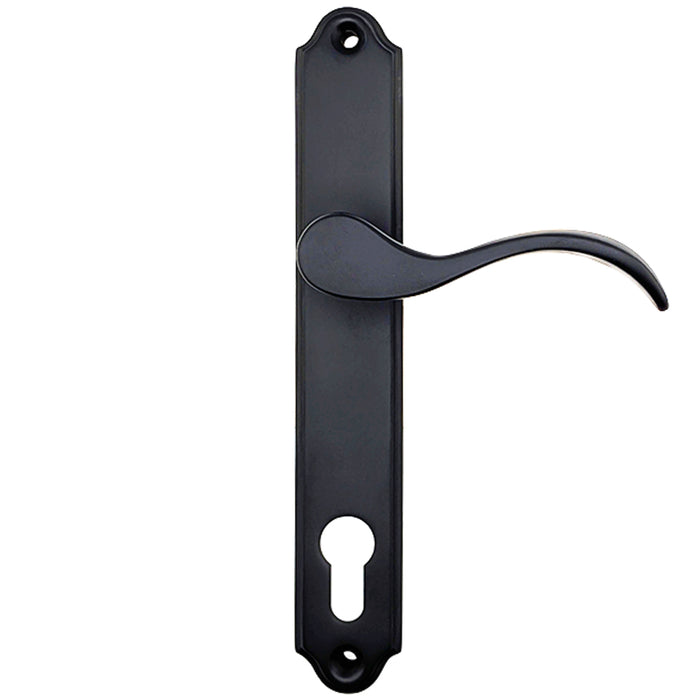

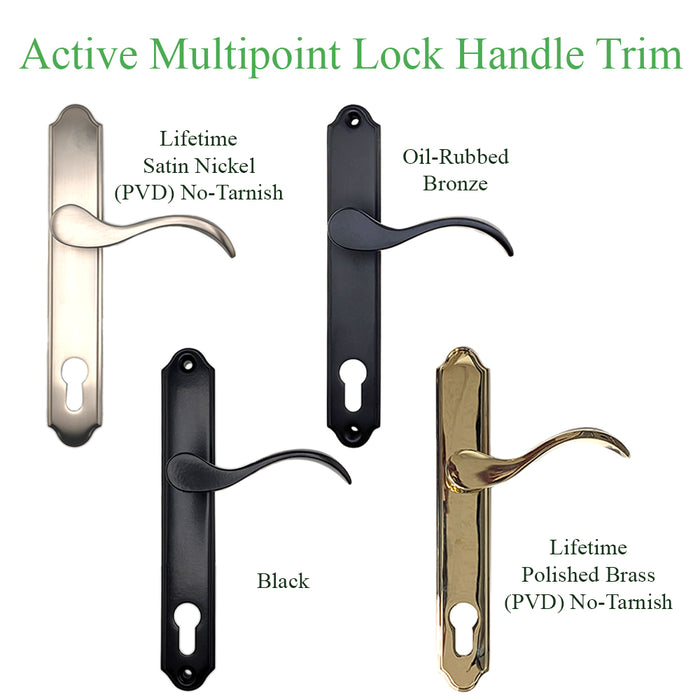

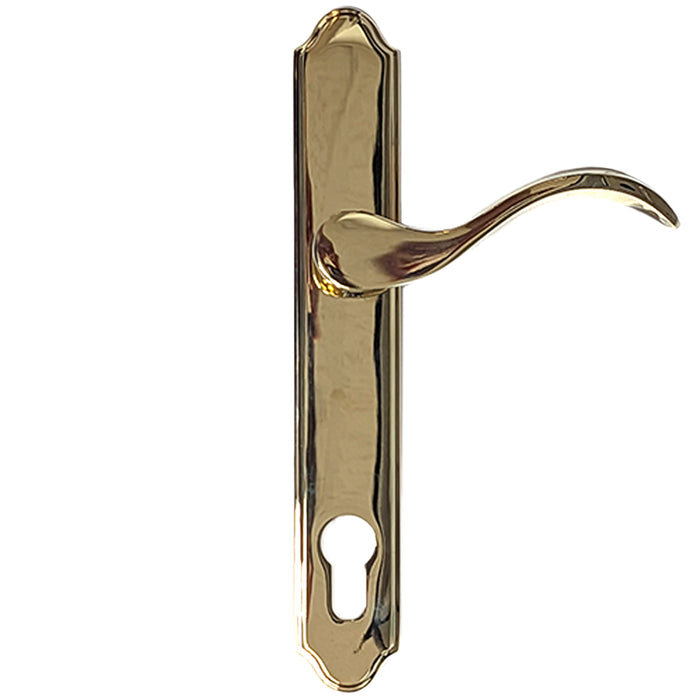

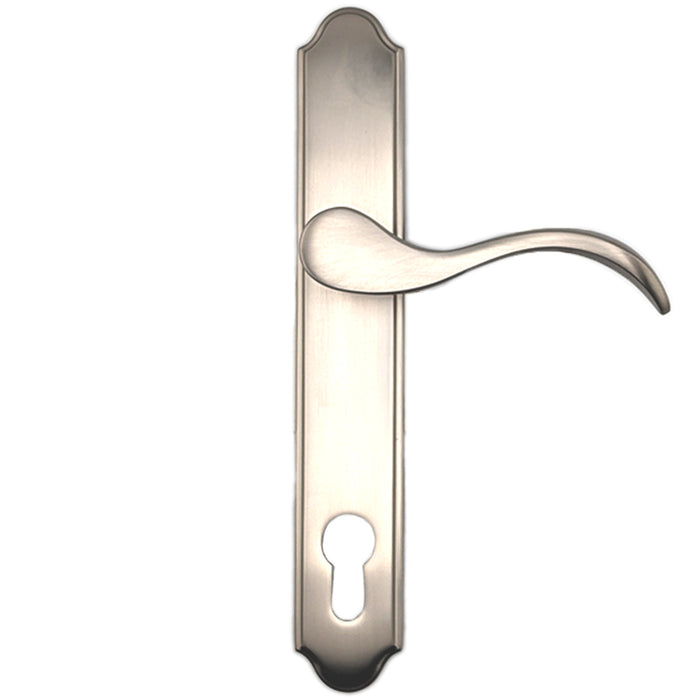

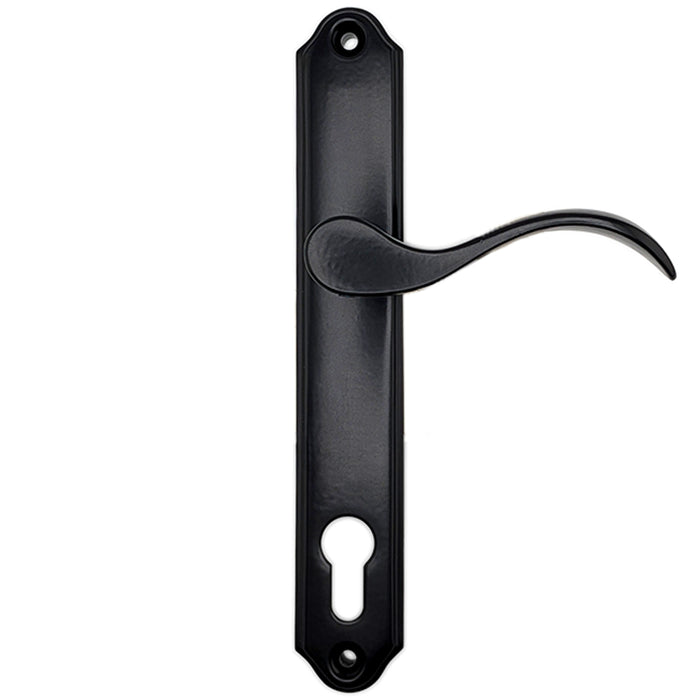

Active Multipoint Trim – Keyed, 1-3/4" Door

Active Multipoint Trim – Keyed, 1-3/4" Door

SKU:

$169.00 - $196.88
$169.00
$169.00 - $196.88
$169.00
  • Door Thickness: 1-3/4" (44.5mm)
  • Deadbolt: 90 degree turn
  • Cylinder: Full 5 pin Euro Profile with 5 pin SC-1 keyway
  • Plate Dimensions: 1-1/4" x 8-3/4" (31.8mm x 222.3mm)
  • Active keyed multipoint trim
  • Compatible with Kolbe & Kolbe, Lincoln, Loewen, Norco, Peachtree, Pozzi, SNE, Semco, Vetter, Weathershield, and Windsor multipoint lock doors
  • Handle hole is smaller than Hoppe – parts are NOT interchangeable
  • Does not include strike plate or mortise lock body
  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Visa
Not sure this is the right part?
Before you order, if you'd like confidence this is the right part for your job, please call us at (816) 221-6543 .
*We have a fully-staffed customer support team happy to help!

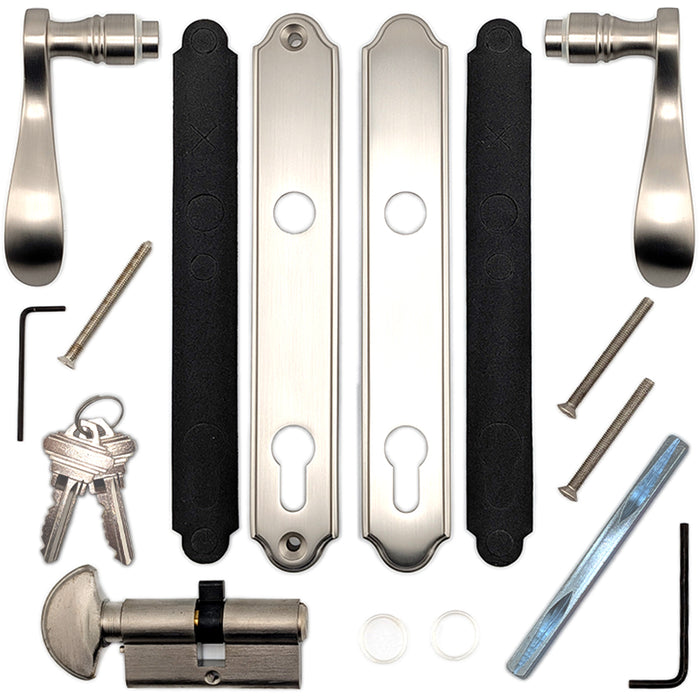

Active Multipoint Trim – Keyed (40024)

This active multipoint trim set is designed for 1-3/4 inch thick doors equipped with multipoint lock hardware. It features a 90 degree turn deadbolt and includes a full 5 pin Euro Profile cylinder with a 5 pin SC-1 keyway for reliable security.

This trim is compatible with doors manufactured by Kolbe & Kolbe, Lincoln, Loewen, Norco, Peachtree, Pozzi, SNE, Semco, Vetter, Weathershield, and Windsor. Please note that the handle hole on this trim is smaller than Hoppe products, and the parts are NOT interchangeable.

Technical Information

  • Door Thickness: 1-3/4 inches (44.5mm)
  • Deadbolt Operation: 90 degree turn
  • Cylinder Type: Full 5 pin Euro Profile
  • Keyway: 5 pin SC-1

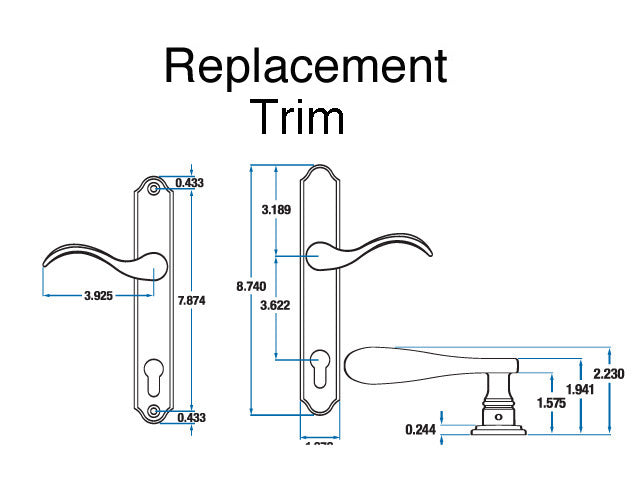

  • Plate Dimensions: 1-1/4 x 8-3/4 inches (31.8mm x 222.3mm)

Notes

  • Does not include strike plate (part 1963554) or mortise lock body (400002)
  • Handle hole is smaller than Hoppe – parts are NOT interchangeable

Replaces / Replaced by

  • Replaces Atrium Door Lock Hardware keyed active handle set
  • Plate is slightly larger than original Atrium lock (1-3/16 x 8-1/4 inches)
  • Bottom screw hole matches Atrium; top hole is 9/16 inch higher
  • Both screw holes will need to be drilled larger for installation

Related Parts

  • 40025 - Non-Keyed with Thumbturn handle set
  • 40026 - Fixed Dummy Pair handle set
  • 400002 - Mortise lock body (not included)
  • 1963554 - Stainless steel strike plate (works with 400002 lock)
  • 840007 - Bottom door sweep with bulb
  • 840008 - Bottom door sweep with fins
  • 842042 - Beige door frame weatherstrip

Priced and sold as trim only.

Fill out our MPL form or call us to ensure accurate purchasing and correct fit.

Frequently Asked Questions

Will this trim work with my Hoppe multipoint lock?

No, the handle hole on this trim is smaller than Hoppe products and the parts are NOT interchangeable.

Does this include everything I need to replace my Atrium door lock?

No, this is the trim only. You will also need the mortise lock body (400002) and strike plate (1963554), sold separately.

Will this fit my existing Atrium door screw holes?

The bottom screw hole matches, but the top hole is 9/16 inch higher and both holes will need to be drilled larger due to the slightly larger plate size.
