Winkhaus Volo Sliding Patio Door Handle Trim – Non-Keyed Patio Function

Winkhaus Volo Sliding Patio Door Handle Trim – Non-Keyed Patio Function

SKU:

Sold out
$294.95 - $294.95
$294.95
$294.95 - $294.95
$294.95
  • Function: Patio (thumb turn inside, no key outside)
  • Style: Volo
  • Door Thickness: Standard 1-3/4" (45mm) or Optional 2-1/4" (57mm)
  • Mounting Screw Holes: 7-7/8" (200mm) spacing
  • Colors Available: PVD Ultra Steel (Stainless), Oil Rubbed Brass, PVD Bronze, Flat Black, White
  • Cylinder Compatibility: Requires Winkhaus 90° cylinder (not included)
  • Includes handle trim set
  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Visa
Not sure this is the right part?
Before you order, if you'd like confidence this is the right part for your job, please call us at (816) 221-6543 .
*We have a fully-staffed customer support team happy to help!

Winkhaus Volo Patio Handle Trim – Non-Keyed (398110)

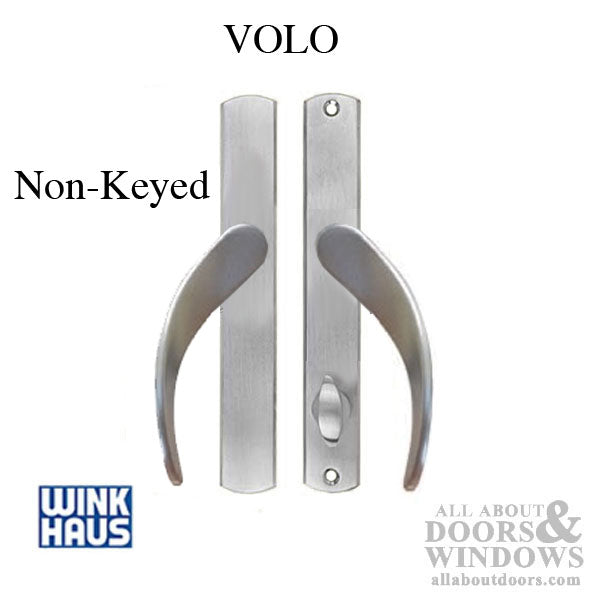

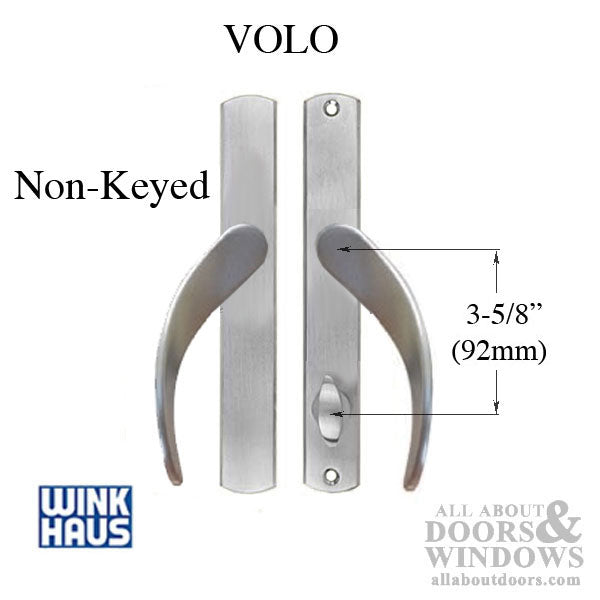

This Winkhaus Volo sliding patio door handle trim features a non-keyed patio function with a thumb turn on the interior side and no key access on the exterior. The Volo style offers a clean, modern aesthetic suitable for contemporary sliding patio door applications.

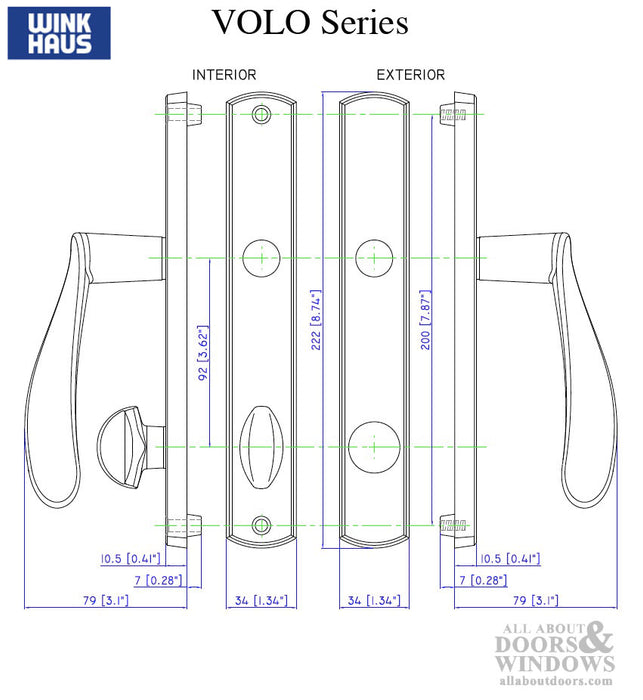

Designed for standard 1-3/4 inch (45mm) thick doors, with an optional configuration available for 2-1/4 inch (57mm) thick doors. The mounting screw holes are spaced at 7-7/8 inches (200mm) apart.

Available in five finish options: PVD Ultra Steel (stainless), Oil Rubbed Brass, PVD Bronze, Flat Black, and White. These finishes allow you to match your existing door hardware and home décor.

Technical Information

  • Function: Patio (thumb turn inside, no key outside)
  • Style: Volo
  • Door Thickness: 1-3/4 inches (45mm) standard or 2-1/4 inches (57mm) optional
  • Mounting Hole Spacing: 7-7/8 inches (200mm)
  • Cylinder Type: Requires Winkhaus 90° cylinder

Notes

  • The Winkhaus Slider Door Lock will only function with the Winkhaus 90° cylinder
  • Cylinder not included with handle trim set

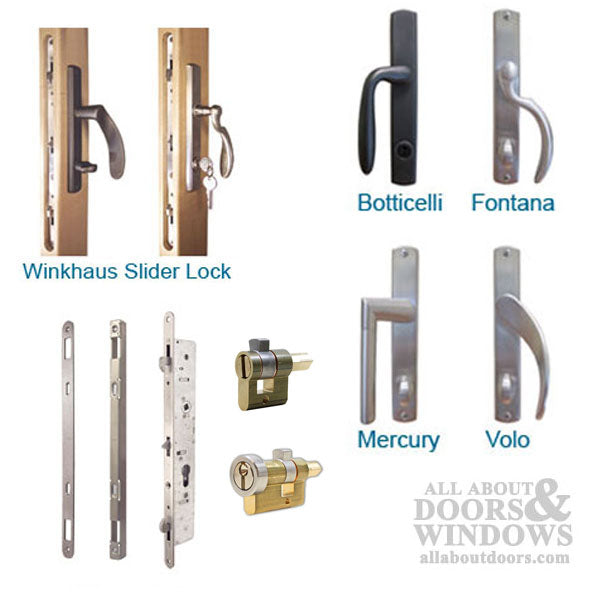

  • Also available in Keyed Entry and Inactive/Dummy Pull functions

Related Parts

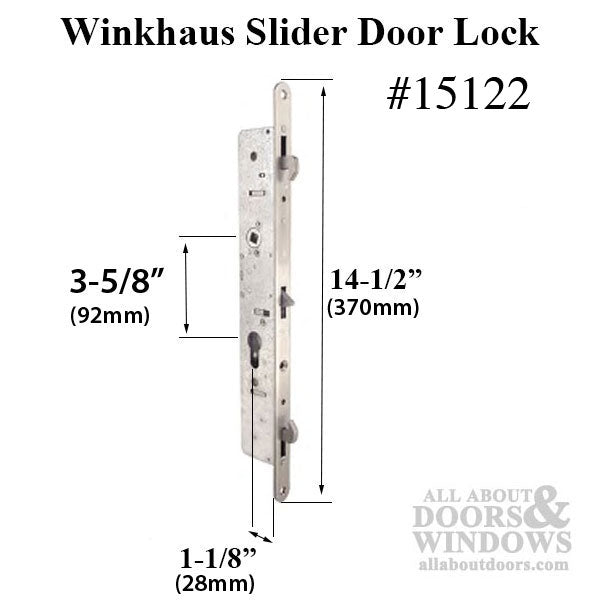

  • 15122 - Winkhaus Mortise Lock, 2 hook, 28mm Backset
  • 413020360 - Winkhaus Keyed Cylinder for 1-3/4" thick doors
  • 413530360 - Winkhaus Keyed Cylinder for 2-1/4" thick doors

Priced and sold each.

Fill out our MPL form or call us to ensure accurate purchasing and correct fit.

Frequently Asked Questions

What cylinder does this handle trim require?

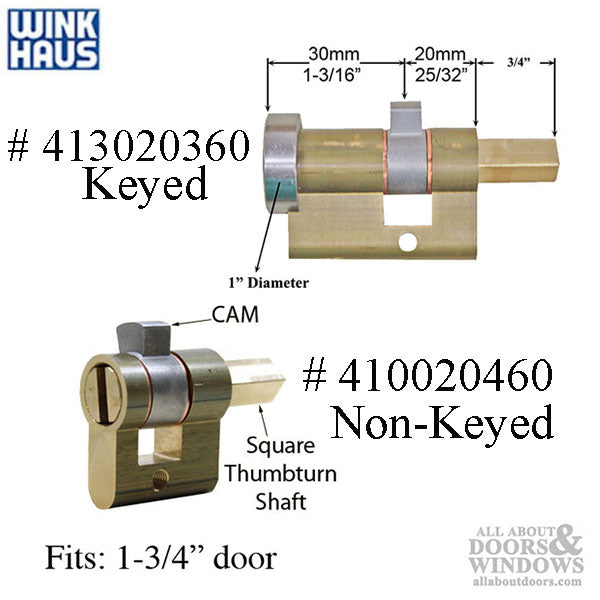

This handle trim only works with the Winkhaus 90° cylinder, which is sold separately. For 1-3/4 inch doors use part 413020360, and for 2-1/4 inch doors use part 413530360.

What is the difference between the patio function and keyed entry?

The patio function has a thumb turn on the inside and no key access on the outside, while the keyed entry function allows locking and unlocking from both sides with a key on the exterior.

What door thickness does this handle trim fit?

This handle trim fits standard 1-3/4 inch (45mm) thick doors, with an optional configuration available for 2-1/4 inch (57mm) thick doors.
