AmesburyTruth Regency 800B ADA Passive Handleset – 92mm PZ

SKU: 395185-W-225

$181.86 - $181.86

$181.86

$181.86 - $181.86

$181.86

Function: Passive, non-keyed with interior ADA thumbturn
PZ: 92mm (3-5/8")
Handle Orientation: Key above or below handle
Handing: Non-handed, works on left or right doors
Lever Series: Classic 800 ADA-Compliant
Plate Series: B Series with radial top and bottom
Escutcheon Size: 9-1/2" (241.9mm) length x 1-13/16" (45.7mm) width
Screw Hole Spacing: 7-7/8" (200mm)
Clearance: 1-3/4" (44.3mm)
Distance to Top of Escutcheon: 2-9/16" (65mm)
Thumbturn Rotation: 90° for visual lock verification
Door Thickness: Available for 1-3/4" or 2-1/4" doors
Recommended For: Aluminum, composite, vinyl, or wood doors
Certification: AAMA 902 Certified
Levers factory-attached to escutcheons for easier installation
Easily rekeyed

Quantity

Not sure this is the right part?

Before you order, if you'd like confidence this is the right part for your job, please call us at (816) 221-6543 .

*We have a fully-staffed customer support team happy to help!

Product Details

AmesburyTruth Regency 800B ADA Passive Handleset – 92 PZ (395185)

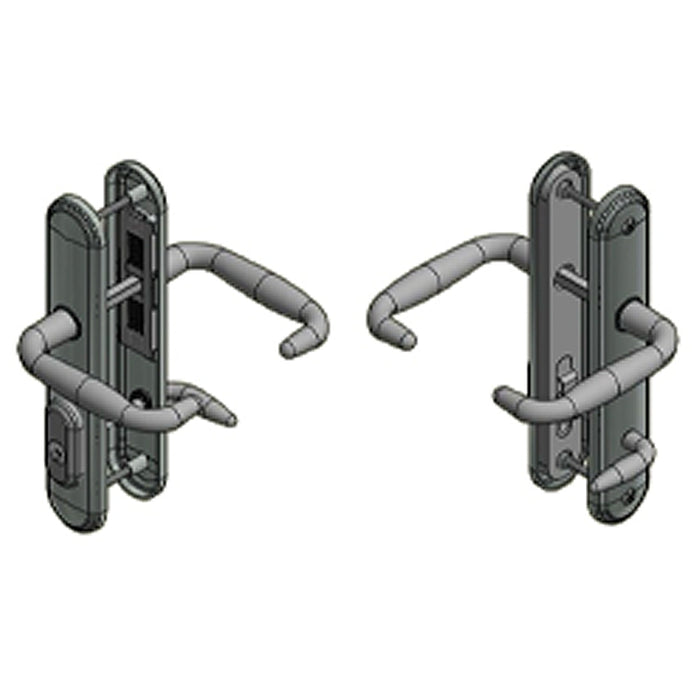

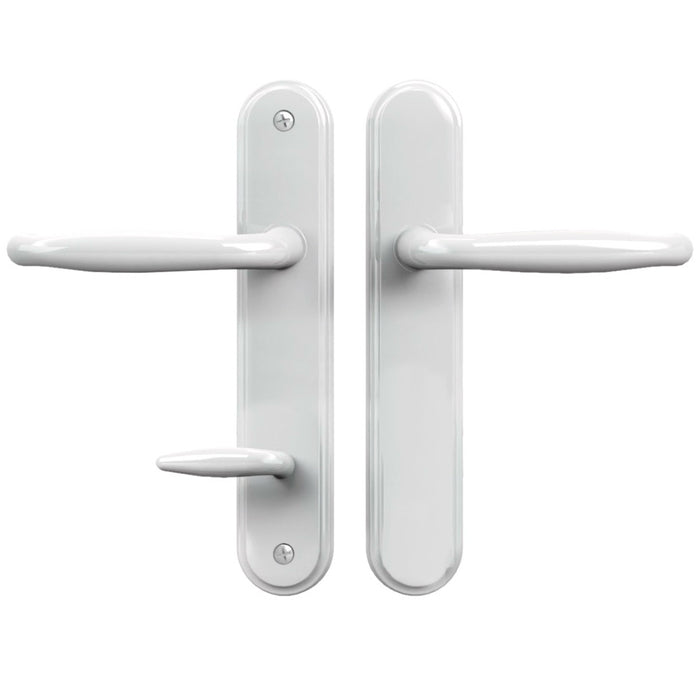

The AmesburyTruth Regency 800B is a passive, non-keyed handleset with an interior ADA-compliant thumbturn. It pairs the Classic 800 ADA-Compliant lever with the B-Series escutcheon plate, giving you an accessible option for multipoint door applications.

This handleset works with many multipoint locks made by Amesbury/Truth, and it is also compatible with most other multipoint lock brands. It is recommended for aluminum, composite, vinyl, or wood doors.

The handles can be installed in the traditional American orientation with the thumbturn above the lever, or inverted in the European style with the thumbturn below. The set is non-handed and works on both left- and right-hand doors. Levers arrive factory-attached to the escutcheons to speed up installation, and the lock can be easily rekeyed in the field.

The lever curves back toward the door so fire hose and other rescue equipment will not catch on the handle. Both the lever and the extended lock turn are workable without needing to grip, meeting ADA accessibility guidelines. The 90-degree thumbturn rotation allows for clear visual verification of lock engagement.

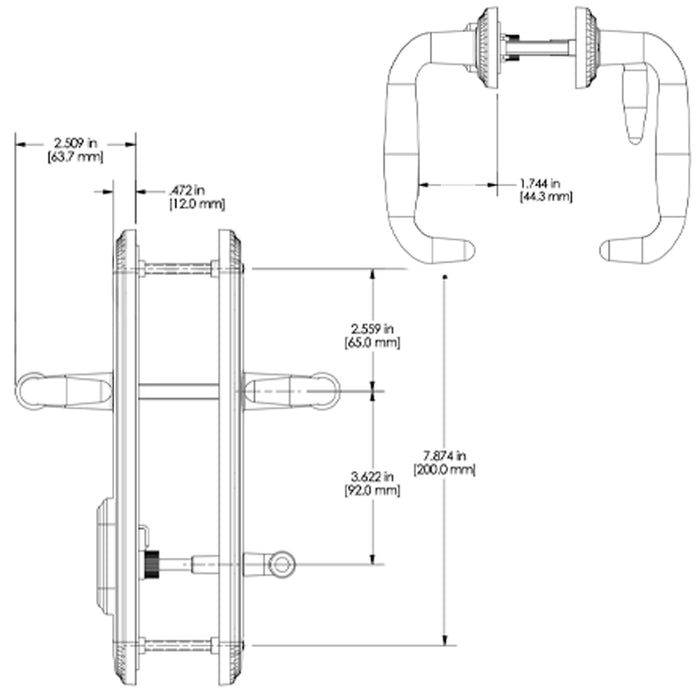

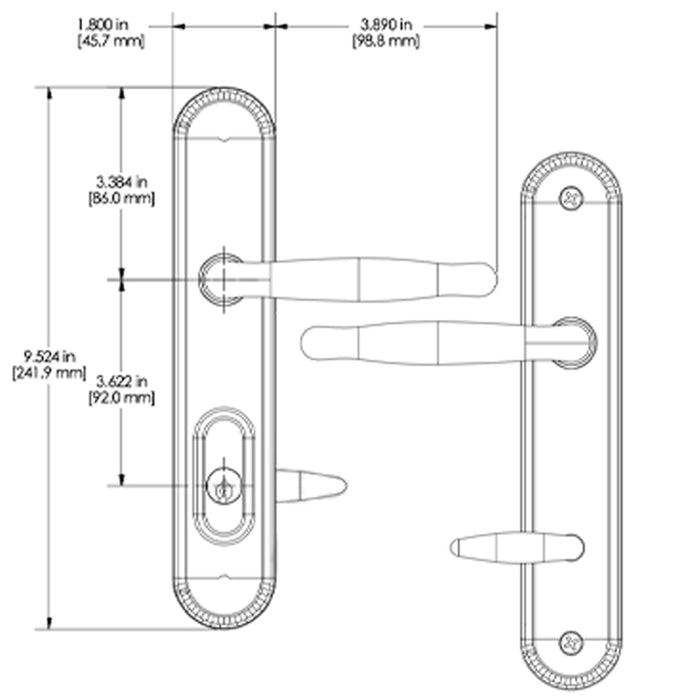

Technical Information

Function: Passive, non-keyed with interior ADA thumbturn
PZ: 92mm (3-5/8 inches)
Handing: Non-handed (left or right doors)
Handle Orientation: Key above or below handle
Lever Series: Classic 800 ADA-Compliant
Lever Clearance: 44.3mm (1-3/4 inches)
Distance to Top of Escutcheon: 65mm (2-9/16 inches)
Escutcheon Series: B Series with radial top and bottom
Escutcheon Length: 241.9mm (9-1/2 inches)
Escutcheon Width: 45.7mm (1-13/16 inches)
Screw Hole Spacing: 200mm (7-7/8 inches)
Thumbturn Rotation: 90 degrees
Door Thickness Options: 1-3/4 inches or 2-1/4 inches
Certification: AAMA 902 Certified

Notes

Painted or powder-coat finishes use zinc base material.
PVD finishes may be available in zinc or brass base material for coastal areas.
PVD finishes carry a lifetime warranty.
Recommended for aluminum, composite, vinyl, or wood doors.

Fill out our MPL form or call us to ensure accurate purchasing and correct fit.

Frequently Asked Questions

What does passive, non-keyed mean?

Passive means the handleset does not have an exterior key cylinder. It uses an interior ADA thumbturn to operate the multipoint lock, so it is best for doors that do not need to be locked or unlocked from the outside with a key.

Will this handleset work on both left- and right-hand doors?

Yes. The Regency 800B is non-handed and can be installed on either left- or right-hand doors. It can also be oriented with the thumbturn above or below the lever.

What does PZ mean?

PZ is the distance from the center of the spindle (handle) to the center of the thumbturn or key cylinder. This handleset has a 92mm (3-5/8 inch) PZ, which must match your multipoint lock.
