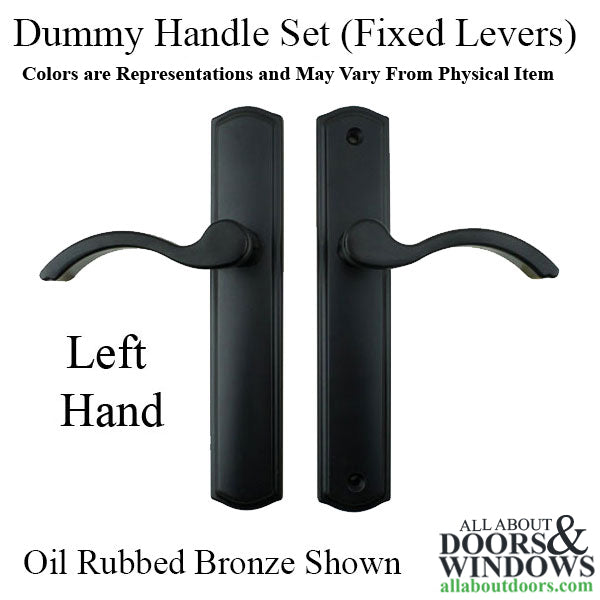

100 Series Regency Dummy Lever – Left Hand, Arched Plate

SKU:

$116.25 - $133.60

$116.25

$116.25 - $133.60

$116.25

Style: 100 Series Regency with arched escutcheon plate
Type: Dummy/Fixed Lever (non-keyed trim)
Handing: Left Hand (can be changed via C-ring)
Handle to Cylinder Center: 3-5/8" (92mm)
Plate Width: 1-25/32" (45.5mm)
Plate Height: 9-15/32" (240.5mm)
Screw Hole Spacing: 7-7/8" (199.9mm)
Handle Projection: 2-5/16" (58.6mm)
Handle Clearance: 1-11/32" (34mm)
Handle Length: 4-37/64" (116.3mm)
Material: Zinc (Brass substrate PVD available for coastal areas)
Finish: Satin Nickel and Oil Rubbed Bronze in stock; other finishes special order
Sold individually

Quantity

Not sure this is the right part?

Before you order, if you'd like confidence this is the right part for your job, please call us at (816) 221-6543 .

*We have a fully-staffed customer support team happy to help!

Product Details

100 Series Regency Dummy Lever – Left Hand (395135)

This dummy lever features the 100 Series Regency design with an elegant arched "C" style escutcheon plate. As a non-keyed fixed lever, it provides a clean, functional appearance for doors that don't require locking hardware. This is a left-handed configuration, though the handing can be changed by removing the C-ring (circlip) that secures the lever to the plate.

The escutcheon plate measures 1-25/32 inches (45.5mm) wide by 9-15/32 inches (240.5mm) tall, with screw hole spacing of 7-7/8 inches (199.9mm). The lever projects 2-5/16 inches (58.6mm) from the plate with a handle clearance of 1-11/32 inches (34mm) and handle length of 4-37/64 inches (116.3mm). The handle to cylinder center distance is 3-5/8 inches (92mm).

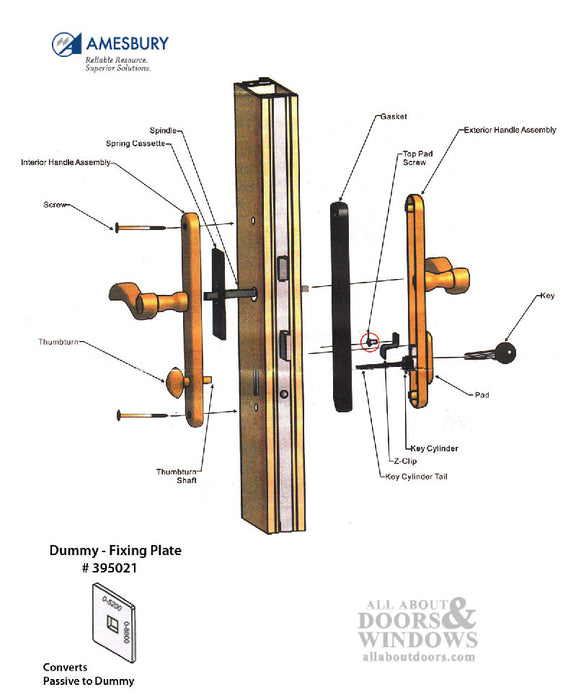

This lever serves as replacement hardware compatible with Amesbury, Marvin, Milgard, and other door systems. The standard material is zinc, with Satin Nickel and Oil Rubbed Bronze finishes stocked and ready to ship. For coastal environments, brass substrate PVD finishes are available. PVD (Physical Vapor Deposition) is a high-performance coating that resists tarnishing and discoloration.

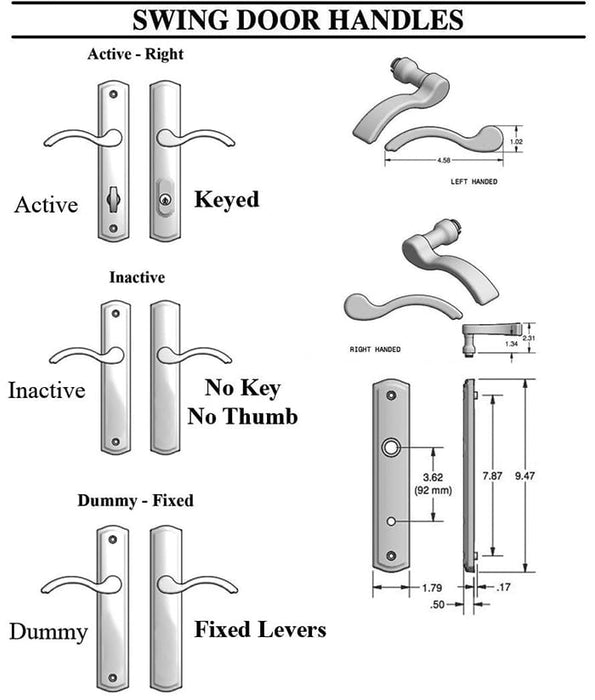

Technical Information

Escutcheon Style: "C" Style with slight arch
Plate Width: 1-25/32 inches (45.5mm)
Plate Height: 9-15/32 inches (240.5mm)
Screw Hole Spacing: 7-7/8 inches (199.9mm)
Handle Projection: 2-5/16 inches (58.6mm)
Handle Clearance: 1-11/32 inches (34mm)
Handle Length: 4-37/64 inches (116.3mm)
Handle to Cylinder Center: 3-5/8 inches (92mm)
Cylinder Type: None
Thumbturn: None

Notes

Zinc Substrate Colors: White, Tan, Dark Oil Rubbed Bronze, Polished Brass, Satin Nickel
PVD/Brass Substrate Colors: Dark Oil Rubbed Bronze PVD, PVD Polished Brass, PVD Satin Nickel
Special order finishes require 2-4 weeks lead time with minimum quantities and price quote
Handing can be reversed by removing the C-ring securing the lever to the plate

Sold individually.

Fill out our MPL form or call us to ensure accurate purchasing and correct fit.

Frequently Asked Questions

Can I change the handing on this lever?

Yes, the lever is attached to the plate with a C-ring (circlip) that can be removed to reverse the handing from left to right or vice versa.

What is PVD finish and when should I choose it?

PVD (Physical Vapor Deposition) is a high-performance finish that resists tarnishing and discoloration. It's recommended for coastal areas or environments with high humidity and salt exposure.

What doors is this lever compatible with?

This dummy lever is designed as replacement hardware for Amesbury, Marvin, Milgard, and other similar door systems with matching escutcheon plate dimensions.
