Active Keyed Trim – 100 Series Regency Arched Plate, 92mm PZ, Right Hand

Active Keyed Trim – 100 Series Regency Arched Plate, 92mm PZ, Right Hand

SKU:

$140.56 - $265.88
$140.56
$140.56 - $265.88
$140.56
  • Style: 100 Series Regency with arched plate, "C" style escutcheon
  • Handle to Cylinder (PZ): 3-5/8" (92mm)
  • Handing: Right-handed (can be changed using C-ring/circlip)
  • Cylinder Type: American with flat tail piece, Schlage 5-pin SC1 keyway
  • Plate Dimensions: 1-25/32" W x 9-15/32" H (45.5mm x 240.5mm)
  • Screw Hole Spacing: 7-7/8" (199.9mm)
  • Handle Projection: 2-5/16" (58.6mm)
  • Handle Clearance: 1-11/32" (34mm)
  • Handle Length: 4-37/64" (116.3mm)
  • Material: Zinc (brass substrate PVD finishes available for coastal areas)
  • Finish: Satin Nickel and Oil Rubbed Bronze in stock; other finishes special order
  • Compatible with Marvin, Milgard, and other doors
  • Sold individually
  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Visa
Not sure this is the right part?
Before you order, if you'd like confidence this is the right part for your job, please call us at (816) 221-6543 .
*We have a fully-staffed customer support team happy to help!

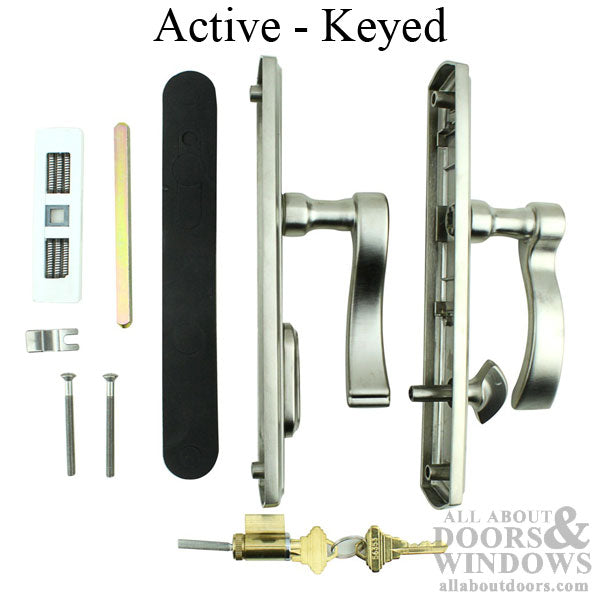

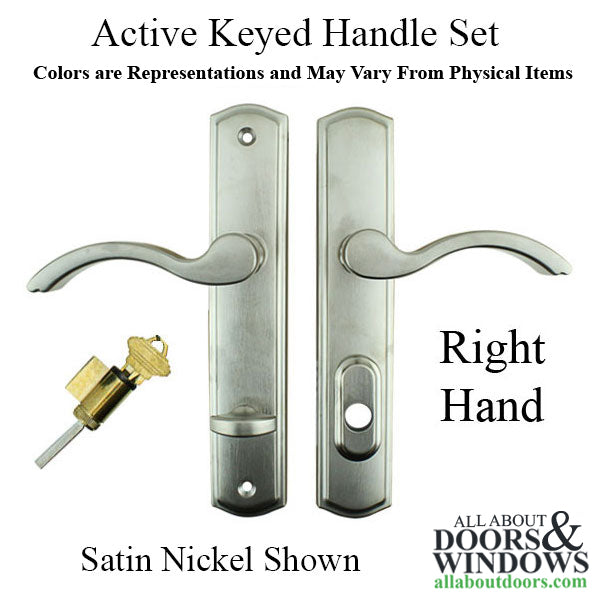

Active Keyed Trim – Regency Arched, RH (395130)

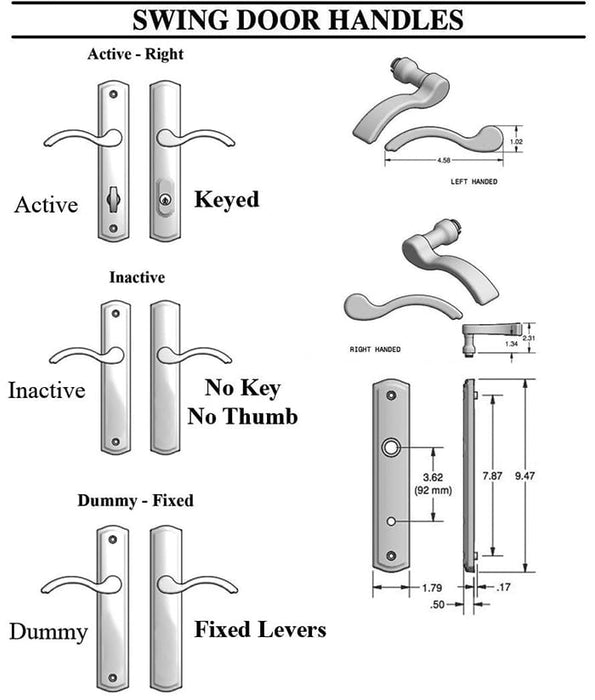

This active keyed trim features the 100 Series Regency design with an elegant arched escutcheon plate. The "C" style plate measures 1-25/32 inches wide by 9-15/32 inches tall (45.5mm x 240.5mm), with screw hole spacing of 7-7/8 inches (199.9mm). Designed as replacement hardware for Marvin, Milgard, and other door systems.

The handle offers a projection of 2-5/16 inches (58.6mm), clearance of 1-11/32 inches (34mm), and a length of 4-37/64 inches (116.3mm). The handle to cylinder distance (PZ) measures 3-5/8 inches (92mm), compatible with American cylinders featuring a flat tail piece and Schlage 5-pin SC1 keyway.

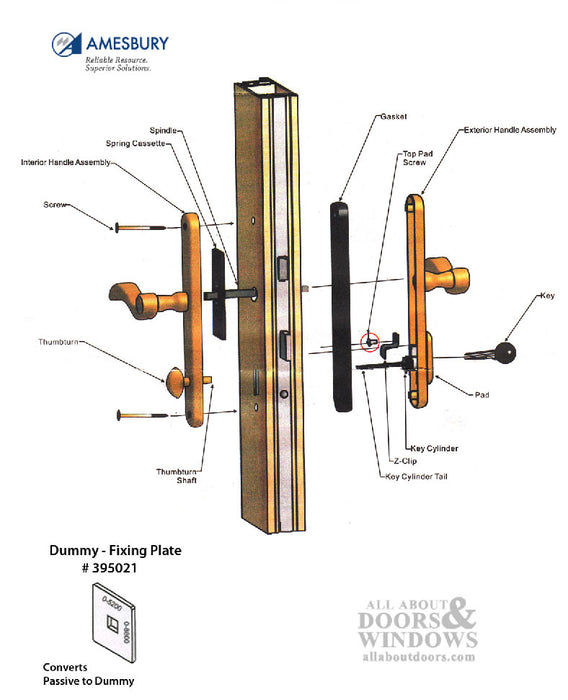

This trim is right-handed but can be rehanded. The lever attaches to the plate with a C-ring (circlip), allowing for handing changes during installation.

Technical Information

  • PZ (Handle to Cylinder): 3-5/8 inches (92mm)
  • Plate Width: 1-25/32 inches (45.5mm)
  • Plate Height: 9-15/32 inches (240.5mm)
  • Screw Hole Spacing: 7-7/8 inches (199.9mm)
  • Handle Projection: 2-5/16 inches (58.6mm)
  • Handle Clearance: 1-11/32 inches (34mm)
  • Handle Length: 4-37/64 inches (116.3mm)
  • Cylinder Type: American with flat tail piece
  • Keyway: Schlage 5-pin, SC1 keyblank
  • Material: Zinc (brass substrate available for PVD finishes)

Notes

  • Zinc substrate colors available: White, Tan, Dark Oil Rubbed Bronze, Brass, Satin Nickel
  • PVD finishes (brass substrate) available: Dark Oil Rubbed Bronze PVD, PVD Polished Brass, PVD Satin Nickel
  • PVD is a high-performance finish that resists tarnishing and discoloration, ideal for coastal areas
  • Satin Nickel and Oil Rubbed Bronze in stock; other finishes are special order (2-4 weeks, minimum quantities may apply, requires price quote)
  • Handing can be changed by removing the C-ring (circlip) that holds the lever to the plate

Priced and sold each.

Fill out our MPL form or call us to ensure accurate purchasing and correct fit.

Frequently Asked Questions

Can I change the handing on this trim?

Yes, the lever is held onto the plate with a C-ring (circlip) that can be removed to change the handing from right to left or vice versa.

What is PVD finish and when should I choose it?

PVD (Physical Vapor Deposition) is a high-performance finish that resists tarnishing and discoloration. It's recommended for coastal areas or environments with high humidity and salt exposure.

What cylinder and key type does this trim use?

This trim uses an American cylinder with a flat tail piece and accepts Schlage 5-pin keys with SC1 keyblanks.
