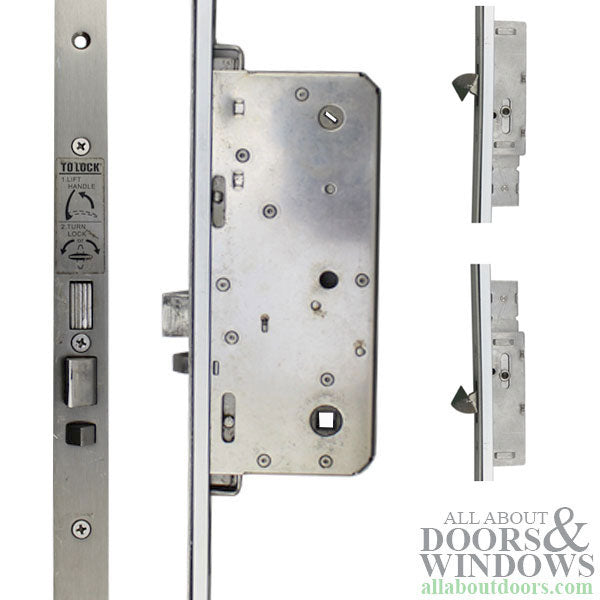

Neuma Multipoint Lock for In-Swing Doors – 60mm Backset, 133mm PZ, 24mm Faceplate

Neuma Multipoint Lock for In-Swing Doors – 60mm Backset, 133mm PZ, 24mm Faceplate

SKU 395096-NI

$817.04 - $817.04
$817.04
$817.04 - $817.04
$817.04
  • PZ: 5-1/4" (133.35mm) – unusual spacing
  • Backset: 2-3/8" (60mm)
  • Faceplate Width: 15/16" (24mm)
  • Overall Length: 92-1/16" (2338.1mm)
  • Cylinder Type: American
  • Handle Position: Key/Thumb turn above handle
  • Handle Height: 37" (939.8mm)
  • Top Hook Position: 47-3/8" (1203.3mm) from handle
  • Bottom Hook Position: 30-3/4" (781.1mm) from handle
  • Locking Points: 2 hooks, 1 deadbolt
  • Door Type: In-Swing
  • Markings: Pat M267300, HPVD on some handle sets
  • Direct Taiwanese import
Visa Mastercard American Express Discover
Estimated Delivery
Between December 11 and December 15
*Delivery dates are estimates and may vary based on availability and shipping method

Neuma 24mm Multipoint Lock – 60/133, In-Swing (395096)

This Neuma multipoint lock is a direct Taiwanese import designed for in-swing doors. It features an unusual handle to thumb turn spacing of 5-1/4 inches (133.35mm), which differs from standard PZ measurements commonly found in European-style multipoint locks.

The lock body measures 92-1/16 inches (2338.1mm) in overall length with a 2-3/8 inch (60mm) backset and 15/16 inch (24mm) wide faceplate. It provides three-point security with 2 hooks and 1 deadbolt. The handle height is positioned at 37 inches (939.8mm), with the top hook at 47-3/8 inches (1203.3mm) and bottom hook at 30-3/4 inches (781.1mm) from the handle.

This lock uses an American cylinder and features key/thumb turn operation above the handle.

Stamped With

  • Pat M267300
  • HPVD (on some handle sets)

Technical Information

  • PZ (Handle to Cylinder): 5-1/4 inches (133.35mm)
  • Backset: 2-3/8 inches (60mm)
  • Faceplate Width: 15/16 inch (24mm)
  • Overall Length: 92-1/16 inches (2338.1mm)
  • Handle Height: 37 inches (939.8mm)
  • Top Hook Position: 47-3/8 inches (1203.3mm) from handle
  • Bottom Hook Position: 30-3/4 inches (781.1mm) from handle
  • Locking Points: 2 hooks, 1 deadbolt
  • Cylinder Type: American
  • Handle Position: Key/Thumb turn above handle
  • Door Swing: In-Swing

Notes

  • Direct Taiwanese import with unusual 5-1/4 inch PZ spacing
  • Available in nominal sizes for 6-8, 6-11, 7-6, and 8-0 tall doors
  • Made for both in-swing and out-swing door configurations
  • 8 possible replacement options available
  • Hook position measurements are from the handle up or down

Fill out our MPL form or call us to ensure accurate purchasing and correct fit.

Frequently Asked Questions

What makes this lock's PZ measurement unusual?

This Neuma lock has a 5-1/4 inch (133.35mm) handle to thumb turn spacing, which differs from standard European PZ measurements like 92mm or 70mm commonly found in multipoint locks.

What cylinder type does this multipoint lock use?

This lock uses an American cylinder, not a European profile cylinder.

How do I measure the hook positions on this lock?

Hook positions are measured from the handle location. The top hook is 47-3/8 inches above the handle and the bottom hook is 30-3/4 inches below the handle.
