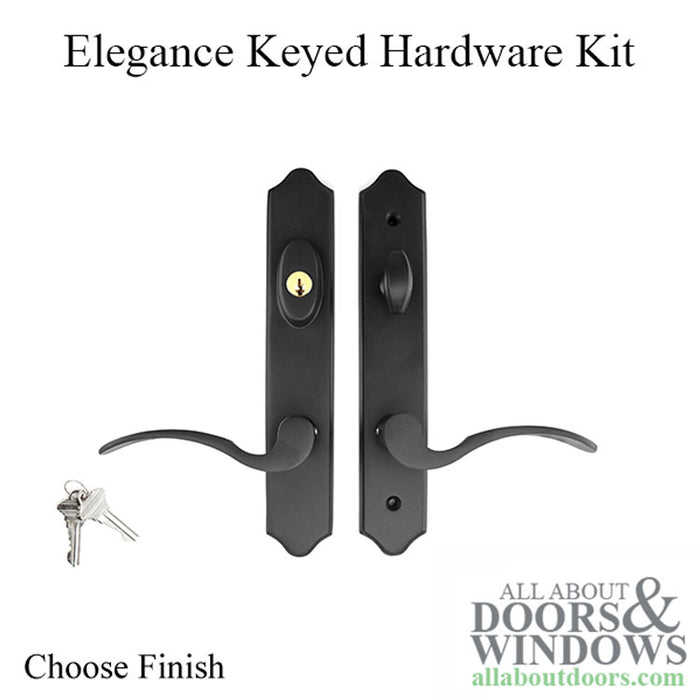

True Elegance 10" Active Keyed Handleset – Arch Top, Schlage SC1

True Elegance 10" Active Keyed Handleset – Arch Top, Schlage SC1

SKU

$143.98 - $271.26
$143.98
$143.98 - $271.26
$143.98
  • Plate Height: 10" (254mm)
  • Plate Width: 1-3/4" (44.5mm)
  • Plate Style: Arch Top
  • Screw Hole Center: 7-1/4" (184.2mm)
  • Function: Active Keyed with Thumb Turn
  • Door Thickness: Standard 1-3/4" (44.5mm)
  • Handing: Non-Handed (fits left and right)
  • Cylinder: American style with flat tail piece, 5-pin tumbler, includes 2 keys
  • Keyway: Schlage SC1
  • Handle Style: Traditional/Transitional curved levers
  • Finish: Satin Nickel, Oil Rubbed Bronze, or PVD Lifetime Polished Brass
  • Compatible Brands: Ashland, Milgard, Marvin, Jeld-Wen, Caradco, Cantera, Delta, Pozzi, PGT, and others
  • Includes: Inside plate, outside plate, two handles, spindle, hex wrench, and installation screws
  • Priced and sold as a package
Visa Mastercard American Express Discover
Estimated Delivery
Between December 11 and December 15
*Delivery dates are estimates and may vary based on availability and shipping method

True Elegance 10" Keyed Handleset – Arch Top (395004)

This True Elegance 10 inch active keyed handleset is designed for hinged doors and offers a classic arch top plate style with traditional curved lever handles. The set includes keyed entry on the exterior and a thumb turn on the interior, allowing you to lock or unlock the door from either side.

This handleset is compatible with doors from multiple manufacturers including Ashland, Milgard, Marvin, Jeld-Wen, Caradco, Cantera, Delta, Pozzi, PGT, and others. The non-handed design fits both left and right handed door configurations, making installation straightforward for single or double door setups.

The hardware features an American style cylinder with a flat tail piece, 5-pin tumbler mechanism, and comes with 2 keys. The keyway is Schlage SC1 compatible. Standard door thickness is 1-3/4 inches, though hardware for thicker doors is available.

Technical Information

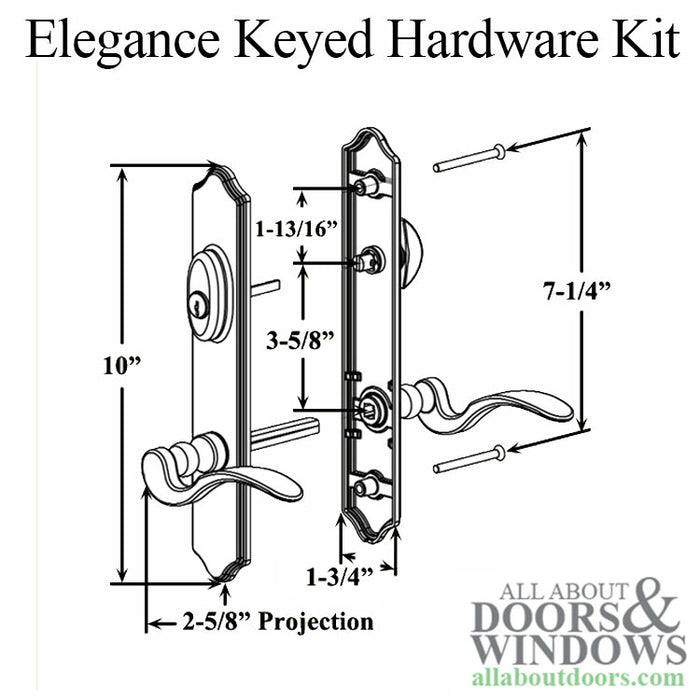

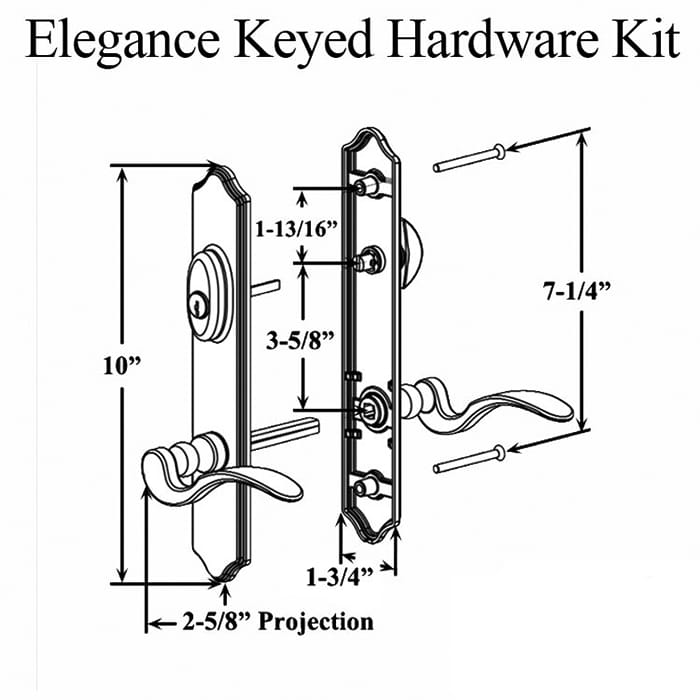

  • Plate Height: 10 inches (254mm)
  • Plate Width: 1-3/4 inches (44.5mm)

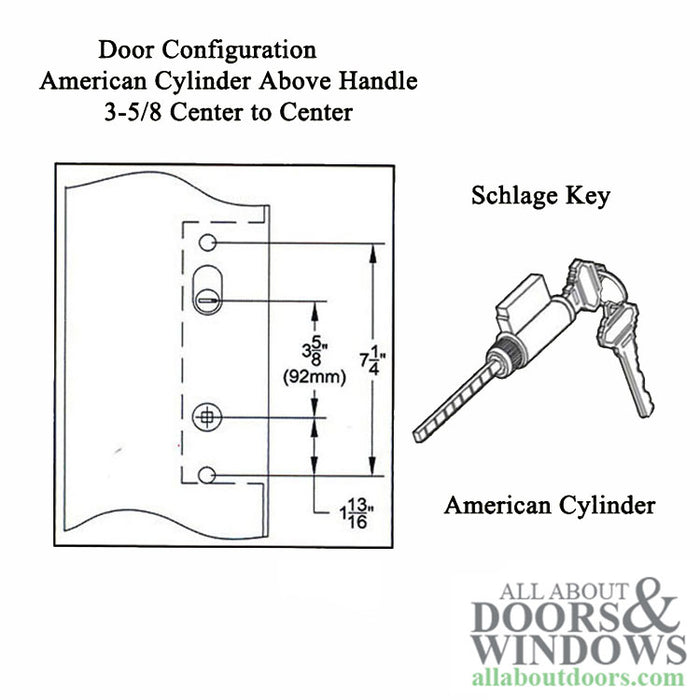

  • Screw Hole Center: 7-1/4 inches (184.2mm)
  • Door Thickness: 1-3/4 inches (44.5mm) standard
  • Cylinder Type: American style, 5-pin tumbler
  • Keyway: Schlage SC1

Notes

  • If replacing existing Marvin handlesets, the larger 2 x 12 size is recommended to cover any old marks left by previous hardware.
  • While the original Marvin hardware is larger than this replacement, the installation holes are the same.
  • Available finishes: Satin Nickel, Oil Rubbed Bronze, PVD Lifetime Polished Brass. Other finishes available as special order (2 weeks).

Related Parts

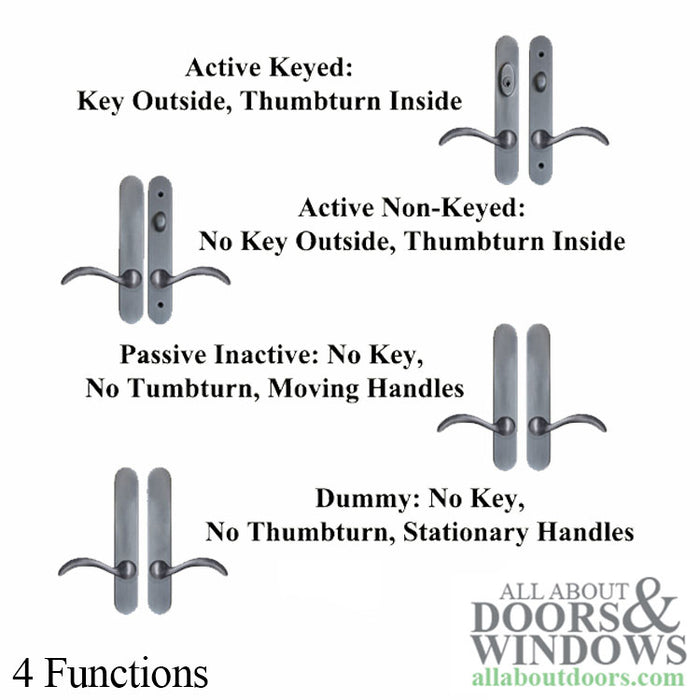

  • 395005 - Active Non-Keyed (Thumb turn inside only, no key)
  • 395006 - Passive/Dummy (No key, no thumb turn)

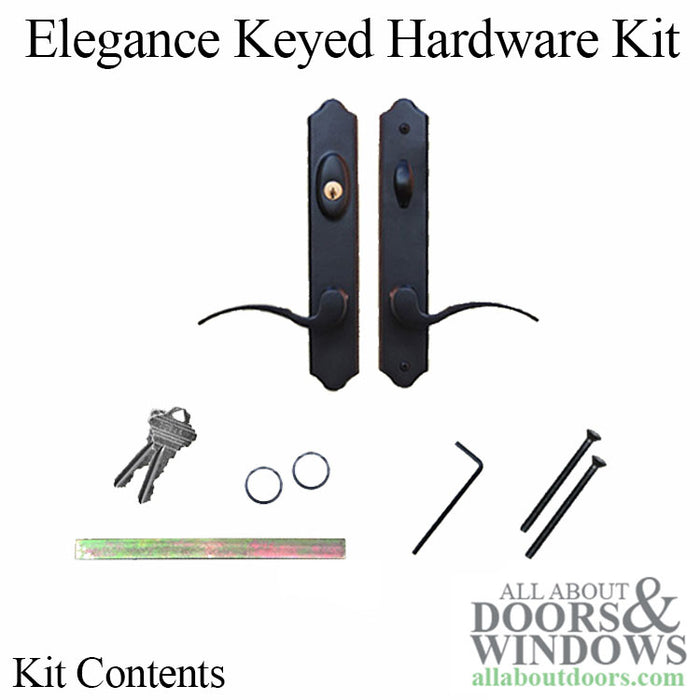

Package includes inside plate, outside plate, two handles, spindle, hex wrench, and installation screws. Priced and sold as a package.

Fill out our MPL form or call us to ensure accurate purchasing and correct fit.

Frequently Asked Questions

Will this handleset fit my Marvin door?

Yes, this handleset is compatible with Marvin doors. While the original Marvin hardware is larger, the installation holes are the same. If replacing existing Marvin hardware, consider the larger 2 x 12 size to cover any marks from previous hardware.

Is this handleset handed for left or right doors?

No, this handleset is non-handed and fits both left and right handed doors without any modifications.

What keys work with this lock?

This lock uses a Schlage SC1 keyway with an American style cylinder. It comes with 2 keys included and is compatible with standard Schlage SC1 key blanks.
