Adjustable Hinge for Outswing Doors – 3-5/8" x 4", NRP, Brass Base, Vertical & Horizontal Adjustment

SKU:

$0.00 - $74.56

$0.00

$0.00 - $74.56

$0.00

Mortise Height: 3-5/8" (92mm)
Overall Height: 4" (102mm)
Width: 4" (102mm)
Corners: 5/8" (16mm) Radius
Adjustment Type: All-in-One (Vertical and Horizontal)
Horizontal Adjustment Range: +/- 0.15" (3.8mm)
Vertical Adjustment Range: +/- 0.20" (5.1mm)
Hinge Type: NRP (Non-Removable Pin) for Outswing Doors
Material: Solid Brass Base (ideal for coastal areas)
Handing: Non-handed, works on left or right handed doors
Application: Wood, Vinyl, Metal, and Fiberglass doors
Finish: Choose from dropdown
Priced and sold each

Quantity

Not sure this is the right part?

Before you order, if you'd like confidence this is the right part for your job, please fill out our multipoint lock identifier form or call us at (816) 221-6543.

*We have a fully-staffed customer support team happy to help!

Product Details

Adjustable Hinge 3-5/8" x 4" NRP Outswing (370004)

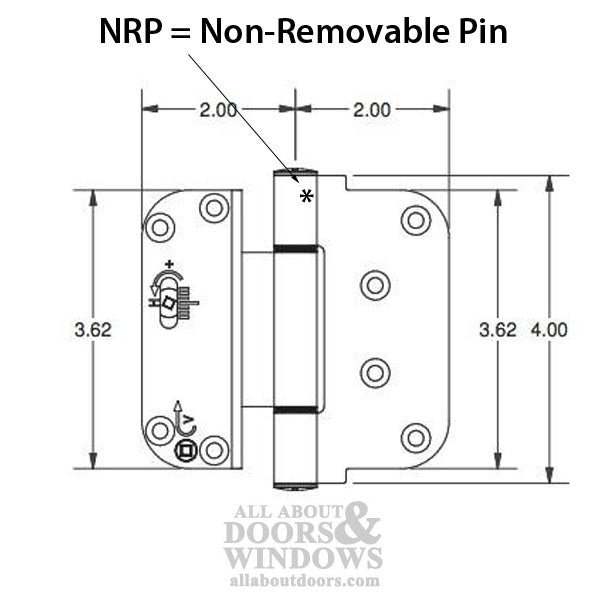

This 2-way adjustable hinge combines both vertical and horizontal adjustment in a single unit, making it an ideal solution for doors that no longer fit properly due to house settling. The non-removable pin (NRP) design is specifically intended for outswing doors, providing added security by preventing the hinge pin from being removed from the exterior.

Featuring a solid brass base construction, this hinge is well-suited for coastal environments where corrosion resistance is essential. The internal components are made of stainless steel with hard plastic elements for durability. This hinge fits a standard 3-5/8 inch mortise prep in both the door panel and jamb, making it compatible with Integrity by Marvin doors and other brands using the same mortise dimensions.

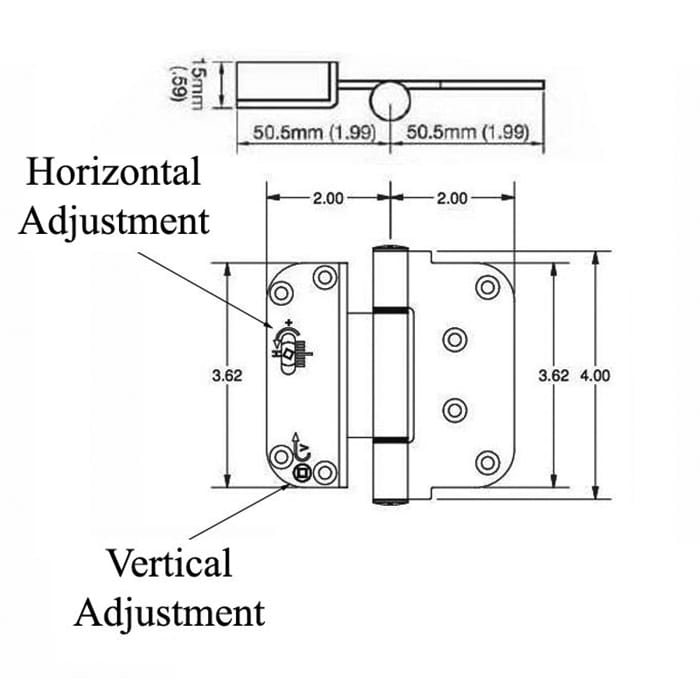

The horizontal adjustment allows you to fine-tune the reveal (gap between door frame and door edge) by +/- 0.15 inches. The vertical adjustment provides +/- 0.20 inches of movement to raise or lower the door panel. Visual markings on the hinge cover help indicate the vertical adjustment position. Adjustments are made using a square drive (Robertson drive) with hand tools only—do not use power tools.

Technical Information

Mortise Height: 3-5/8 inches (92mm)
Overall Height: 4 inches (102mm)
Width: 4 inches (102mm)
Corner Radius: 5/8 inches (16mm)
Adjustable Leaf Thickness: 5/8 inches (16mm)
Fixed Leaf Thickness: 1/8 inches (3.2mm)
Horizontal Adjustment: +/- 0.15 inches (3.8mm)
Vertical Adjustment: +/- 0.20 inches (5.1mm)
Load Capacity: 3 hinges support up to 400 lb. door
Fasteners Required: 8 each #8 Flat Head Wood Screws per hinge (not included)

Notes

Non-handed design works on both left and right handed doors
Compatible with wood, vinyl, metal, and fiberglass doors
Use hand tools only for adjustments—no power tools
Adjust each hinge 1/16 inch at a time and spread door weight evenly between all hinges
Use a pry bar to reduce downward weight of door panel before making vertical adjustments
Also available in steel base version: 370003

Priced and sold each.

Fill out our MPL form or call us to ensure accurate purchasing and correct fit.

Frequently Asked Questions

What is the difference between NRP and regular hinges?

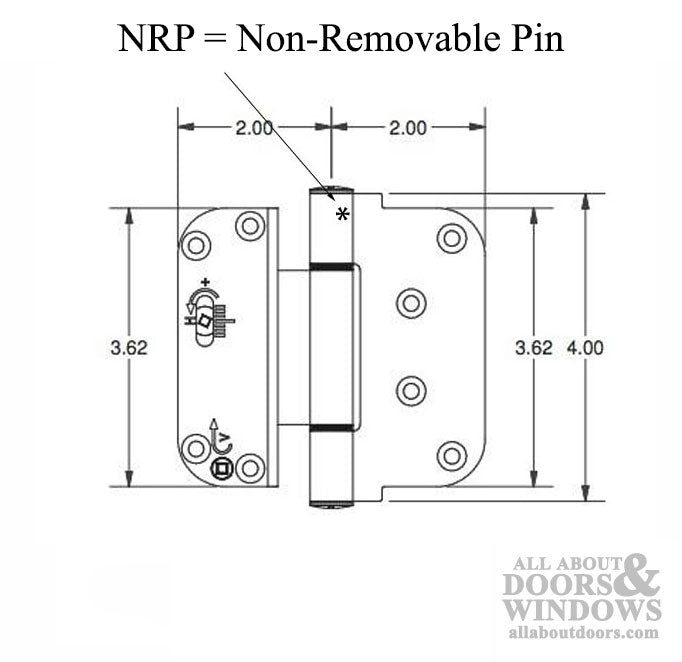

NRP stands for Non-Removable Pin. This design prevents the hinge pin from being removed from the outside, which is important for outswing doors where the hinge pins are exposed to the exterior for added security.

How do I adjust this hinge?

Use a square drive (Robertson drive) with hand tools only. For vertical adjustment, use a pry bar to reduce door weight, then turn the drive to raise or lower the door. For horizontal adjustment, turn the drive to increase or decrease the door reveal. Adjust each hinge 1/16 inch at a time.

Should I choose the brass or steel base version?

The brass base version (this product) is recommended for coastal areas or environments with high humidity and salt exposure due to its superior corrosion resistance. The steel base version (370003) is suitable for standard inland applications.
