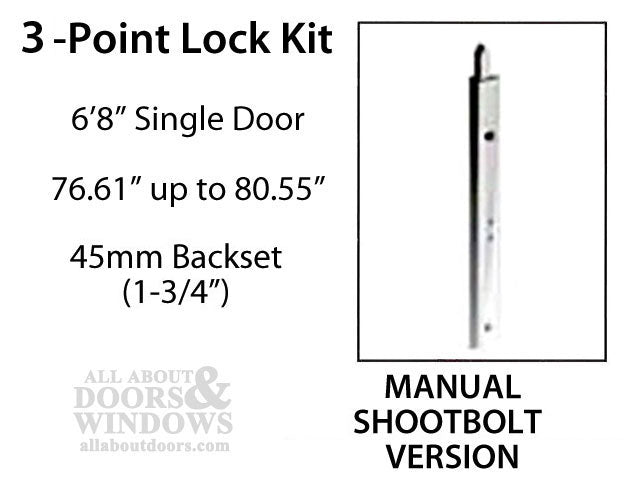

Hoppe Manual Shootbolt System Kit for 6' 8" Doors – 45mm Backset, 16mm Faceplate

Hoppe Manual Shootbolt System Kit for 6' 8" Doors – 45mm Backset, 16mm Faceplate

SKU:

$372.60 - $395.60
$372.60
$372.60 - $395.60
$372.60
  • Backset: 1-3/4" (45mm)
  • PZ: Not applicable (manual shootbolt system)
  • Faceplate Width: 5/8" (16mm)
  • Handle Height: 36" (914mm)
  • Door Panel Height: 76.61" to 80.55" (1946mm - 2046mm)
  • Door Thickness: 1-3/4" (45mm)
  • Complete kit for 6' 8" (80") tall active door panels
  • Includes bottom assembly with shootbolt, middle extension, top shootbolt extension, strikes, dust caps, cover plate, and installation screws
  • Stainless steel strikes included
  • Sold as a complete kit
  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Visa
Not sure this is the right part?
Before you order, if you'd like confidence this is the right part for your job, please fill out our multipoint lock identifier form or call us at (816) 221-6543 .
*We have a fully-staffed customer support team happy to help!

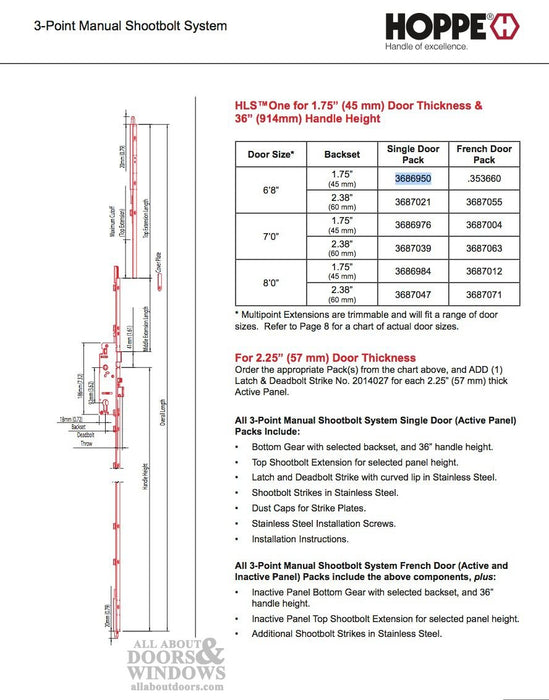

Hoppe Manual Shootbolt System Kit – 6' 8" Door (3686950-KIT)

This complete Hoppe Manual Shootbolt System Kit is designed for 6 feet 8 inches (80 inches) tall active door panels. The kit provides everything needed to install a manual shootbolt locking system on multipoint doors, offering secure top and bottom locking points when connected.

The system accommodates door panel heights ranging from 76.61 inches to 80.55 inches (1946mm to 2046mm) and is designed for doors with a 1-3/4 inch (45mm) thickness. With a 1-3/4 inch (45mm) backset and 5/8 inch (16mm) faceplate width, this kit integrates seamlessly with compatible Hoppe multipoint lock systems.

Technical Information

  • Backset: 1-3/4 inches (45mm)
  • Faceplate Width: 5/8 inch (16mm)
  • Handle Height: 36 inches (914mm)
  • Door Thickness: 1-3/4 inches (45mm)
  • Door Panel Height Range: 76.61 to 80.55 inches (1946mm - 2046mm)

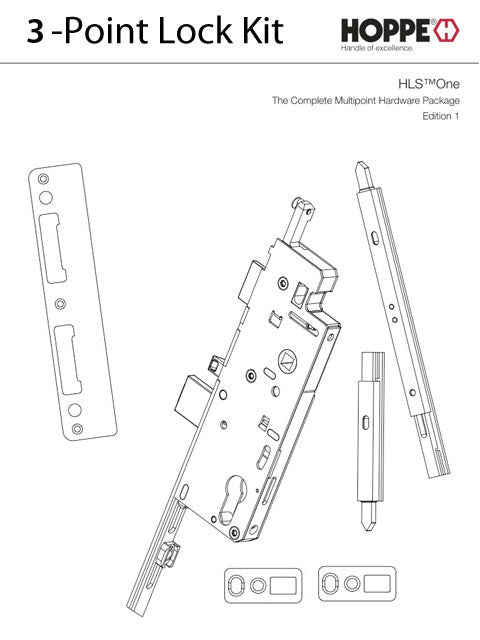

Kit Includes

  • 1 - 8778331 16mm Bottom Assembly, 1-3/4 inch Backset with Shootbolt attached
  • 1 - 8778691 Middle Extension
  • 1 - 8778611 Top Shootbolt Extension
  • 1 - 8787747 Latch & Deadbolt Strike plate, curved lip - Stainless Steel
  • 2 - 2098911 Shootbolt Strikes (Top & Bottom)
  • 2 - 8786547 Dust caps for Latch & Deadbolt Strike
  • 1 - 2875118 Cover / Connection Plate for middle to upper shootbolt
  • 20 - 3176301 Installation Screws 1-3/8 inch

Related Parts

Sold as a complete kit.

Fill out our MPL form or call us to ensure accurate purchasing and correct fit.

Frequently Asked Questions

How do I change the handing on this Hoppe shootbolt system?

Hoppe multipoint locks can be rehanded. Insert a small screwdriver into the designated hole, push forward, twist, and release to reverse the latch direction.

What door heights does this kit fit?

This kit fits door panels from 76.61 inches to 80.55 inches tall (approximately 6 feet 4 inches to 6 feet 8 inches) when the top and bottom extensions are connected.

Does this kit include all necessary hardware for installation?

Yes, this complete kit includes the bottom assembly with shootbolt, middle extension, top shootbolt extension, stainless steel strikes, dust caps, cover plate, and 20 installation screws.
