Hoppe HLS-ONE 3-Point Manual Tongue System Kit for 7' Doors – 60mm Backset

SKU:

$776.25 - $799.25

$776.25

$776.25 - $799.25

$776.25

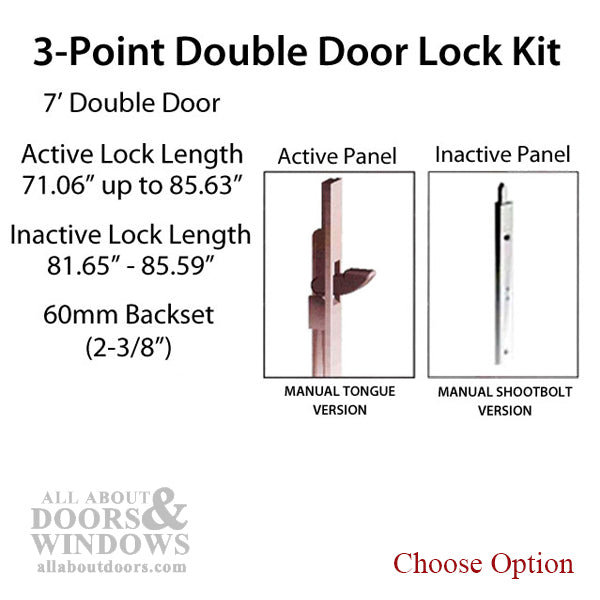

Application: Complete 3-point manual tongue system for 7' (84") active and inactive door panels
Backset: 2-3/8" (60mm)
Faceplate Width: 5/8" (16mm)
Handle Height: 36" (914mm)
Active Lock Top Tongue Position: 29.25" (743mm)
Active Lock Bottom Tongue Position: 26.42" (671mm)
Shootbolt Throw: 20mm
Active Lock Length Range: 71.06" to 85.63" when connected
Inactive Lock Length Range: 81.65" to 85.59" when connected
Finish: Stainless steel strikes and hardware
Includes active gear, inactive gear, top extensions, strikes, screws, dust caps, and instruction booklet
Handing can be changed in the field

Quantity

Not sure this is the right part?

Before you order, if you'd like confidence this is the right part for your job, please fill out our multipoint lock identifier form or call us at (816) 221-6543 .

*We have a fully-staffed customer support team happy to help!

Product Details

Hoppe HLS-ONE 3-Point Kit – 7' Doors, 60mm (3270874-KIT)

This Hoppe HLS-ONE-HLS9000 3-Point Manual Tongue System Kit provides a complete locking solution for 7-foot (84 inches) high double doors. The kit includes everything needed for both the active and inactive door panels, making it ideal for French door or double door applications.

The active panel gear features a manual tongue system with latch, deadbolt, and tongue locking points. The inactive panel gear includes shootbolt mechanisms at the top and bottom for secure multi-point engagement. Both systems share a 2-3/8 inch (60mm) backset and 5/8 inch (16mm) faceplate width for consistent installation.

Technical Information

Backset: 2-3/8 inches (60mm)
Faceplate Width: 5/8 inch (16mm)
Handle Height: 36 inches (914mm)
Active Top Tongue Position: 29.25 inches (743mm)
Active Bottom Tongue Position: 26.42 inches (671mm)
Shootbolt Throw: 20mm
Active Lock Length Range: 71.06 inches to 85.63 inches
Inactive Lock Length Range: 81.65 inches to 85.59 inches

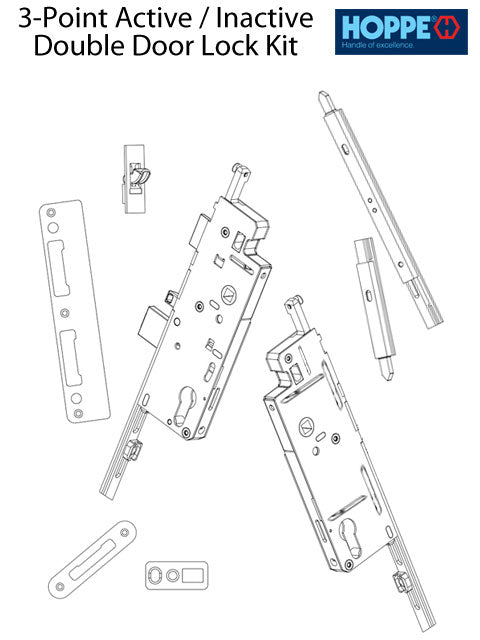

Kit Includes

1 - Top Extension with tongue position at 29.25 inches
1 - Bottom Active Gear with tongue position at 26.42 inches
1 - Latch and Deadbolt Strike Plate (Radius/Curved Lip) - Stainless Steel
17 - Stainless Steel Screws 1-3/8 inches
10 - Stainless Steel Screws 3/4 inch
2 - Stainless Steel Tongue Strike Plates with Radius Corners
4 - Dust Caps for Latch and Deadbolt Tongue Strikes - Black
1 - Bottom Inactive Gear with Bottom Shootbolt
1 - Top Shootbolt Extension
2 - Stainless Steel Shootbolt Strikes
1 - Instruction Booklet

Notes

Shootbolts on inactive panel are located at the extreme top and bottom of the lock
Handing can be changed in the field - see Hoppe instructions for details
Active panel uses HLS-ONE-HLS9000 system
Inactive panel uses HLS9000 system

Priced and sold as a complete kit.

Fill out our MPL form or call us to ensure accurate purchasing and correct fit.

Frequently Asked Questions

Can I change the handing on this Hoppe multipoint lock?

Yes, the handing can be changed in the field. Hoppe provides instructions for reversing the mishandling device direction.

What door height is this kit designed for?

This kit is designed for 7-foot (84 inch) high doors. The active lock can accommodate heights from 71.06 to 85.63 inches, and the inactive lock from 81.65 to 85.59 inches when fully assembled.

What is included for the inactive door panel?

The inactive panel components include a bottom gear with shootbolt, a top shootbolt extension, and two stainless steel shootbolt strikes for secure top and bottom engagement.
