Hoppe HLS9000 Double Door Multipoint Kit for 6' 8" Doors – 45mm Backset

SKU:

$713.00 - $736.00

$713.00

$713.00 - $736.00

$713.00

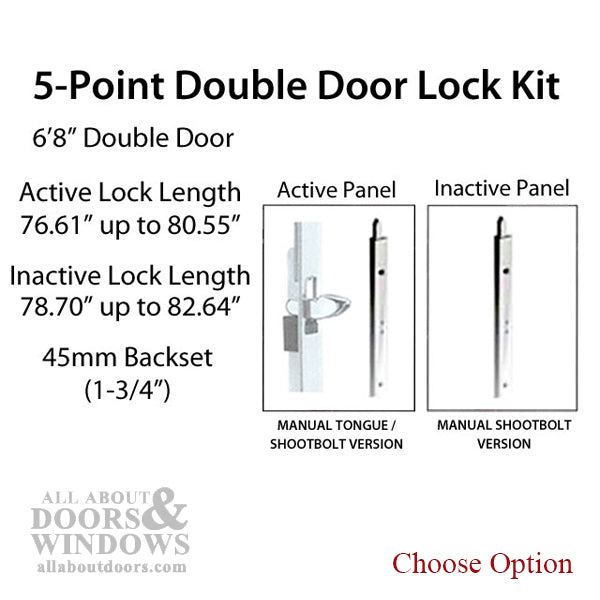

Application: Complete 5-point manual tongue/shootbolt system for 6' 8" (2032mm) double doors
Backset: 45mm (1-3/4")
Faceplate Width: 16mm (5/8")
Handle Height: 36" (914mm)
Active Top Tongue Position: 23.62" (600mm)
Active Bottom Tongue Position: 24.41" (620mm)
Active Lock Length Range: 76.61" to 80.55" (1946mm to 2046mm)
Inactive Lock Length Range: 78.70" to 82.64" (1999mm to 2099mm)
Shootbolt Throw: 20mm
Finish: Stainless steel hardware
Includes active gear, inactive gear, extensions, strikes, and all mounting hardware

Quantity

Not sure this is the right part?

Before you order, if you'd like confidence this is the right part for your job, please fill out our multipoint lock identifier form or call us at (816) 221-6543 .

*We have a fully-staffed customer support team happy to help!

Product Details

Hoppe HLS9000 Double Door Kit – 45mm, 6' 8" (3210687-KIT)

This Hoppe HLS-ONE-HLS9000 kit provides a complete 5-point manual tongue and shootbolt locking system for 6 feet 8 inch (80 inch) high double doors. The kit includes everything needed to secure both the active and inactive panels with multipoint locking hardware.

The active panel features a 5-point lock with tongue and shootbolt engagement, while the inactive panel uses a shootbolt gear system with top extension. Both systems feature a 45mm backset and 16mm (5/8 inch) faceplate width for compatibility with standard multipoint door preparations.

Technical Information

Backset: 45mm (1-3/4 inches)
Faceplate Width: 16mm (5/8 inch)
Handle Height: 36 inches (914mm)
Active Top Tongue Position: 23.62 inches (600mm)
Active Bottom Tongue Position: 24.41 inches (620mm)
Active Lock Length Range: 76.61 inches to 80.55 inches
Inactive Lock Length Range: 78.70 inches to 82.64 inches
Shootbolt Throw: 20mm

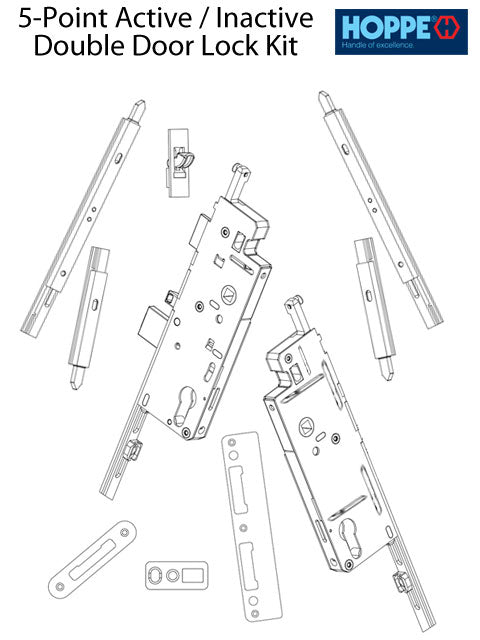

Kit Contents

1 - Top Shootbolt Extension (active)
1 - Middle Extension with tongue position at 23.62 inches
1 - Bottom Active Gear with tongue position at 24.41 inches
1 - Latch and Deadbolt Strike Plate (radius curved lip) - Stainless Steel
17 - Stainless Steel Screws 1-3/8 inches
10 - Stainless Steel Screws 3/4 inch
2 - Stainless Steel Tongue Strike Plates with radius corners
4 - Black Dust Caps for Latch and Deadbolt with Tongue Strikes
1 - Bottom Inactive Gear with bottom shootbolt
1 - Top Shootbolt Extension (inactive)
4 - Stainless Steel Shootbolt Strikes
Additional screws for inactive lock included

Notes

Shootbolts on inactive panel are located at the extreme top and bottom of the lock
Lock handing can be changed - see Hoppe resources for instructions
Mishandling device direction can be adjusted

Priced and sold as a complete kit.

Fill out our MPL form or call us to ensure accurate purchasing and correct fit.

Frequently Asked Questions

Can I change the handing on this Hoppe multipoint lock?

Yes, Hoppe multipoint locks can be rehanded. Hoppe provides instructions for changing the handing on their lock systems.

What door height is this kit designed for?

This kit is designed for 6 foot 8 inch (80 inch) high double doors, with the active lock ranging from 76.61 to 80.55 inches and the inactive lock ranging from 78.70 to 82.64 inches when fully assembled.

What is included in this double door kit?

The kit includes complete active and inactive panel hardware: gears, extensions, stainless steel tongue strikes, shootbolt strikes, dust caps, and all necessary mounting screws.
