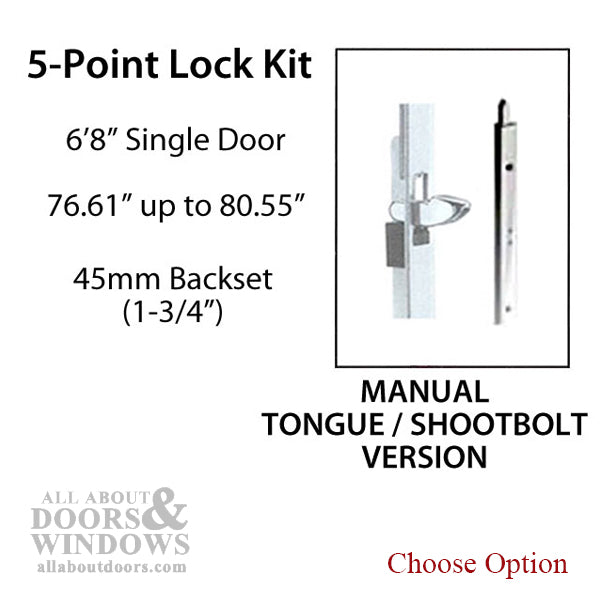

Hoppe HLS-ONE 5-Point Multipoint Lock Kit for 6' 8" Doors – 45mm Backset, 92mm PZ

Hoppe HLS-ONE 5-Point Multipoint Lock Kit for 6' 8" Doors – 45mm Backset, 92mm PZ

SKU:

$419.75 - $442.75
$419.75
$419.75 - $442.75
$419.75
  • System: HLS-ONE-HLS9000 5-point manual tongue multipoint lock system
  • Door Height: Fits 6' 8" (80") active panels (76.61" to 80.55" when assembled)
  • Backset: 1-3/4" (45mm)
  • PZ: 92mm
  • Faceplate Width: 5/8" (16mm)
  • Handle Height: 36" (914mm)
  • Top Tongue Position: 23.62" (600mm)
  • Bottom Tongue Position: 24.41" (620mm)
  • Shootbolts: Located at extreme top and bottom
  • Finish: Stainless steel hardware
  • Complete kit includes gear, extensions, strikes, screws, dust caps, and instruction booklet
  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Visa
Not sure this is the right part?
Before you order, if you'd like confidence this is the right part for your job, please fill out our multipoint lock identifier form or call us at (816) 221-6543 .
*We have a fully-staffed customer support team happy to help!

Hoppe HLS-ONE 5-Point Lock Kit – 6' 8" Door (3210679-KIT)

This Hoppe HLS-ONE-HLS9000 5-point manual tongue multipoint lock system is designed for 6 feet 8 inches (80 inches) high active door panels. The complete kit provides everything needed for a secure multipoint locking solution with tongue and shootbolt engagement at multiple points along the door frame.

When the top, middle, and bottom components are connected, this system accommodates doors ranging from 76.61 to 80.55 inches in height. The 45mm backset gear works with standard Hoppe handleset trim and provides reliable operation for residential entry doors.

Technical Information

  • Faceplate Width: 5/8 inch (16mm)
  • Backset: 1-3/4 inches (45mm)
  • PZ: 92mm
  • Handle Height: 36 inches (914mm)
  • Top Tongue Position: 23.62 inches (600mm)
  • Bottom Tongue Position: 24.41 inches (620mm)
  • Shootbolt Locations: Extreme top and bottom of door

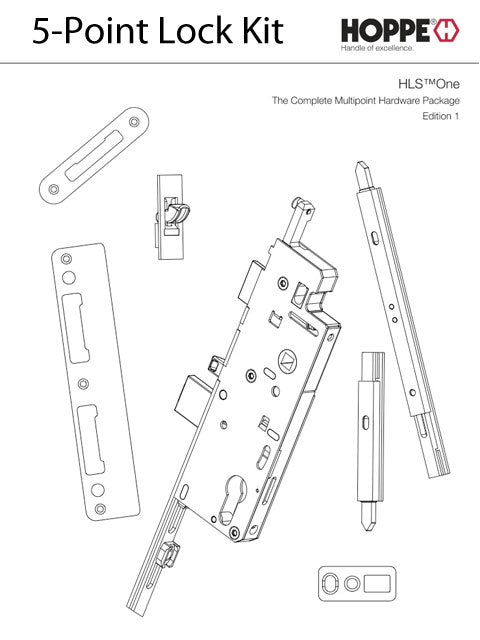

Kit Includes

  • 1 - Top Shootbolt Extension
  • 1 - Middle Extension (tongue position at 23.62 inches)
  • 1 - Bottom Gear (tongue position at 24.41 inches)
  • 1 - Latch & Deadbolt Strike Plate (radius curved lip) - Stainless Steel
  • 17 - Stainless Steel Screws 1-3/8 inches
  • 10 - Stainless Steel Screws 3/4 inch
  • 2 - Stainless Steel Tongue Strike Plates with radius corners
  • 2 - Stainless Steel Shootbolt Strikes
  • 4 - Black Dust Caps for Latch & Deadbolt with Tongue Strikes
  • 1 - Instruction Booklet

Notes

  • Lock handing can be changed in the field
  • Mishandling device direction is adjustable
  • Top extension connects to the lockbox for complete assembly

Fill out our MPL form or call us to ensure accurate purchasing and correct fit.

Frequently Asked Questions

Can I change the handing on this Hoppe multipoint lock?

Yes, Hoppe multipoint locks can be rehanded in the field. The lock handing and mishandling device direction are both adjustable.

What door heights does this 5-point lock kit fit?

When fully assembled with top, middle, and bottom components connected, this kit fits doors ranging from 76.61 to 80.55 inches tall, designed for standard 6 foot 8 inch (80 inch) active panels.

What is included in this multipoint lock kit?

The kit includes the bottom gear, middle extension, top shootbolt extension, all strike plates, stainless steel screws, dust caps, and an instruction booklet for complete installation.
