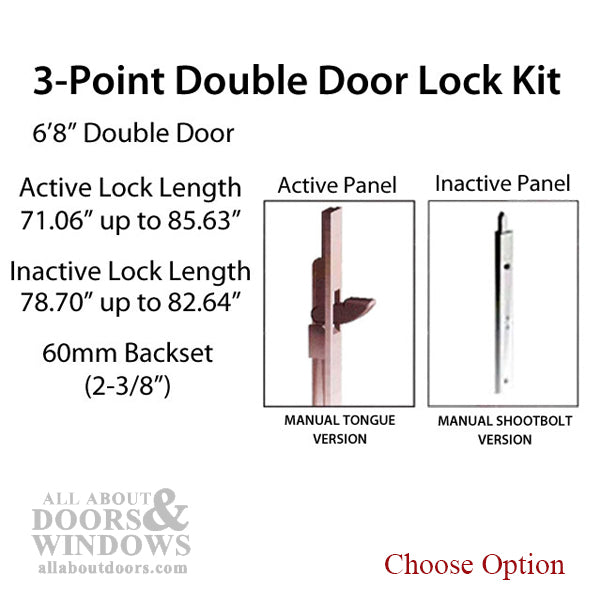

Hoppe HLS9000 Double Door 3-Point Lock Kit for 6' 8" Doors – 60mm Backset

SKU:

$776.25 - $799.25

$776.25

$776.25 - $799.25

$776.25

Application: Complete 3-point manual tongue system for 6' 8" (2032mm) double doors
Backset: 2-3/8" (60mm) for both active and inactive panels
Faceplate Width: 5/8" (16mm)
Handle Height: 36" (914mm)
Active Panel Tongue Positions: Top at 29.25" (743mm), Bottom at 26.42" (671mm)
Shootbolt Throw: 20mm
Active Lock Length Range: 71.06" to 85.63" (1804.9mm to 2175mm)
Inactive Lock Length Range: 78.70" to 82.64" (1999mm to 2099mm)
Includes stainless steel tongue strikes, shootbolt strikes, and all mounting hardware
Kit contains active gear, inactive gear, top extensions, dust caps, and instruction booklet

Quantity

Not sure this is the right part?

Before you order, if you'd like confidence this is the right part for your job, please fill out our multipoint lock identifier form or call us at (816) 221-6543 .

*We have a fully-staffed customer support team happy to help!

Product Details

Hoppe HLS9000 Double Door Kit – 60mm Backset, 6' 8" (3133706-KIT)

This Hoppe HLS-ONE-HLS9000 kit provides a complete 3-point manual tongue locking system for double doors with 6 feet 8 inches (2032mm) high panels. The kit includes everything needed to secure both the active and inactive panels of your double door configuration.

The active panel features a 3-point locking system with tongues positioned at 29.25 inches (743mm) from the handle center at the top and 26.42 inches (671mm) at the bottom. The inactive panel uses a shootbolt system with bolts located at the extreme top and bottom of the lock for secure engagement into the frame.

Technical Information

Backset: 2-3/8 inches (60mm) for both panels
Faceplate Width: 5/8 inch (16mm)
Handle Height: 36 inches (914mm)
Active Top Tongue Position: 29.25 inches (743mm)
Active Bottom Tongue Position: 26.42 inches (671mm)
Shootbolt Throw: 20mm
Active Lock Length Range: 71.06 inches to 85.63 inches (1804.9mm to 2175mm)
Inactive Lock Length Range: 78.70 inches to 82.64 inches (1999mm to 2099mm)

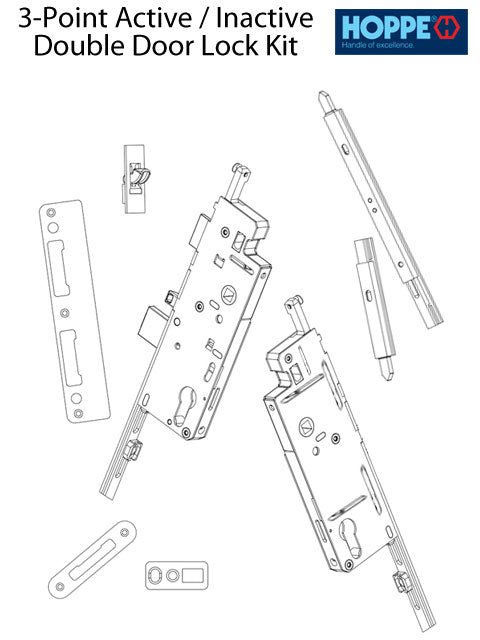

Kit Contents

1 - Top Extension with tongue position at 29.25 inches
1 - Bottom Active Gear with tongue position at 26.42 inches
1 - Latch and Deadbolt Strike Plate (Radius/Curved Lip) - Stainless Steel
17 - Stainless Steel Screws 1-3/8 inches
10 - Stainless Steel Screws 3/4 inch
2 - Stainless Steel Tongue Strike Plates with Radius Corners
4 - Black Dust Caps for Latch and Deadbolt with Tongue Strikes
1 - Bottom Inactive Gear with Bottom Shootbolt
1 - Top Shootbolt Extension
2 - Stainless Steel Shootbolt Strikes
1 - Instruction Booklet

Notes

Lock handing can be changed - see Hoppe resources for instructions
Mishandling device direction can also be adjusted

Fill out our MPL form or call us to ensure accurate purchasing and correct fit.

Frequently Asked Questions

Can I change the handing on this Hoppe multipoint lock?

Yes, the lock handing can be changed. Hoppe provides instructions for reversing the handing on their multipoint locks.

What is the difference between the active and inactive panel locks in this kit?

The active panel uses a 3-point tongue system operated by the handle, while the inactive panel uses a shootbolt system that engages at the top and bottom of the door frame.

What door height is this kit designed for?

This kit is designed for 6 feet 8 inches (80 inch) tall double door panels, with adjustable lock lengths to accommodate slight variations.
