Hoppe HLS9000 Double Door Multipoint Kit for 8' Doors – 60mm Backset

SKU:

$937.25 - $960.25

$937.25

$937.25 - $960.25

$937.25

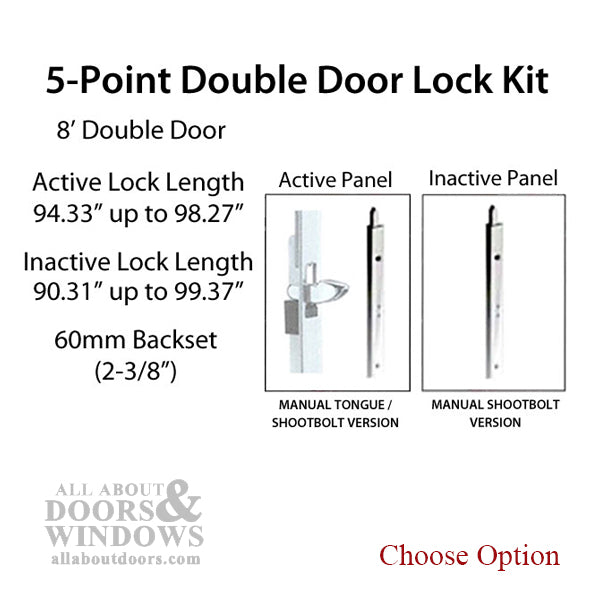

Application: Complete 5-point manual tongue/shootbolt system for 8' (2438mm) high double doors
Backset: 2-3/8" (60mm) for both active and inactive panels
Faceplate Width: 5/8" (16mm)
Handle Height: 36" (914mm)
Active Top Tongue Position: 41.34" (1050mm)
Active Bottom Tongue Position: 24.41" (620mm)
Shootbolt Throw: 20mm
Active Lock Length Range: 94.33" to 98.27" (2396mm to 2496mm)
Inactive Lock Length Range: 90.31" to 99.37" (2294mm to 2524mm)
Includes stainless steel strikes, screws, dust caps, and instruction booklet
Sold as a complete kit

Quantity

Not sure this is the right part?

Before you order, if you'd like confidence this is the right part for your job, please fill out our multipoint lock identifier form or call us at (816) 221-6543 .

*We have a fully-staffed customer support team happy to help!

Product Details

Hoppe HLS9000 Double Door Kit – 8' Doors, 60mm Backset (3123372-KIT)

This Hoppe HLS-ONE-HLS9000 kit provides a complete 5-point manual tongue and shootbolt locking system designed for 8-foot (96-inch) high double doors. The kit includes everything needed for both the active and inactive panels, making it a comprehensive solution for securing tall double-door entries.

The active panel features a 5-point locking system with tongues positioned at 41.34 inches and 24.41 inches from the handle center, plus shootbolts at the top and bottom. The inactive panel uses a shootbolt gear system with shootbolts located at the extreme top and bottom of the lock for maximum security.

Both panels share the same 2-3/8 inch (60mm) backset and 5/8 inch (16mm) faceplate width, ensuring consistent alignment. The handle height is set at 36 inches from the floor. When fully assembled, the active lock length ranges from 94.33 to 98.27 inches, while the inactive lock length ranges from 90.31 to 99.37 inches.

Technical Information

Backset: 2-3/8 inches (60mm)
Faceplate Width: 5/8 inch (16mm)
Handle Height: 36 inches (914mm)
Active Top Tongue Position: 41.34 inches (1050mm)
Active Bottom Tongue Position: 24.41 inches (620mm)
Shootbolt Throw: 20mm
Active Lock Length Range: 94.33 to 98.27 inches
Inactive Lock Length Range: 90.31 to 99.37 inches
Door Height: 8 feet (96 inches)

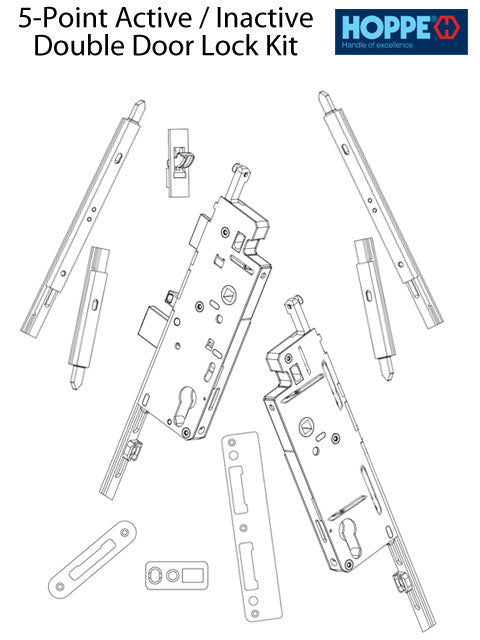

Kit Contents

1 - Top Shootbolt Extension (active)
1 - Middle Extension with tongue position at 41.34 inches
1 - Bottom Active Gear with tongue position at 24.41 inches
1 - Latch and Deadbolt Strike plate (radius curved lip) in stainless steel
2 - Stainless Steel Tongue Strike plates with radius corners
4 - Dust caps for latch and deadbolt with tongue strikes (black)
17 - Stainless Steel Screws 1-3/8 inches
10 - Stainless Steel Screws 3/4 inch
1 - Bottom Inactive Gear with bottom shootbolt
1 - Top Shootbolt Extension (inactive)
4 - Stainless Steel Shootbolt strikes
Additional screws for inactive lock
1 - Instruction booklet

Notes

Lock handing can be changed in the field
Mishandling device direction can be adjusted

Sold as a complete kit.

Fill out our MPL form or call us to ensure accurate purchasing and correct fit.

Frequently Asked Questions

Can I change the handing on this Hoppe multipoint lock?

Yes, the handing can be changed in the field. Hoppe provides instructions for reversing the lock handing.

What door height is this kit designed for?

This kit is specifically designed for 8-foot (96-inch) high double doors, with adjustable lock lengths to accommodate slight variations.

What is included for the inactive panel?

The inactive panel includes a bottom gear with shootbolt, a top shootbolt extension, four stainless steel shootbolt strikes, and mounting screws.
