Hoppe HLS-ONE/HLS9000 5-Point Multipoint Lock Kit for 6' 8" Doors – 60mm Backset

SKU:

$892.38 - $892.38

$892.38

$892.38 - $892.38

$892.38

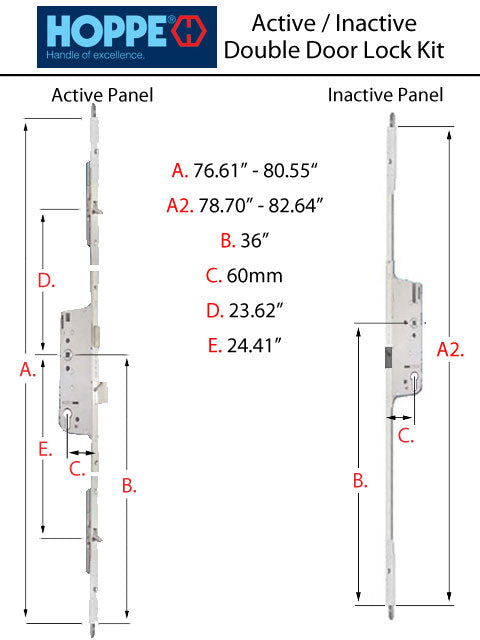

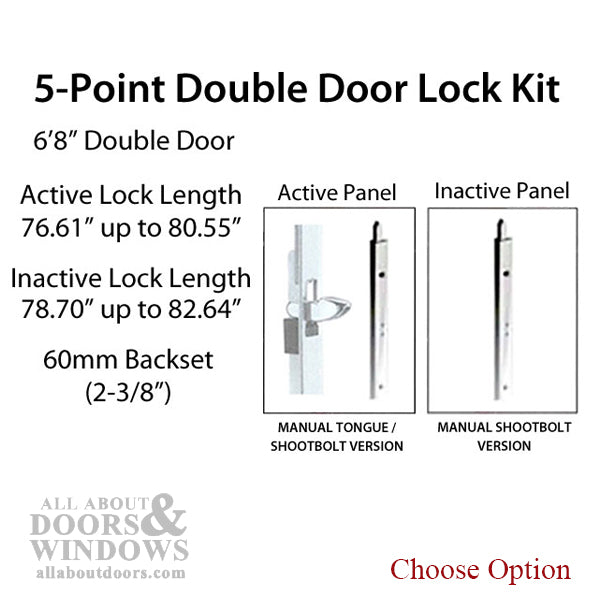

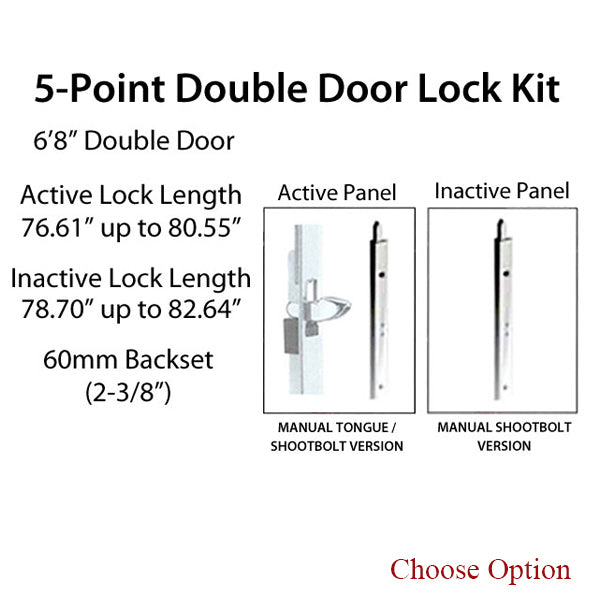

System: Complete 5-point manual tongue/shootbolt kit for active and inactive panels
Door Height: 6' 8" (2032mm) high doors
Backset: 60mm (2-3/8")
Faceplate Width: 16mm (5/8")
Handle Height: 36" (914mm)
Active Top Tongue Position: 23.62" (600mm)
Active Bottom Tongue Position: 24.41" (620mm)
Shootbolt Throw: 20mm
Active Lock Length Range: 76.61" to 80.55" (1946mm to 2046mm)
Inactive Lock Length Range: 78.70" to 82.64" (1999mm to 2099mm)
Finish: Stainless steel strikes and hardware
Includes active gear, inactive gear, extensions, strikes, screws, dust caps, and instructions

Quantity

Not sure this is the right part?

Before you order, if you'd like confidence this is the right part for your job, please fill out our multipoint lock identifier form or call us at (816) 221-6543 .

*We have a fully-staffed customer support team happy to help!

Product Details

Hoppe HLS-ONE/HLS9000 5-Point Kit – 60mm, 6' 8" (3123321-KIT)

This comprehensive Hoppe multipoint lock kit provides everything needed to secure both active and inactive panels on 6 feet 8 inches (80 inches) tall French doors or double doors. The kit combines the HLS-ONE-HLS9000 5-point manual tongue and shootbolt system for the active panel with the HLS9000 inactive shootbolt gear and top extension for the inactive panel.

The active panel lock features a 5-point locking system with tongues and shootbolts for superior security. The inactive panel lock includes shootbolts located at the extreme top and bottom positions. Both locks share the same 60mm (2-3/8 inches) backset and 16mm (5/8 inch) faceplate width for consistent installation.

Technical Information

Backset: 60mm (2-3/8 inches)
Faceplate Width: 16mm (5/8 inch)
Handle Height: 36 inches (914mm)
Active Top Tongue Position: 23.62 inches (600mm)
Active Bottom Tongue Position: 24.41 inches (620mm)
Shootbolt Throw: 20mm
Active Lock Length Range: 76.61 inches to 80.55 inches
Inactive Lock Length Range: 78.70 inches to 82.64 inches

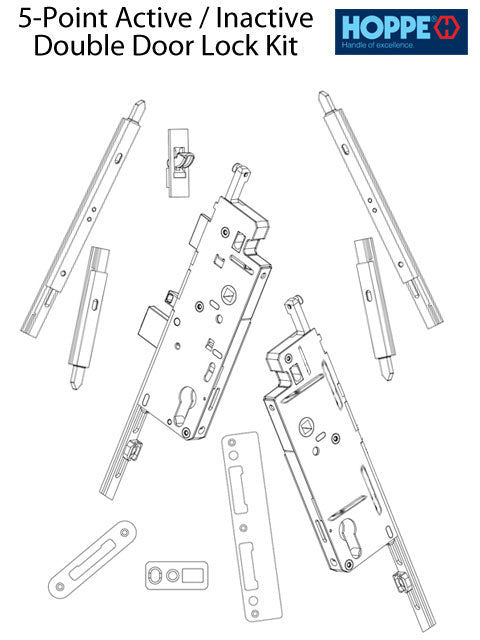

Kit Contents

1 - Top Shootbolt Extension (active)
1 - Middle Extension with tongue position at 23.62 inches
1 - Bottom Active Gear with tongue position at 24.41 inches
1 - Latch and Deadbolt Strike Plate (radius curved lip) - Stainless Steel
17 - Stainless Steel Screws 1-3/8 inches
10 - Stainless Steel Screws 3/4 inch
2 - Stainless Steel Tongue Strike Plates with radius corners
4 - Black Dust Caps for latch and deadbolt with tongue strikes
1 - Instruction Booklet
1 - Bottom Inactive Gear with bottom shootbolt
1 - Top Shootbolt Extension (inactive)
4 - Stainless Steel Shootbolt Strikes
Additional screws for inactive lock

Notes

Handing can be changed on Hoppe multipoint locks
Direction of mishandling device can be adjusted
Extensions connect to gear for adjustable total lock length

Priced and sold as a complete kit.

Fill out our MPL form or call us to ensure accurate purchasing and correct fit.

Frequently Asked Questions

Can I change the handing on this Hoppe multipoint lock?

Yes, Hoppe multipoint locks can be rehanded. The lock handing can be changed during installation to accommodate left or right swing doors.

What door height is this kit designed for?

This kit is designed for 6 feet 8 inches (80 inches) tall doors. The active lock length ranges from 76.61 to 80.55 inches, and the inactive lock length ranges from 78.70 to 82.64 inches when fully assembled.

What is included in this multipoint lock kit?

The kit includes complete active and inactive panel locks with gears, extensions, stainless steel strikes, screws, dust caps, and an instruction booklet for a full French door or double door installation.
