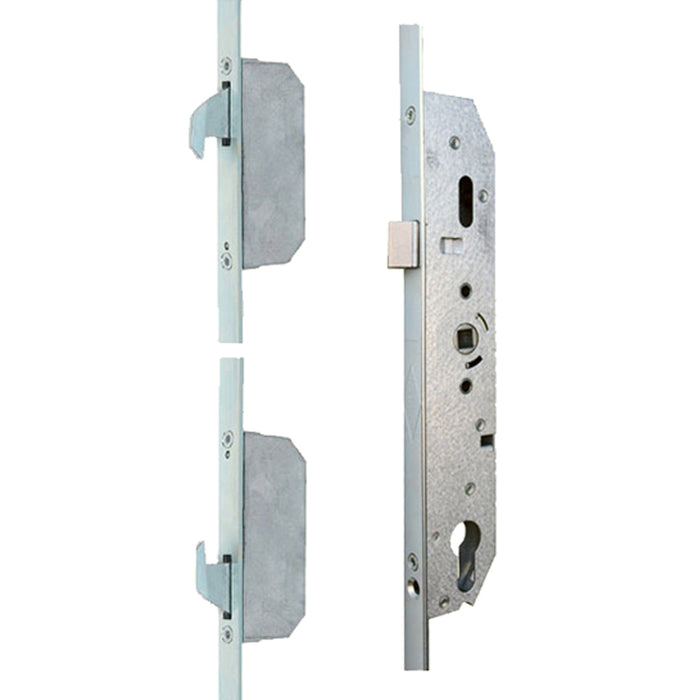

Pella Storm Door Multipoint Lock with Hooks and Spring Latch – 25mm Backset, 92mm PZ

SKU: 305017

$112.59 - $112.59

$112.59

$112.59 - $112.59

$112.59

PZ: 3-5/8" (92mm)
Backset: 1" (25mm) – optional 1-3/8" (35mm) backset available
Overall Length: 59" (1499mm)
Hook to Hook: 49-1/2" (1257mm)
Top Hook Position: 24-3/4" (629mm)
Bottom Hook Position: 24-3/4" (629mm)
Deadbolt Throw (Hooks): 3/4" (19mm)
Spring Latch Throw: 1/2" (13mm)
Compatible with standard multipoint lock hardware trim with Euro cylinder
Used by Pella, Larson, and other storm door manufacturers
Priced and sold each

Not sure this is the right part?

Before you order, if you'd like confidence this is the right part for your job, please fill out our multipoint lock identifier form or call us at (816) 221-6543 .

*We have a fully-staffed customer support team happy to help!

Product Details

Pella Storm Door Multipoint Lock – 1"/92 (305017)

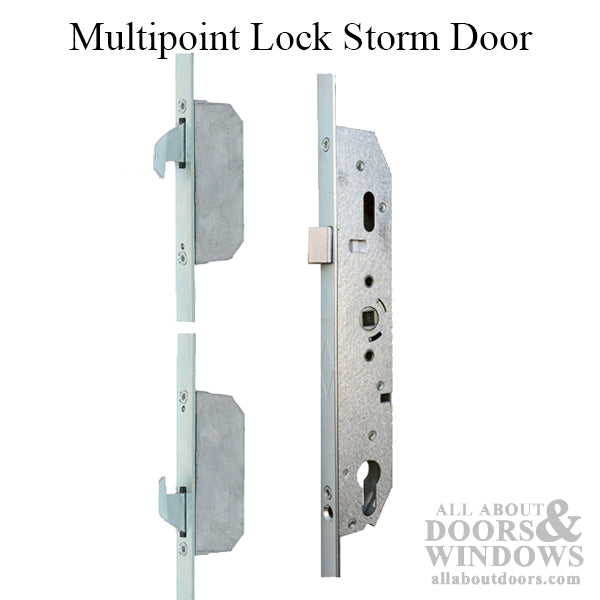

This storm door multipoint lock features top and bottom hooks along with a spring latch for secure, multi-point engagement. Designed for use with Pella, Larson, and other storm door brands, this lock provides reliable security across the full height of your door.

The lock has an overall length of 59 inches (1499mm) with a hook-to-hook distance of 49-1/2 inches (1257mm). Both the top and bottom hooks are positioned at 24-3/4 inches (629mm) from center. The standard backset is 1 inch (25mm), with an optional 1-3/8 inch (35mm) backset configuration available.

The hooks provide a 3/4 inch (19mm) throw for solid engagement, while the spring latch offers a 1/2 inch (13mm) throw. This lock is compatible with standard multipoint lock hardware trim using a Euro cylinder.

Technical Information

Overall Length: 59 inches (1499mm)
Backset: 1 inch (25mm) – optional 1-3/8 inch (35mm)
PZ (Handle Center to Cylinder Center): 3-5/8 inches (92mm)

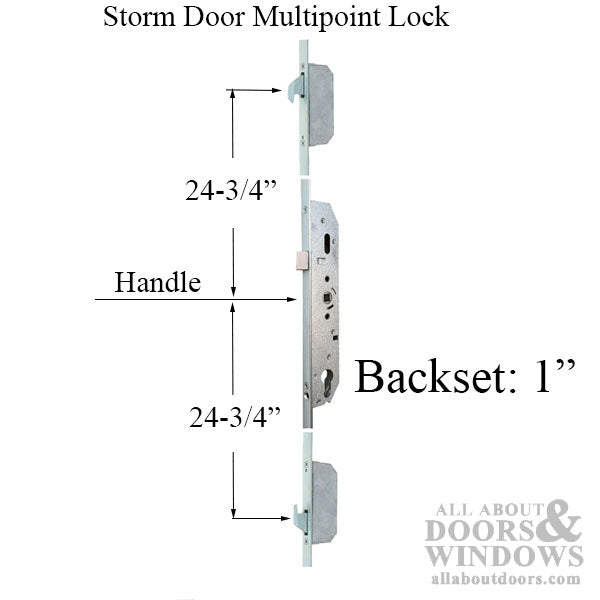

Top Hook Position: 24-3/4 inches (629mm)
Bottom Hook Position: 24-3/4 inches (629mm)
Hook to Hook Distance: 49-1/2 inches (1257mm)
Hook Throw: 3/4 inch (19mm)
Spring Latch Throw: 1/2 inch (13mm)

Notes

Compatible with Pella, Larson, and other storm door manufacturers
Uses standard multipoint lock hardware trim with Euro cylinder

A Phillips head screwdriver is required to reverse (rehand) this lock.

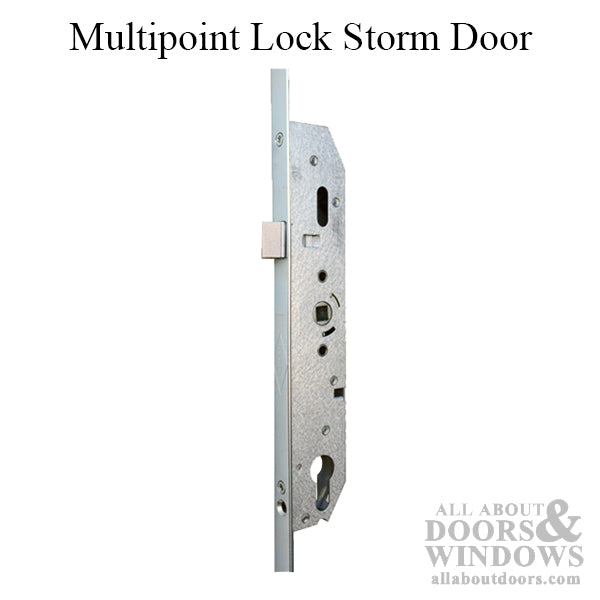

Locate the small Phillips head screw on the side of the mortise case, positioned in line with the latch. Remove this screw to release and fully withdraw the latch from the lock case. After removing the latch, rotate it to the desired handing, then reinstall it into the case. Secure it in place by tightening the Phillips head screw.

Priced and sold each.

Fill out our MPL form or call us to ensure accurate purchasing and correct fit.

Frequently Asked Questions

What doors is this multipoint lock compatible with?

This lock is designed for use with Pella, Larson, and other storm door brands that use a similar multipoint locking system.

What type of cylinder does this lock use?

This lock is compatible with standard multipoint lock hardware trim using a Euro cylinder.

Is there an alternative backset option available?

Yes, this lock comes with a standard 1 inch (25mm) backset, but an optional 1-3/8 inch (35mm) backset configuration is also available.
