Hoppe HLS9000 Multipoint Lock Gear – 60mm Backset, 92mm PZ, 36" Handle Height

Hoppe HLS9000 Multipoint Lock Gear – 60mm Backset, 92mm PZ, 36" Handle Height

SKU 2406362

$210.02 - $210.02
$210.02
$210.02 - $210.02
$210.02
  • PZ: 92mm

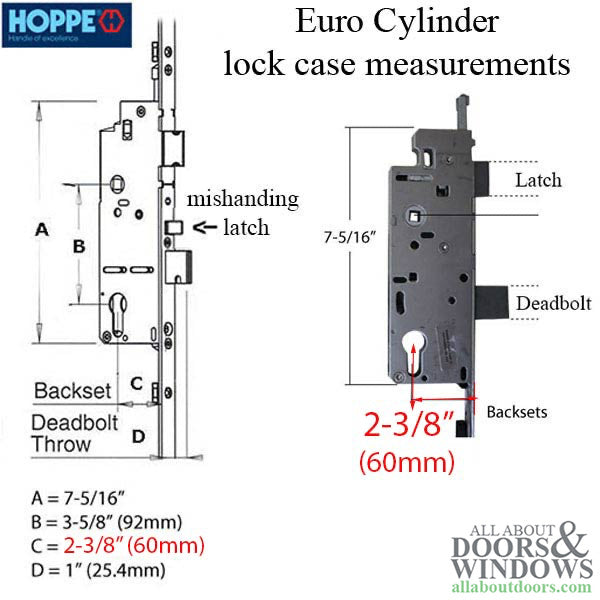

  • Backset: 2-3/8" (60mm)
  • Faceplate: 5/8" (16mm) Stainless Steel

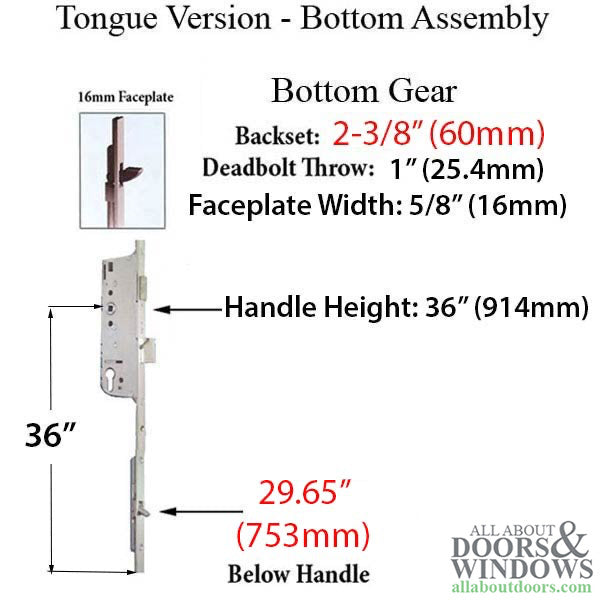

  • Handle Height: 36" (914mm)
  • Deadbolt Throw: 1" (25.4mm)

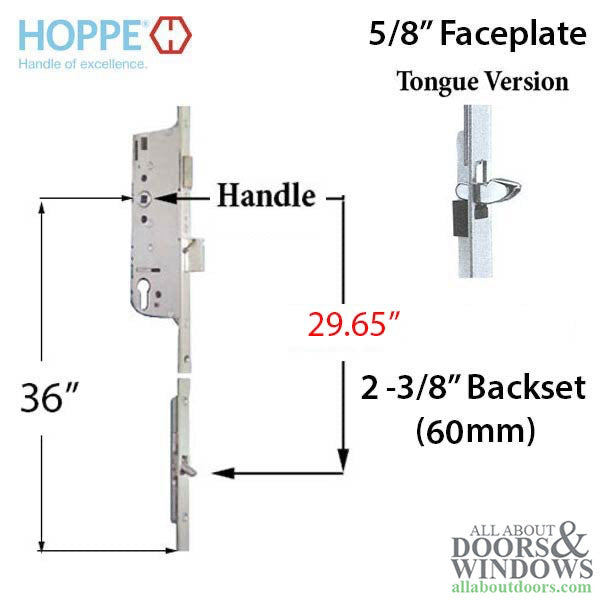

  • Bottom Tongue Position: 29.65" (753mm)
  • Maximum Cutoff: 1.18" (30mm)
  • Locking Points: 3 (1 deadbolt, 2 tongues with top extension applied)
  • Manual gear for active door

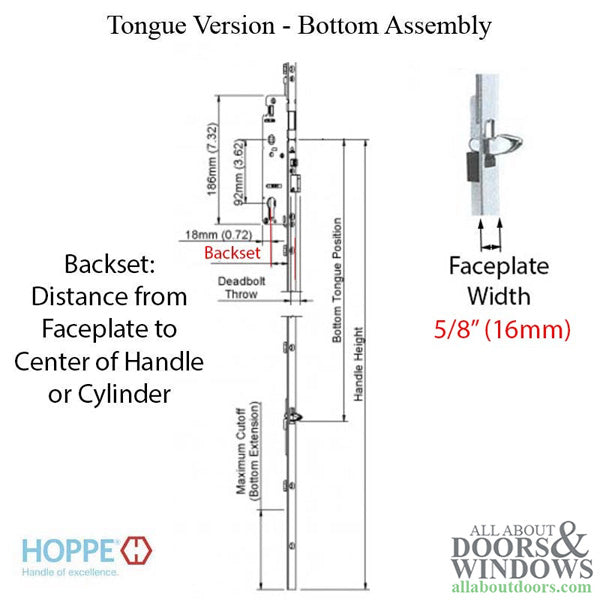

  • Tongue version multipoint lock bottom gear
  • Includes 5 screws
Visa Mastercard American Express Discover
Estimated Delivery
Between December 11 and December 15
*Delivery dates are estimates and may vary based on availability and shipping method

Hoppe HLS9000 Manual Gear – 60/92, 36" HH (2406362)

This Hoppe HLS9000 multipoint lock gear is designed for active doors requiring a manual locking system. The tongue version bottom gear provides reliable security with three locking points: one deadbolt and two tongues when paired with a top extension.

Built with a durable stainless steel faceplate measuring 5/8 inches (16mm) wide, this gear features a 2-3/8 inch (60mm) backset and 92mm PZ spacing. The handle height is positioned at 36 inches (914mm), with the bottom tongue located at 29.65 inches (753mm) from the gear.

Technical Information

  • Hoppe Part Number: 2406362
  • Series: HLS9000
  • PZ: 92mm
  • Backset: 2-3/8 inches (60mm)
  • Faceplate Width: 5/8 inches (16mm)
  • Faceplate Material: Stainless Steel
  • Handle Height: 36 inches (914mm)
  • Deadbolt Throw: 1 inch (25.4mm)
  • Bottom Tongue Position: 29.65 inches (753mm)
  • Maximum Cutoff: 1.18 inches (30mm)
  • Locking Points: 3 (1 deadbolt, 2 tongues)
  • Operation: Manual
  • Screws Included: 5

Notes

  • Tongue version gear for active door applications
  • Requires top extension for full 3-point locking functionality

Fill out our MPL form or call us to ensure accurate purchasing and correct fit.

Frequently Asked Questions

What does PZ 92mm mean?

PZ refers to the distance from the center of the handle to the center of the cylinder (keyhole). A 92mm PZ is a common European standard measurement for multipoint locks.

Do I need additional parts for this multipoint lock to work?

Yes, this is the bottom gear component. You will need a compatible top extension to achieve the full 3-point locking functionality with 1 deadbolt and 2 tongues.

How do I measure my backset?

Measure from the edge of the door to the center of the handle bore hole. This gear has a 2-3/8 inch (60mm) backset.
