Hoppe Inactive Flushbolt Rod for Double French Doors – 3/4" Faceplate, Polished Brass

SKU: 2391199

Sold out

$230.23 - $230.23

$230.23

$230.23 - $230.23

$230.23

Faceplate Width: 3/4" (20mm)
Faceplate End: Radius
Faceplate Finish: Polished Brass (F71)
Rod Backset Options: 0.94" (24mm), 1.02" (26mm), or 1.18" (30mm)
Rod Diameter Options: 5/16" (8mm) or 3/8" (10mm)

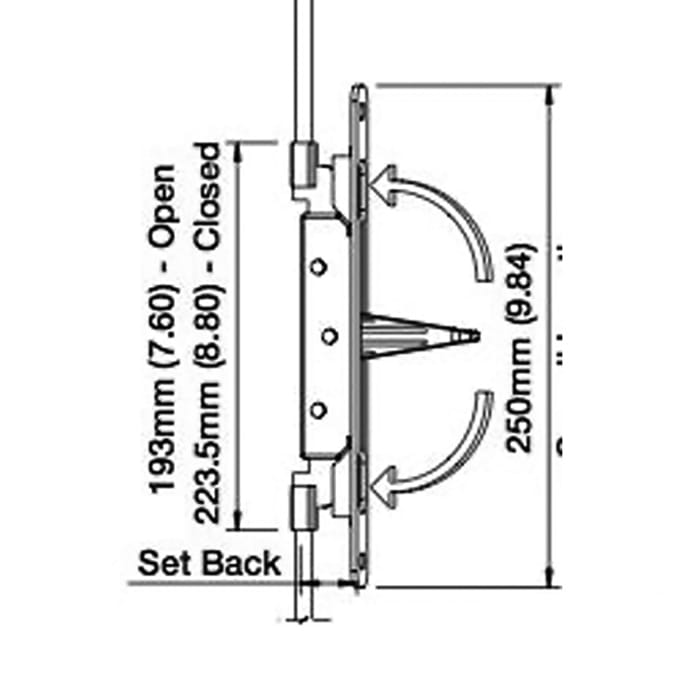

Rod Extended/Locked: 8.80" (223.5mm)
Rod Retracted/Unlocked: 7.60" (193mm)
Overall Body Length: 9.84" (250mm)
For inactive panels on double French doors
Rods can be cut to size if too long
Discounted item – limited to existing inventory
Priced and sold each

This product has been discontinued and is no longer available

Not sure this is the right part?

Before you order, if you'd like confidence this is the right part for your job, please fill out our multipoint lock identifier form or call us at (816) 221-6543 .

*We have a fully-staffed customer support team happy to help!

Product Details

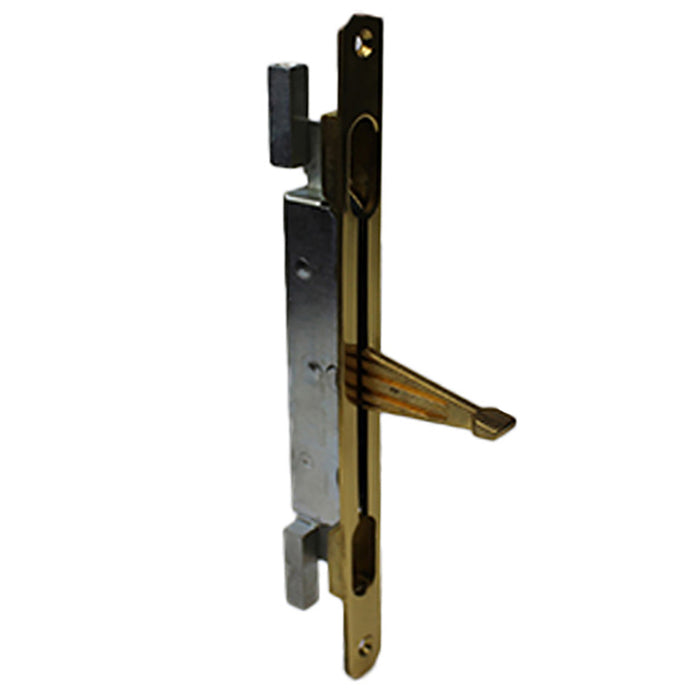

Hoppe Inactive Flushbolt (2391199)

This Hoppe inactive flushbolt rod is designed for use on the inactive panel of double French doors. It secures the stationary door panel at the top and bottom when the active door is in use.

The flushbolt features a polished brass faceplate (F71 finish) with a radius end and a 3/4-inch (20mm) width. Multiple configuration options are available to match your specific door requirements.

Technical Information

Faceplate Width: 3/4 inch (20mm)
Faceplate End Style: Radius
Faceplate Finish: Polished Brass (F71)
Rod Backset Options: 0.94 inches (24mm), 1.02 inches (26mm), or 1.18 inches (30mm)
Rod Diameter Options: 5/16 inch (8mm) or 3/8 inch (10mm)
Rod Extended/Locked Position: 8.80 inches (223.5mm)
Rod Retracted/Unlocked Position: 7.60 inches (193mm)
Overall Flushbolt Body Length: 9.84 inches (250mm)

Notes

Available in Brass or Brushed Stainless faceplate finishes
Rod length varies – top and bottom rods may be cut to size if too long
To determine bottom rod length: Handle height minus 4.8125 inches plus rod length
To determine top rod length: Handle height plus 2.5 inches plus rod length
Add rod lengths plus 7.3125 inches to calculate overall door panel length
This item has been discounted and is limited to existing inventory

Priced and sold each.

Fill out our MPL form or call us to ensure accurate purchasing and correct fit.

Frequently Asked Questions

How do I determine the correct rod length for my door?

For the bottom rod, take your handle height minus 4.8125 inches plus the rod length. For the top rod, take your handle height plus 2.5 inches plus the rod length. Rods can be cut to size if they are too long.

What configuration options are available for this flushbolt?

This flushbolt is available with rod backsets of 0.94 inches (24mm), 1.02 inches (26mm), or 1.18 inches (30mm), and rod diameters of 5/16 inch (8mm) or 3/8 inch (10mm). Faceplate finishes include Brass or Brushed Stainless.

What is a flushbolt used for?

A flushbolt secures the inactive panel of a double French door at the top and bottom, keeping it stationary while the active door panel is in use.
