Amesbury P2000 Multipoint Lock for Short Doors – 45mm Backset, 92mm PZ, 20mm Faceplate

Amesbury P2000 Multipoint Lock for Short Doors – 45mm Backset, 92mm PZ, 20mm Faceplate

SKU: 20-8745-2253

$373.71 - $373.71
$373.71
$373.71 - $373.71
$373.71
  • PZ: 92mm (3-5/8")
  • Backset: 45mm (1-3/4")
  • Faceplate Width: 20mm (3/4")
  • Total Length: 76-1/4" (1936.8mm)
  • Handle Height: 36" (914.4mm)
  • Handle to Top Hook: 30" (762mm)
  • Handle to Bottom Hook: 24-3/4" (628.7mm)
  • Trimmable Top: 6" (152.4mm)
  • Trimmable Bottom: 7" (177.8mm)
  • Door Height: For short doors 77-78"
  • Markings on Faceplate: LF 2253, UF 2254
  • Complete multipoint lock with top and bottom extensions
  • Ships disassembled (extensions taken apart for shipping)
  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Visa
Not sure this is the right part?
Before you order, if you'd like confidence this is the right part for your job, please fill out our multipoint lock identifier form or call us at (816) 221-6543 .
*We have a fully-staffed customer support team happy to help!

Amesbury P2000 MPL – 45/92, 20mm Faceplate (20-8745-2253)

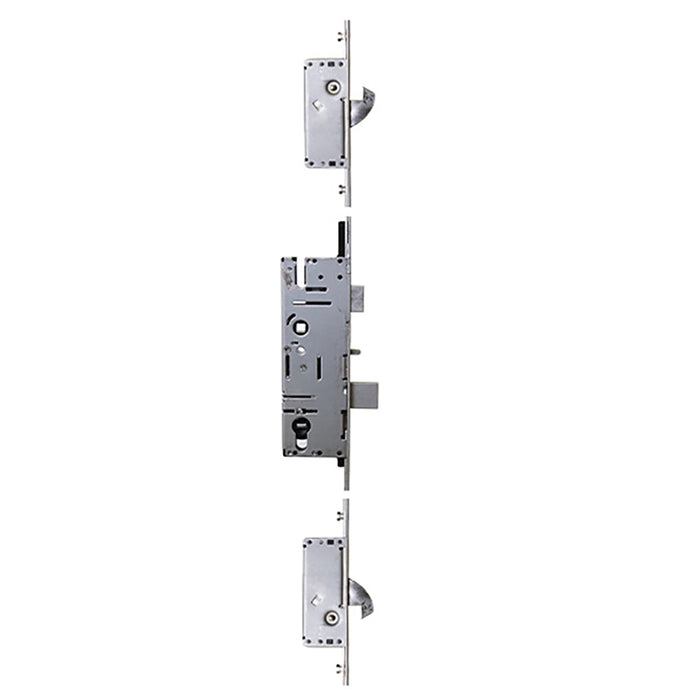

This Amesbury P2000 multipoint lock system is designed for short doors measuring 77 to 78 inches in height. The complete assembly includes the main lock body along with top and bottom extensions, which are shipped disassembled for safe transport.

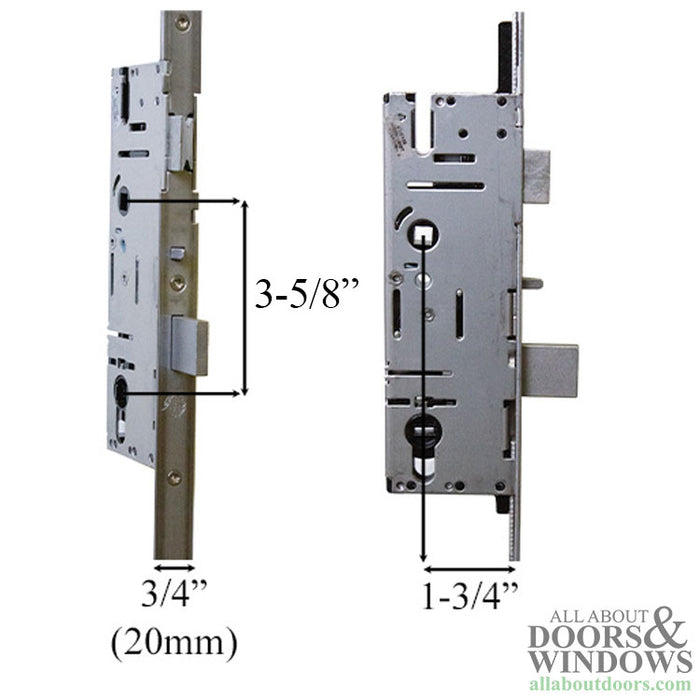

The lock features a 45mm (1-3/4 inch) backset and 92mm (3-5/8 inch) PZ measurement, with a 20mm (3/4 inch) wide faceplate. The total assembled length is 76-1/4 inches (1936.8mm), with the handle positioned at 36 inches from the bottom.

Technical Information

  • PZ: 92mm (3-5/8 inches)
  • Backset: 45mm (1-3/4 inches)
  • Faceplate Width: 20mm (3/4 inches)
  • Total Length: 76-1/4 inches (1936.8mm)
  • Handle Height: 36 inches (914.4mm)
  • Handle to Top Hook: 30 inches (762mm)
  • Handle to Bottom Hook: 24-3/4 inches (628.7mm)
  • Trimmable Top: 6 inches (152.4mm)
  • Trimmable Bottom: 7 inches (177.8mm)
  • Door Height: 77-78 inches

Stamped With

  • LF 2253 (lower faceplate)
  • UF 2254 (upper faceplate)

Notes

  • Top and bottom extensions are taken apart for shipping
  • Part number 8745225381 refers to the complete MPL with lower and upper extensions

Fill out our MPL form or call us to ensure accurate purchasing and correct fit.

Frequently Asked Questions

What door height is this multipoint lock designed for?

This Amesbury P2000 multipoint lock is designed for short doors measuring 77 to 78 inches in height.

Why does this lock ship disassembled?

The top and bottom extensions are taken apart for shipping to prevent damage during transit. You will need to reassemble them during installation.

Can I trim this lock to fit my door?

Yes, the lock has 6 inches of trimmable length at the top and 7 inches at the bottom to accommodate slight variations in door height.
